Shanghai Davey Machinery Co., Ltd. >> Screw Air Compressor with 48m3/Min 8bar

Screw Air Compressor with 48m3/Min 8bar

Name: Screw Air Compressor with 48m3/Min 8bar
Brand: china-manufacturer-directory.com
SKU: 671265825
Availability: InStock
Rating: 4.9 (142 reviews)

Supplier:	Shanghai Davey Machinery Co., Ltd.
Price:	US $ 45000-45900/Piece
Min Order:	1Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SC315W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Screw
Performance:	Low Noise
Drive Mode:	Electric
Power Source:	AC Power
Configuration:	Stationary
Material:	Cast Iron
Piston Type:	Closed
Lubrication Style:	Lubricated
Application:	Low Back Pressure Type
Mute:	Mute

Product Description

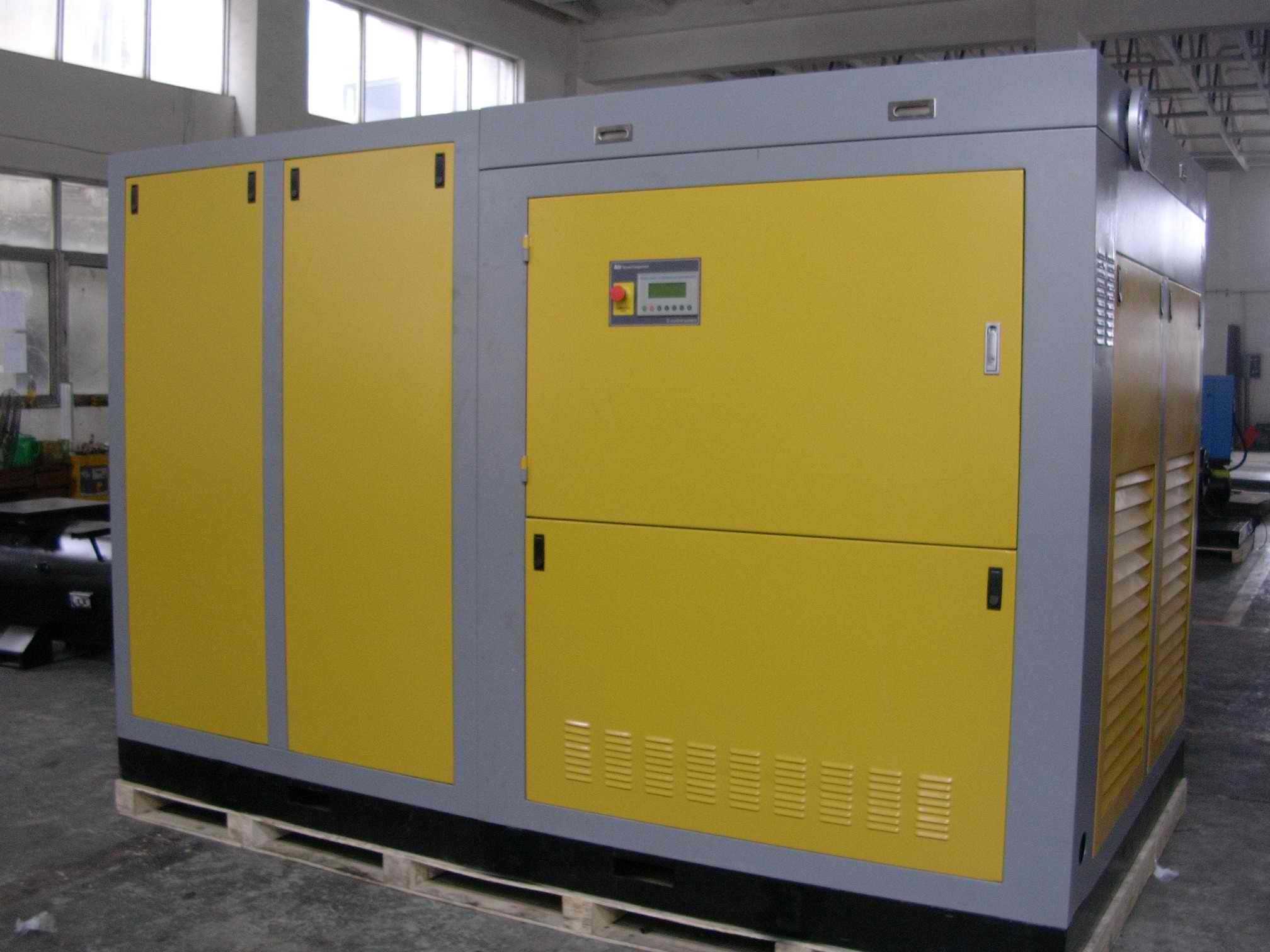

315kw, air cooling, rotary screw compressor
Type: SC-315W
Specification:
-Model: SC315A, oil injected screw compressor
-Free air delivery: 48 m3/min, 1700 cfm
-Rated operating pressure: 7-8 bar
-Main motor: 315KW, TEFC/IP54/1.15 S. F/2980 RPM
-Power supply: 380-415V/50Hz/3pH
-Rotor speed: 2980 RPM
-Control type: Microprocessor PLC
-Driven type: Direct by Coupling
-Cooling type: Water cooling
-Residual oil content: Less than 3 ppm
-Oil volume: 200 liters
-Delivery air temp: Less than 40 degree
-Operating condition: Less than 45 degree of ambient temp
-Noise level: Less than 85 dB(A)
-Dimension: 3000mm*2000mm*2100mm
-Weight: 5000 kg
-Exhaust hole: DN80
-Water consume: 30 ton/hr

Famous brand and original air end is equipped with big diameter rotors hence it is of low rotate speed and high reliability. Multi-stages oil separation system makes air have low oil amount. Low speed centrifugal fanner makes cooling air amount big and noise low. Super cooling period design meets with the requirement under the environments of high temperature. There tare two cooling methods for every model, namely air-cooled and water-cooled.

DMC screw compressor design and produce is based on Italy Termomeccanica Group innovative technology; Products range include air screw compressor and gas screw compressor.

	Pressure		F. A. D		Motor
Model	Bar	Psi	L/min	CFM	Kw.	Hp
SC18	7	100	3, 000	106	18.5	25
SC22	7	100	3, 600	127	22	30
SC30	7	100	5, 000	177	30	40
SC37	7	100	6, 700	237	37	50
SC45	7	100	7, 800	276	45	60
SC55	7	100	10, 500	371	55	75
SC75	7	100	13, 500	477	75	100
SC90	7	100	16, 200	572	90	125
SC110	7	100	20, 000	707	110	150
SC132	7	100	23, 500	830	132	175
SC160	7	100	28, 000	989	160	220
SC200	7	100	33, 000	1, 166	200	270
SC250	7	100	42, 000	1, 484	250	340

DMC---A leading air & CNG compressor manufacturer for over 10 years

---ISO 9001 and CE certified

---Global competitive price and guaranty

---High quality integrated with Italy technology

---Customer over 20 countries in the world

DMC is a manufacturer in air compressor and CNG compressor industry. We have over 10 years experience in export business. Valued customers are at US Canada Mexico Argentine Peru Colombia Germany Italy Finland Poland Australia etc. Complete lines units with CE marked and ISO 9001.

European original screw airend and valve are be used to guarantee quality.

Our products line include:

--compact silent designed series PACK (5-20HP)

--3 in 1 compressor with dryer and air receiver series PACK-TA (5-20HP)

--stationary series SC (25-350HP)

--frequency variable speed drive series VSC (25-180HP)

--diesel portable series DSC (80-330HP)

--CNG gas compressor

Inherit excellence traditions of European compressor design, the core components of DMC compressor, such as screw air end and control valve, are all from European company. The air compressor products has quality performance of reliability, save energy, silent to meet customers more higher demand to compress air, reduce used cost and save money for customers instantly.

100% of our compressors are tested by using the latest inspection equipment and techniques, to assure the highest degree of product manufacturing quality and mechanical reliability.
