Product Specifications
| Prod Model: |
WRNT-02/WRET-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Wrnt-02( K Type); Wret-02( E Type) |
| Temperature Range: |
0-400 Centigrade |
| Protection Tube: |
Stainless Steel 6mm( Diameter) |
| Screw Thread Specification: |
M6*1.5 |
| Usage: |
Thermal Sensor |
| Protecion Class: |
IP67 |
Product Description

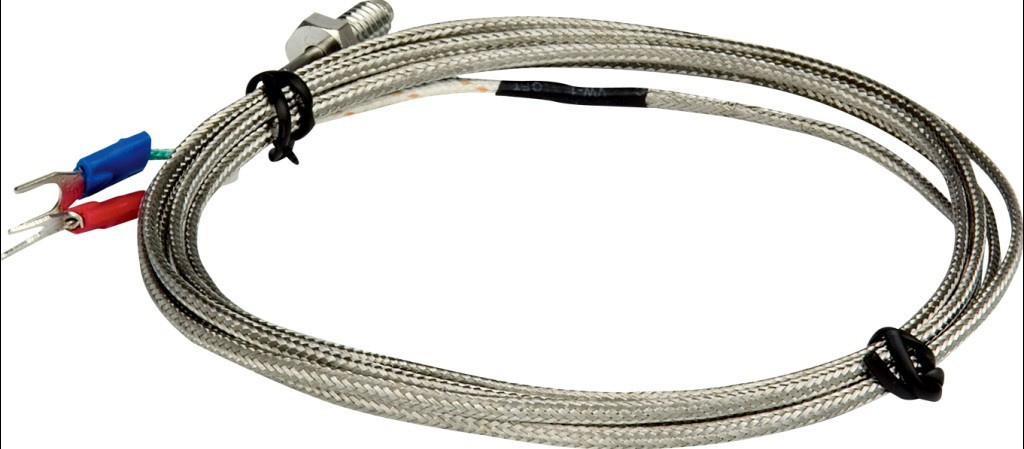

This is a screw typw of thermocouple sensor for measuring temperature.
Thermocouple and resistance thermometry are both sensors which measure temperature.
| Product name | Screw Type |
| Model | WRNT-02(K type thermocouple) |
| WRET-02(E type thermocouple) |
| Measuring range | 0-400ºC |
| Protection tube | Stainless steel Ø6mm |
| Screw specification | M6*1.5 |
| Material | K type:nickel-chromium-nisiloy |
| E type: nickel-chromium-constantan |
They are usually used matching with some secondary display meters. They can directly measure the temperate ( ranges from minus 200 centigrade to 1800 centigrade ) of various of liquids, steam, gas and the surface of the solid during the production process. They are widely used in the field of industry, agriculture, chemical and other automated temperature controlling.
Screw Type Thermocouple(WRNT-02/WRET-02 ):
Model: WRNT-02( K Type); WRET-02( E Type)
Temperature Range: 0-400 Centigrade
Protection Tube Material: Stainless Steel 6mm( diameter)
Screw Thread Specification: M6*1.5
Material: K type: Nickel-chromium-silicon
E type: Nickel-chromium-constantan
