Anhui Safe Electronics Co., Ltd. >> Self-Heating Cbb65 Capacitor

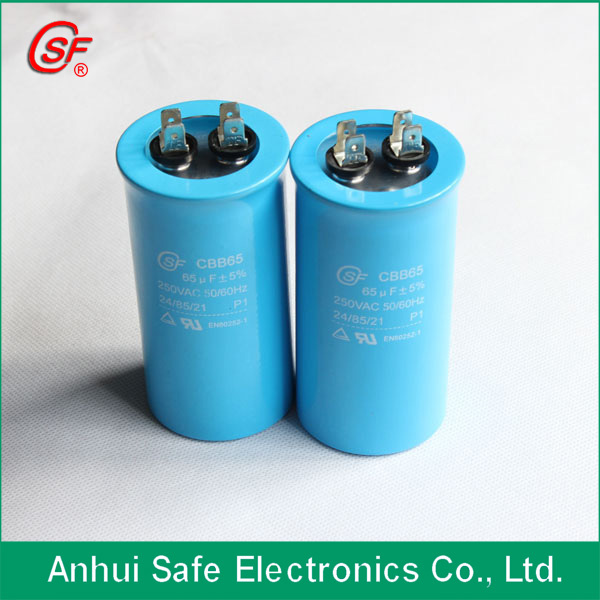

Self-Heating Cbb65 Capacitor

Name: Self-Heating Cbb65 Capacitor
Brand: China-Manufacturer-Directory.com
SKU: 683317835
Availability: InStock
Rating: 4.5 (21 reviews)

Supplier:	Anhui Safe Electronics Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CBB65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacitance:	1-120UF
Rated Voltage:	220-630VAC
Operating Temperature:	40/85/21 or 40/70/21
Capacitor Deviation:	5%
Class Of Safety Protection:	P0, P2
Shape:	Cylinder or Ellipse
Size:	Available on Request
Type:	Polypropylene Capacitor
Package Type:	Through Hole
Application:	Automobile
Usage:	Sh Capacitor
Structure:	Cbb65 Capacitor
Electrolyte:	Oil

Product Description

Self-Protected CBB65 Capacitor

Air conditioner capacitor,oil capacitor, motor capacitor,IGBT capacitor,CBB65 capacitor,motor run capacitor,aluminum case capacitor,anti-explosion capacitor ,inverter welding capacitor, fan capacitor, CBB61 capacitor.
Special groove safety design
High protected
The CBB65 capacitors are used for washing machine, air compressor etc, having characteristic of small dimension high capacitance, low dissipation factor, fine self-healing character, low temperature rise and safety. The capacitors are provided with inner pressure rupture-proof mechanism. The case is used in flame retardant high-quality engineering plastic or aluminium.,
1. Safe with highest degree protection devices
There's a special safety device of power cut system by stretch away the weak part of alum. Foil to avoid capacitor explosure.
2. Excellent Reliability:
High performance Self Healing metalized polypropylene film.
Refine metalized film winding (Switzerland automatic winding machine, Brand Metar)
Average and gradually metal spray controlled by computer. (Italy, Metco)
Each capacitor's technique data is selected and managed by computerized function
Assignment machine. (From Switzerland)
3. High compact:
Save space and light, easy to handle for attachment
4. Durable:
Each capacitor core has been heat set.
Well sealed (The capping machine is from Italy)
5. Very low loss:
The adaption of special combined electrode material and intensify insulating material makes
Little loss of capacitance during working.

For more information,you can contact and view our website:
www.capacitorfilm.com

Series	CSF-CBB65
Rated Voltage Range	220-630 VAC
Frequency	50/60 Hz.
CapacitanceRange	1-100 µ F
Dielectric	Metalized Polypropylene film
Tolerance	± 5%
Over Voltage Tolerance	1.1 UN (8 hours max. in every 24 hours)
	1.15 UN (30 minutes in every 24 hours)
	1.2 UN (5 minutes in every 24 hours)
	1.3 UN (1 minutes in every 24 hours)
Over Current Tolerance	30% permanently
Insulation Resistance	≤ 3000s
Loss Tangent	≤ 0.002(50HZ-100HZ)
Voltage Test	Between terminals: 1.75 Un for 2 seconds.
Voltage Test	Between terminals to container: 2000VAC for 60 seconds
Safety System	Self protection device
Case Material	Alum.
Execution	AC motor of air compressor, washing machine, refrigerator
Standard	CE, GB3667

Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.

The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.

With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.

Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.

"good faith, serving the whole world" is our principle.
