Product Specifications
| Prod Model: |
JCP-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
JIS |
Product Description

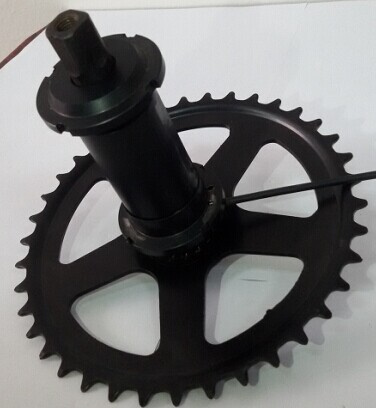

. Model JCP-C (Pedaling torque induced by both stroke sides (L/R).
There is a torsion spring in the torque sensor to connect the chain wheel and crank. The sides of torsion spring have two devices to check the deformation. When a moment of force act on the torsion spring, the torsion spring are deformed, two devices check the deformation, to calculate the moment of force.
Effective range: 6-30N. M, MAX: 250N. M
Key Features
Fit for 3 pieces of chain wheels
Fit for 68mm shell
Patented design
Zero start (Instant response makes start-up easier)
6P Waterproof socket
The platform is built to a modular design, with good reusability. Distinctive modularity, faster installation design, dismantles carry and charge.
Specifications
CL(Chain line): 45mm, 50mm, 55mm, Fit for 3 pieces of chain wheels
Effective range: 6-30N. M, MAX: 250N. M
The system of Torque Intelligent Sensor has signal acquisition and signal processing module. I. E. 4 Hall sensors communicate for torque measurement from Bottom Bracket sent this signal to PAS module, PAS module process the signal to analog voltage signal. Controller receives the analog voltage signal to control motor. Therefore, electric bicycle can be run with Torque Intelligent Sensor.
Suzhou Victory Sincerity Co., Ltd is located in Suzhou, We undertake to develop, design and produce the components of e-bikes, mainly about torque intelligent sensor system and relevant parts. Our company has a group of experienced experts at designing and developing various e-bikes. After six years' research and development, our company has developed torque intelligent sensor system which conforms to the European standard ---EN 15194, Japanese JIS standard. It is the national patent product. Up to now, dozens of whole-bike companies have chosen and tried our products and given us positive comments. It is the necessary part of PedElec bikes mainly exported to Europe, America and Japan. It has contributed much to enhancing the e-bike industry, upgrading the e-bikes, saving energy and protecting environment.
"Leading by technology, Developing is life, Integrity as our basis". We ceaselessly innovate with new styles based on good ideas, while deliver with reasonable price and best service. We will focus on our customers' needs. We hope to cooperate with you to create more economic benefits and social benefits.
