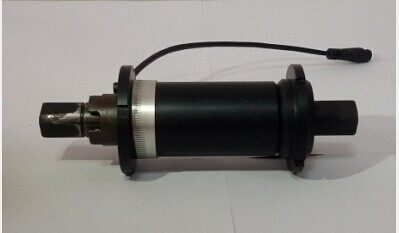

Torque Sensor

Name: Torque Sensor
Brand: China-Manufacturer-Directory.com
SKU: 745670265
Availability: InStock
Rating: 4.6 (121 reviews)

Supplier:	Suzhou Victory Sincerity Co., Ltd.
Price:	US $ 65-74/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	JCP-C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	JIS

Product Description

Product Data :

electric bike kit Motor	36V/24V front high speed brushless geared hub motor
	250W motor for EU, 200W for AU, 350W for US
	For V brake, disc or roller brake
electric bike kit Rim	28"(700C), 26" or 20"
	alloy double wall
	silvery and black is available
electric bike kit Spoke	13G stainless spokes
electric bike kit Battery	36V/24V 10AH lithium battery
	Seat post battery
electric bike kit Charger	AC 110V-240V 2 Amps smart charger
electric bike kit Charger Time	4-5 hours
electric bike kit Controller	Smart controller fit for FDM electric bicycle conversion kit
	Waterproof cables and connectors
	For one cable system
electric bike kit Cables	One cable system 1 to 4
electric bike kit Displayer	790 displayer with front light function
electric bike kit Brake	brake sensor to cut off electric when brake
electric bike kit Thottle	thumb thottle (Optional)
electric bike kit PAS	1:1 pedal assistance system (Optional)
Electric bike kit Performance
electric bike kit Speed	25km/h for EU and AU, 32km/h for CA and US
electric bike kit Range	60-70 km with PAS (36V 10AH)
electric bike kit G.W.	12.5kgs/pc
electric bike kit Packing Size	806520cm for700C(28"),736020cm for 26",534520cm for 20"
electric bike kit Capacity	260pcs/20FT; 780pcs/40HQ

1.National patent product, with a standard length of bottom bracket (68 mm)

2.Simple assembly, good stealthiness , suitable for single speed gear disk and variable speed gear disk.

3. Linear Zero Start : it can start instantly according to the size of the one pedaled on the starting force,and according to the size of the human, Strength size is linear output ratio.

4.Good follow-up:disk can collect the signal nearly 100 times rotation a circle, the data quantity is big. and the output response in a timely manner, so the signals of torque are smooth, wide linear range and the power off timely when it stop pedaled, total time are completed in 200 ms.

5. Reliability: the structure is simple, less number of parts. Anti-interference ability:can work in turbid water.

6. Parameters of Torque Sensor

Rated Voltage 5V±0.2V

Temperature Range -20ºC~60ºC

Signal Linear zero start

Working Voltage 5V

Humidity 10%~90%RH
