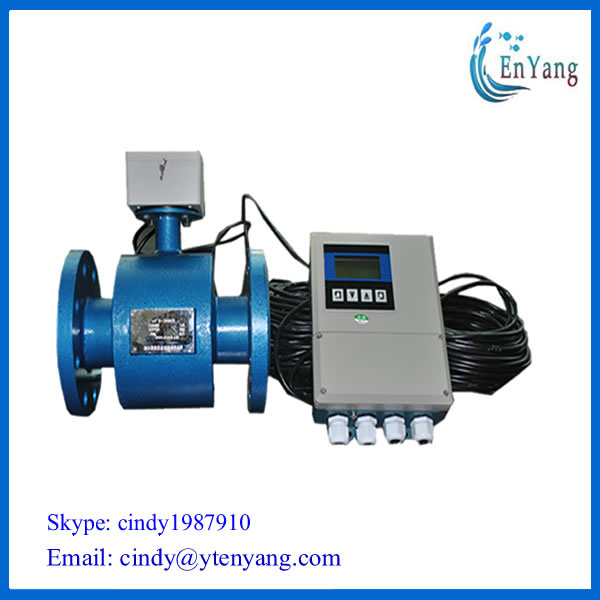

Sewage Electromagnetic Flow Meter with Modbus Protocol

Product Specifications

Prod Model:	WFD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium Flow Rate:	0-10m/S or Custom Settings
Medium:	Conductive Liquid
Communication:	RS485 Protocol
Output Signal:	4-20macurrent,Pulse, Warning Beyond Upper and Lowe
Category Of Shielding:	IP65, IP68
Rated Boltage:	1.0MPa, 1.6MPa, 4MPa
Temperature Of Medium:	Chloroprene Rubber:-10-60c: PTFE:-10-120c
Converter Type:	Integral Type, Split Type, Insertion Type, Lamp Ty
Lining Material:	Polyurethane Rubber,F4(PTFE) Polytetrafluoroethyle
Flange:	Dn10-Dn3200
Accuracy:	?à0.2-0.5%
Main Application:	Wastewater
Sensor:	Tube/Flange
Type:	Electromagnetic Flow Meter
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles
Size:	Dn15-Dn3200

Product Description

Summary
    sewage electromagnetic flow meter  with rs485 protocol,as the product of long-term
experience in the  field of flow nstrument,has the functionsof rapid response and output
noise elimination,Its design and quality control systemhave guaranteed  the high accuracy
and  reliability  of the product,   and the application of lining makes the electromagnetic flow meter applied more widely.

Features
1.The stability of flux measurement has been improved
2.Rapid response and high stability, even for highly concentrated serous fluid and fluid with low conductivity.
3.Electrode structure with high reliability
4.Lining and built-in grounding electrode are both applicable.
5.Diameter from 10mm to 3200mm
6.Both AC and DC power supplies are available.
7.Multi-functional Intelligent Converter.
8.When in power failure,EEPROM may protect the set parameters and accumulated values.
9.High-definition LCD Backlight Display.

Parameter

Aperture	10-3200
Excitation System	Bidirectional Constant Flow Squarewave Excitation
Installation Form	Integral or split
Lining	Chloroprene Rubber,PTFE
Material of Electrode	316L,HC,HB,Titanium,Tantalum,Platiniridium
Grounding	Built-in Grounding Electrode
Medium	Conductive Liquid
Grade of Accuracy	0.5,  1.0
Flow Velocity	≤15m/s
Flange of Pipe Connection	GB9119-2000 or GB9115-2000
Pipe connection	Flange Connection
Temperature of Medium	Chloroprene Rubber:-10-60ºC: PTFE:-10-120ºC
Rated Boltage	1.0MPa,  1.6MPa,  4MPa
Cable Interface	G1/2 Female Thread
Category of Shielding	IP65, IP68
Output Signal	4-20mACurrent,Pulse, Warning beyond upper and lower limits
Communication	RS485 Protocol
Display of Monitor	Transient Flow,Percentage,Flow Velocity,Forward and Reverse Integrated Flux and Total Integrated Flux
Power Supply	220VAC, 24VDC
Type of Application	General Type, Waterproof Type

Application area
1. Drinking water supply, water supply, reservoir and pumping station etc.
2. Chemical acid, lye, conductive solution, cooling fluid, additives etc.
3. Drink water, beer, wine, alcohol, milk, yogurt, fruit juice, syrup, blood etc.
4. Refrigeration / air conditioning and refrigeration thermal measurement, or heat energy.
5. Sewage, industrial sewage discharge, sewage etc.
6.Control of metal industrial pump,cooling water and the flow of water.
7. The textile industry of water, pigments, chemicals, bleaching chemicals etc


Order sheet

Name	Specification code	Explanation
Instrument type		Intelligent electromagnetic flow meter
Diameter code	xxx	For example:100 represents DN100
Electrode form	1	Standard stationary type
Electrode material	0	Stainless steel(316L)
	1	Platinum Pt
	2	Hastelloy B(HB)
	3	Tantalum Ta
	4	Titanium Ti
	5	Hastelloy C(HC)
Lining material	3	Chloroprene rubber
	4	Polyurethane rubber
	5	F4(PTFE) polytetrafluoroethylene
	6	F46(FEP)polyperfluoroethylene- propylene
Rated pressure(MPa)	4.0	DN10-80
	1.6	DN100-150
	1.0	DN200-1000
	0.6	DN1100-2000
	0.25	DN2200
Operating temperature	E	<80ºC
	H	<120ºC
Grounding		Built-in grounding electrode
Grade of protection	0	IP65
	1	IP68
Converter type	0	Integral type
	1	Split type
Case material	0	Carbon steel
	1	Stainless steel
Instrument flange	0	Carbon steel
	1	Stainless steel
Installing timing flange	0	Withou
	1	With
Power supply source	0	220VAC
	1	24VDC
Instrument range	xxx	For example:(200)represents maximum fux corresponding to 20mA
		Flow :200mm³/h
