SFP Series Optical Module (BD SFP-1.25G-40 )
Product Specifications
| Prod Model: |
BD SFP-1.25G-40 |
Product Description

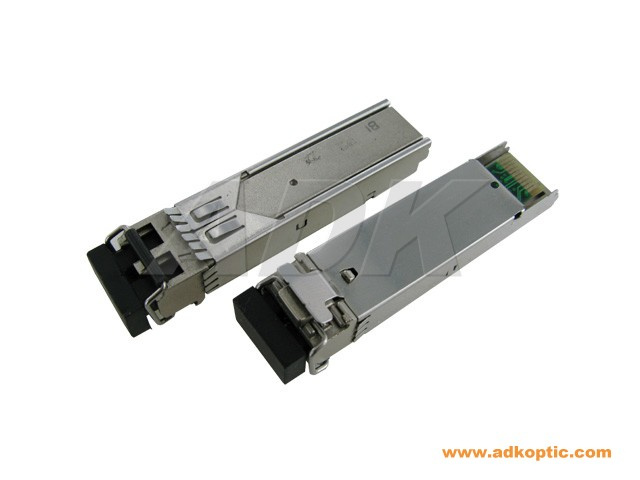

SFP Series Optical Module(BD SFP-1.25G-40 ), SM, single fiber, Bi-Di, 1310T/1550R and 1310R/1550T, 1.25G, 40km, single LC connector.
Features
1. Operating data rate up to 155M/622M/1.25~4.25Gbps
2.1310 nm FP LD Transmitter
1550 nm DFB LD Transmitter
3. Distance up to 10~120km
4. Single 3.3V Power supply and TTL Logic Interface
5. Duplex/simplex LC Connector Interface
6. Hot pluggable
7. Operating case temperature
Standard: 0~+70° C; Industrial: -40~+85° C
8. Compliant with MSA SFP specification
9. Digital diagnostic monitor interface
Compatible with SFF-8472 APD High Sensitivity Receiver
| Absolute Maximum Ratings |
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | VCC | -0.5 | 3.6 | V |
| Operating Temperature | TOP | -40 | 85 | °C |
| Recommended Operating Conditions |
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | VCC | 3.1 | 3.5 | V |
| Operating Temperature | TOP | 0 | 75 | °C |
| Optical characteristics |
| Parameter | Symbol | Min | Typical | Max | Unit |
| Transmitter |
| Optical output | P0 | 1 | -3 | 3 | - | dBm |
| 2 | -8 | -3 | - |
| Extinction ratio | ER | 9 | - | - | dB |
| Optical wavelength | λ | 1 * | 1270 | 1310 | 1340 | nm |
| 2 * | 1530 | 1550 | 1570 |
| Spectral width | Δλ | FP | - | - | 4 | nm |
| DFB | - | - | 1 |
| Rise time | Tr | - | - | 260 | ps |
| Fall time | Tf | - | - | 260 | ps |
| Transmitter output eye | compliant with Eye Mask Defined in 802.3z standard |
| Receiver |
| Optical Sensitivity | Sen | 1 * | - | - | -22 | dBm |
| 2 * | - | - | -22 |
| Input power-maximum | PMAX | 0 | - | - | dBm |
| Receiver wavelength | λ | 1 * | 1500 | - | 1600 | nm |
| 2 * | 1260 | - | 1360 |
| Signal detect deasserted | PD | -38 | - | - | dBm |
| Signal detect asserted | PA | - | - | -22 | dBm |
| | | | | | | | | | | |
| Optical Return Loss | RL | 15 | - | - | dB |
| Optical isolation | ISO | - | - | -40 | dB |
| Electrical characteristics |
| Parameter | Symbol | Min | Typical | Max | Unit |
| Data rate (NRZ) | B | - | 1250 | - | Mb/s |
| | 622 | |
| | 155 | |
| Supply voltage | VCCT | 3.1 | 3.3 | 3.6 | V |
| Supply current | ICCT | - | 70 | 130 | mA |
| Input HIGH Voltage | VIH | VCCT-1.165 | - | VCCT-0.700 | V |
| Input LOW Voltage | VIL | VCCT-1.890 | - | VCCT-1.475 | V |
| Transmitter Enable voltage | VEN | - | - | 0.8 | V |
| Transmitter Disable voltage | VD | 2 | - | - | V |
| Receiver |
| Data rate (NRZ) | B | - | 1250 | - | Mb/s |
| | 622 | |
| | 155 | |
| Supply voltage | VCCR | 3.1 | 3.3 | 3.6 | V |
| Supply current | ICCR | - | 100 | 150 | mA |
| Data Output High | VOH | VCCR-1.025 | - | VCCR-0.880 | V |
| Data Output LOW | VOL | VCCR-1.810 | - | VCCR-1.620 | V |
| LOS Low Voltage | VLOUT | - | - | 0.8 | V |
| LOS High Voltage | VHOUT | 2 | - | - | V |
