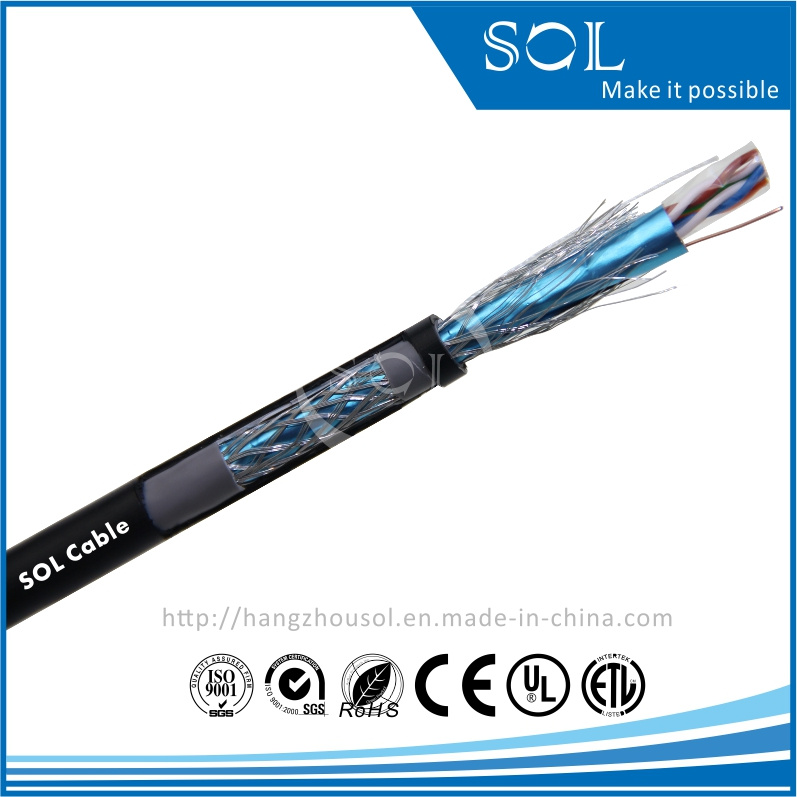

SFTP Double Shielded Double Jacket 4P Cat5e Computer Cable

Name: SFTP Double Shielded Double Jacket 4P Cat5e Computer Cable
Brand: China-Manufacturer-Directory.com
SKU: 703503372
Availability: InStock
Rating: 5 (92 reviews)

Supplier:	Hangzhou SOL Information Technology Co., Ltd.
Price:	US $ 0.15/Meter
Min Order:	10000/Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SFTP Cat5e
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	Bare Solid Copper
Insulation:	HDPE
Shield:	Al
Drain Wire:	Bc
Rip Cord:	Optional
Jacket:	PVC or Lszh
Application:	LAN Cable
Conductor Material:	Copper
Cover Material:	PE
Type:	Cat 5
Certification:	SGS
Model:	SFTP Cat5e
Brand:	Sol

Product Description

Lan Cable Series:

SFTP Cat5e
24AWG 4 Pairs Twisted

SFTP cat5e	No.	STRUCTURE	MATERIAL
	1	Conductor	Bare solid copper
	2	Insulation	Colourcoded PE
	3	Drain wire	BC/TC
	4	Polyester	Optional
	5	Rip cord	Optional
	6	1st Shield	PET/AL
	7	2nd Shield	BC/TC/AL
	8	Inner Jacket	Lead free PVC or LSZH
	9	outer Jacket	Lead free PVC or LSZH
Description	Flammability grade		CMX, CM, CMG, CMR
	Rated temperature		60°C , 75°C, 90°C
	Reference Standard		UL444, UL1581

Note: Other specification can be made upon customer requirements.

ELECTRICAL CHARACTERISTICS
Frequency MHZ	Impedance Ohm	RLdB	Attenuation dB/l00m	Next dB	Next power	LFXTdB	PSELFEXTdB
Frequency MHZ	Impedance Ohm	RLdB	Attenuation dB/l00m	Next dB	Sum dB	LFXTdB	PSELFEXTdB
1.0	100±15	20.0	2.0	65.3	62.3	63.8	60.8
4.0	100±15	23.0	4.1	56.3	53.3	51.8	48.8
10.0	100±15	25.0	6.5	50.3	47.3	43.8	40.8
16.0	100±15	25.0	8.2	47.2	44.2	39.7	36.7
20.0	100±15	25.0	9.2	45.8	42.8	37.8	34.8
31.25	100±15	23.6	11.7	42.9	39.9	33.9	30.9
62.50	100±15	21.5	17.0	38.4	35.4	27.8	24.9
100.0	100±15	20.1	22.0	35.3	32.3	23.8	20.8

Application:
used as work-station oution to the FD/IDF and other horizontal cabling,
supporting:
TP-PMD Audio, Integrated service digital network(ISDN),
ATM, 100Base-TX, 100VG-AnyLAN,
1000Base-T(Gigabit Ethernet), Fast Ethernet ETC.

Packing:
100m/200m per Coil/roll,
200m/250m per Reel,
500ft/1000ft per Rolling Reel,
305m/500m per wooden Drum.

Delivery Day: 20days after receiving the T/T payment.

Port: Shanghai Port, Ningbo Port.

We specialize in cable & wires 15years!

HangZhou SOL Information Technology Co., Ltd. is one of a professional cable manufacturer & trading company, located in HangZhou ZheJiang, the largest cable production base in China. There is the more competitive raw material, excellent technical personnels & the complete industry chain.

The location is closed to HangZhou International airport, and NingBo or Shanghai international port.

At first it was founded in HongKong in 2000 as a international agency procurement super expert office, we enjoys a high reputation in the international cable industry since past 15years. Also we win the honor Outstanding Leader from Alibaba.

We will be glad to stand with you, support you & win our mutual future.

SOL Cable & wires always your best choose!

Our specifications for your kindly reference:

LAN Cable Cat5E UTP/FTP, SFTP, CAT6

Coaxial Cable RG6, RG59, RG11, 500;

With UL, CE & ISO Cert.

Telephone wire, Speaker cable, Electrical wire

Composite cable & accessories

Optical Fiber Cable GYXTY; GYXTA; GYSTY; GYSTS; GYXTY53; ADSS; GYXTC8Y; GYXTC8S;

GYDXTW; DYDSTS; GYSTY53; GYSTA53; GYXTA53; 2-12cores; 24cores...
