Product Specifications
Prod Model: |
SG10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Delivery Term: |
20 Days(FOB) |
Port: |
Shanghai |
Application: |
Power |
Phase: |
Three |
Coil: |
Core-type Transformer |
Cooling Method: |
Dry-type Transformer |
Winding Type: |
Two-winding Transformer |
Brand: |
Yl |
Product Description

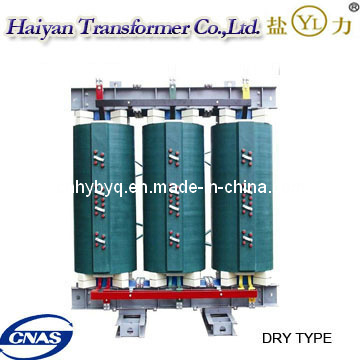

Distribution Transformer
Rated voltage6, 6.3, 10, 10.5, 11 5%(or 2x2.5%)/ 0.4KV
Connection symbol of Yyn0 or Dyn11
Type | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Impedance Voltage (%) | Total Weight (Kg) | Dimension (mm) |
Length | Width | Height | Track Spacing | Track Spacing |
SG10-100/10 | 460 | 1490 | 2.0 | 4 | 700 | 940 | 650 | 1120 | 550 | 400 |
SG10-125/10 | 540 | 1750 | 1.8 | 4 | 810 | 960 | 650 | 1140 | 550 | 400 |
SG10-160/10 | 650 | 2020 | 1.8 | 4 | 950 | 980 | 650 | 1160 | 550 | 400 |
SG10-200/10 | 760 | 2400 | 1.8 | 4 | 1080 | 1100 | 650 | 1250 | 550 | 550 |
SG10-250/10 | 900 | 2810 | 1.8 | 4 | 1250 | 1120 | 760 | 1320 | 660 | 550 |
SG10-315/10 | 1080 | 3330 | 1.8 | 4 | 1370 | 1190 | 760 | 1410 | 660 | 550 |
SG10-400/10 | 1260 | 4020 | 1.3 | 4 | 1590 | 1240 | 760 | 1530 | 660 | 550 |
SG10-500/10 | 1490 | 5020 | 1.3 | 4 | 1870 | 1300 | 760 | 1610 | 660 | 660 |
SG10-630/10 | 1710 | 5910 | 1.3 | 6 | 2120 | 1330 | 920 | 1660 | 820 | 660 |
SG10-800/10 | 2120 | 6910 | 1.3 | 6 | 2330 | 1450 | 920 | 1680 | 820 | 660 |
SG10-1000/10 | 2480 | 8050 | 1.3 | 6 | 2930 | 1500 | 920 | 1770 | 820 | 660 |
SG10-1250/10 | 2980 | 9450 | 1.3 | 6 | 3530 | 1570 | 920 | 1850 | 820 | 820 |
SG10-1600/10 | 3420 | 11290 | 1.3 | 6 | 4160 | 1660 | 1170 | 1970 | 1070 | 820 |
SG10-2000/10 | 4150 | 13230 | 1.3 | 6 | 4800 | 1700 | 1170 | 2130 | 1070 | 820 |
Haiyan Transformer Co., Ltd. is a transformer manufacturer with more than 30 years' experience, it occupies 35, 000 sqm, 25, 000 sqm factory building, with beautiful South-North lake tourism area in its north, and qinshan nuclear power station in its west. It is located one hour drive from the Economic Circle of the Yangtze River delta, with convenient transportation. We have fixed assets of 65 million, more than 150 employees, 11 senior engineer and 38 advanced technicians. The corporation owns high-tech equipments with a whole test, experiment chain, it has passed ISO9001 Quality Management System Certification.
Our products is being sold to all over China and also Africa, Asia and middle south America. The key products are Electronic Power Transformers below 35KV: SH15 amorphous alloy core\S11\S11-M*R\S11-M\S9 and S9-M model 10KV distribution transformer, S9-B shockproof transformer, SC(B)9\SG10 dry type transformer, 10KV type SZ9 model regulating transformer, SZ9 type 35KV regulating electronic power transformer, furnace transformer and rectifying transformer. The burglar proof transformer that we design and develop by ourselves, which has obtained national patent has been warmly accepted by the market.
We have always been holding our management concept: Humanism, regarding science, pursuing the best. We will be creating our splendid future with full enthusiasm and confidence while facing competition. Our CEO Chenglin Shi together with all our staff welcome you to Haiyan Transformer Co., Ltd. For visiting, negotiation and cooperation!
