Guangdong Yingben Electric Company Limited >> Sgb11 H Class Dry Type Distribution Power Transformer

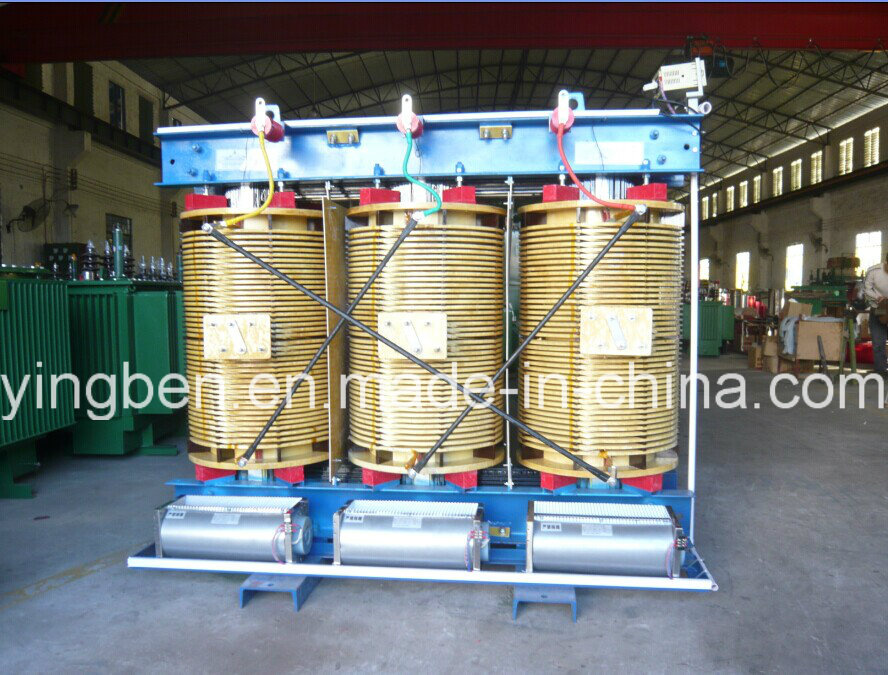

Sgb11 H Class Dry Type Distribution Power Transformer

Name: Sgb11 H Class Dry Type Distribution Power Transformer
Brand: China-Manufacturer-Directory.com
SKU: 730332045
Availability: InStock
Rating: 4.9 (72 reviews)

Supplier:	Guangdong Yingben Electric Company Limited
Price:	US $ 3000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	SGBZ11-100-2500KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Capacity:	100-2500
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Application:	Power
Brand:	Yingben

Product Description

H Level Insulated SGB SeriesThree Phase Dry Type Transformer Brief Description: Capacity 100kva-2500kva Rated Voltage(HV): 6kv-12kv,12kv-35kv Rated Voltage(LV): 0.4kv Connection Method : Yyn0, Dyn11 Insulation level H-Level(180C) Material : Toroidal Coil, 100%Copper or Aluminum, Steel Plated paper Usage:Substation,Subway,Buildings,Airports, Stations,Hospitals, Power Plants, Shopping Centers Advantage of ours:Good qulity With 120Cheavy load &IP23 ANY QUESTION PLS FEEL FREE CONTACT US!! WE WILL DO OUR BEST FOR YOU!! www.yingben.com http://yingben.en.made-in-china.com

rated capacity ( KVA )	Rated voltage( KV)		Join groups label	no-load loss (W)	load loss (W)	no-load current (%)	impedance voltage (%)	Overall Dimensions a×b×h	gauge crosswise×lengthways	all up (kg)
rated capacity ( KVA )	high pressure	low pressure	Join groups label	no-load loss (W)	load loss (W)	no-load current (%)	impedance voltage (%)	Overall Dimensions a×b×h	gauge crosswise×lengthways	all up (kg)
100				400	1690	1.7	4	1280610995	550*550	630
160				540	2280	1.5		136010001150	660*940	800
200				620	2710	1.3		139010001170	660*940	970
250				720	2960	1.3		143010001190	660*940	1140
315				800	3730	1.1		143010001275	660*940	1310
400				980	4280	1.1		148010001300	660*940	1610
500	11 10.5 10 6.3 6		Yyno or Dyn11	1160	5230	1.1		156010001385	820*1040	1850
630				1300	6400	0.9	6	171011001345	820*1040	2060
800				1520	7460	0.9		173511001485	820*1040	2410
1000		0.4		1770	8760	0.9		183011001540	820*1040	2910
1250				2090	10370	0.9		187011001715	820*1040	3330
1600				2450	12580	0.9		199011001850	820*1040	4070
2000				3050	15560	0.7		210012501915	1070*1070	4780
2500				3600	18450	0.7		221014001980	1070*1070	5340

Our factory found in 2004, located in Foshan GuangDong Province of Mainland China, with buliding area over 10000 square meter. Specialize in producing all kinds of Power transformer. Such as resin insulation dry-type power transformer, oil immersed distribution transformer, three-phase wond core distribution transformers, Furnace Transformer, OLTC transformer, Combined European Type Transformer, Combined American Type Transformer and so on.
