Sheet Cutting Machine

Name: Sheet Cutting Machine
Brand: China-Manufacturer-Directory.com
SKU: 685087605
Availability: InStock
Rating: 5 (110 reviews)

Supplier:	Wuhan Lan-Sun Technology Co., Ltd.
Price:	US $ 2499/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZLQ-7
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System:	Hypertherm Start-2000 Wuhan LAN Sun-IV Lansun V
Working Mode:	Untouched Arc Striking
Interface:	USB
Power Supply:	Hypertherm Powermax1650 Kliby Fine Focus450 Chi
Plasma Generator Power:	65A 85A 120A 200A for Much Thickness Cutting
Material Cutting:	Steel Iron Cooper Aluminum Stainless Metal Sheet
Software Nesting:	Fastcam Intergnps Nesting Software
Cutting Gas:	Oxy& Acetylene/Propane
Certification:	CE&ISO
Transmit Way:	Taiwan Imported Ball Screw
Process Usage:	Metal-Cutting CNC Machine Tools
Performance Classification:	Economical CNC Machine Tools
Numerical Control:	NC
Movement Method:	CNC Cutting Machine
Control Method:	CNC Cutting Machine

Product Description

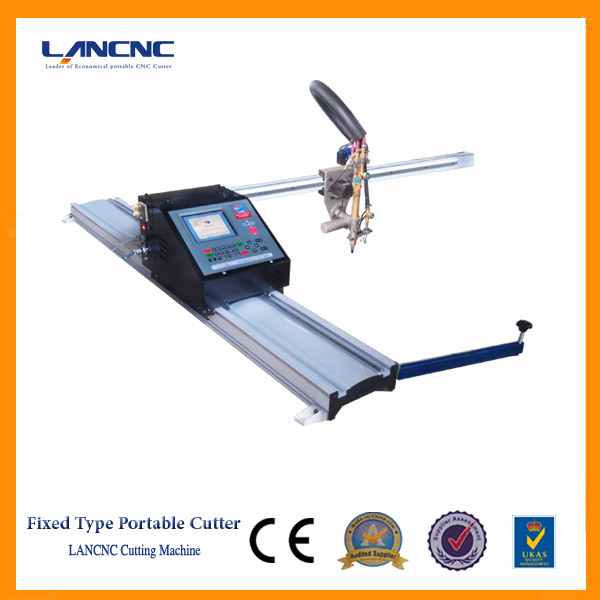

Sheet cutting machine

Features

Portable and lightweight. Its cross beam is flexible. It is small bodily movement type, can be put upon the metal plate to be cut, needn't fixed plant, operate easily.

Application

It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

Effective Cutting Width (X axis)	1.2m 1.5m
Effective Cutting Length (Y axis)	1.5m-3.0m( could be extended according to urser’ s demand)
Cutting Mode	Flame only/Plasma only/Flame and Plasma
Drive Mode	Single-side
Drive Method	Rack and pinion drive for X and Y axes
Flame Cutting Thickness	5-200mm
Plasma Cutting Thickness	1-60mm (according to the specification of plasma power source)
Cutting Speed	0-3500mm per minute
Moving Precision	0.01mm per step
Nesting Software(option)	INTERGNPS, FASTCAM
Power Supply	220V 50/60Hz 500-1500W
Cutting Gas	Acetylene/Propane
Plasma Gas	Pressed air/Oxygen/ N2
Marking Tool	Electric torch height controller for flame or plasma cutting.

Lansun specializes in researching, developping and selling ZLQ- series CNC cutting machines for 20 years. We have CNC portable, cantilever, gantry, table type and Pipe profile cutting machines.
Our mahcines are extremely easy to operate; With High rate of costs&very favourable price, our machines have been exported to Germany, England, Russia and all over the world!
