Shipyard Telephone with Broadcasting Loudspeaker (KNSP-08)
| Price: |
US $ 265-275/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |

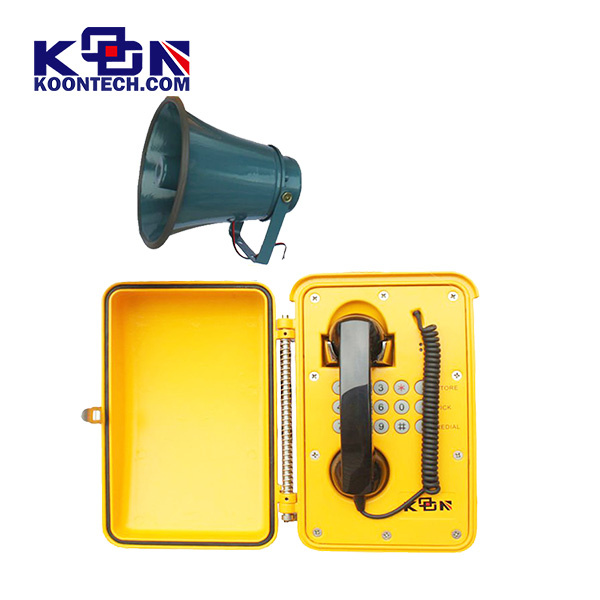

Shipyard Telephone with Broadcasting loudspeaker (KNSP-08)
Product Name: |
Loud speaking weatherproof phone(KNSP-08) |
Product model: |
KNSP-08LB |
size: |
320*205*120mm |
material: |
Aluminum alloy and SUS304 |
| introduction: |
Applications:
As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box
Railway, metro, ATM machines side, Tunnel, Port, Dock, Mines, Generation facilities...
A good ideal telephone for use in wet or corrosive atmospheres
Main features :
1. Robust aluminium alloy die-cast body, Vandal resistant and tamper-resistant hardware, simple installation.
2. Full keypad with memory, 10 button programmable speed-dial telephone
3. One calling button, One auto-dialing call button for emergency call.
4. Door cover: orient automatically and good self - closing, convenient for use.
5. Weather resistant to IP66 standard, service temperature range from -30 degree to +75 degree
6. Magnetic reed hook-switch
7. Robust AC cord, AC power supply from 110V~240V. Built in battery optional.
8. Lightening protection to ITU-T recommendation K.21
9. Hearing Aid compatible receiver, Noise canceling microphone.
10. Phone integrity wiring to enable the telephone system to check if the telephone unit is still operational.
11. Selectable 7 minute time out, to release the line if the handset is left off hook.
12. All of the components including keypad, buzzer, circuit board and cabinet are designed to be multi - layer waterproof and dust - proof which is up to Class III grade. The whole machine is up to national standard GB4208-93 IP 66.
13. Phone is provided with high stability, high anti-jamming capability standard to GB/T 15279-94.
14. Ring volume enlarging function: KNSP - 08 can solve this problem well with a 30W high voice loudspeaker connected. When used as call machine and under the condition of ring electricity being on, built-in transformer, enlarge the ring volume and give voice through the loudspeaker. At the same time it can auto count the ring times. After several times (the phone itself is set for 5times and this time adjustable), the phone can auto dial, the calling side can broadcast and its voice can spread to the workers nearby or other maintenance workers will easy to notice through loudspeaker.
15. Ingress Protection: GB4208-93 IP66 EMC: EN55022/EN55024/EN50121-3-2:2006 FCC
Packaging specifications
Machine size:320 *205 *120( mm )
Carton size:439 *277 *191( mm )
Packaging material: pearl cotton, carton
Gross weight:9KG
Net weight:7.2KG
VOIC OVER IP- SIP (Optional)
Connection type: RJ45 Socket inside sealed enclosure
Power supply: External 24V dc
Call set-up Protocol: Session Initiation Protocol(SIP)
Configuration: DHCP or STATIC IP address provisioning |
Autodial telephone,handset emergency telephone, handfree emergency telephone, handset free emergency telephone,
Auto dial emergency phone, Metal emergncy telephone,sos telephone,help telephone,GSM telephone,help point,help phone, outdoor emergency telephone,Gaitronics,emergency call point,metal help telephone, camera phonepublic telephone,loud speaking phone,bank service telephone, elevator phone,window intercome,LCD telephone,hotline phone,talk a phone,cleanroom telephone,viking,weatherproof phone,SIP phone,voip phone, call point outdoor weatherproof phone,solar energy help phone,tunnel telephone,2G,3G telephone,trackside telephone
| Prod Model: |
KNSP-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
320*205*120mm |
| Material: |
Aluminum Alloy |
| Defend Grade: |
GB 4208-93 IP 66 / IP67 |
| Weight: |
5.5kg |
| Cabinet: |
Aluminum Alloy Die |
| Handset: |
Yes |
| Phone Cover: |
Yes |
| Button: |
Optional |
| Version: |
PSTN, IP Poe, GSM |
| Wall Mounting: |
Yes |
| Certification: |
FCC |
| Support Network: |
Ethernet |
| Usage: |
Phone |
| Type: |
Wired |
| Information Content: |
Voice |
| Condition: |
New |
