Product Specifications
| Prod Model: |
TP- |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Liquid & Solid Filter,Water Treatment Industry |
| Function: |
Mining Sieving Mesh |
| Length: |
20-2000mm |
| Width: |
50mm- 2500mm |
| Sieve Material: |
Stainless Steel 304 316 |
| Slot Size: |
Min 0.015mm |
| Wedge Wire Szie: |
1*2, 2*3, 2.5*3.5, 5*6... |
| Rod Support: |
1*2, 2*3, 2.5*3.5, 5*6... |
| Usage: |
Environmental Protection |
| Motive Force: |
Gravity |
| Certification: |
CE |
| Type: |
Sieve Bend Screen |
Product Description

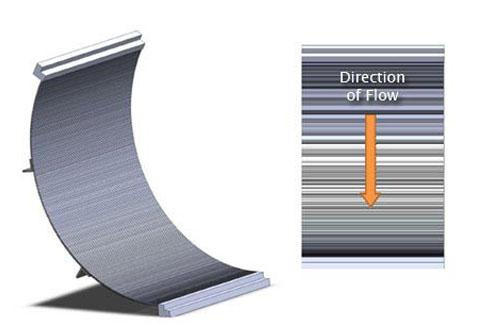

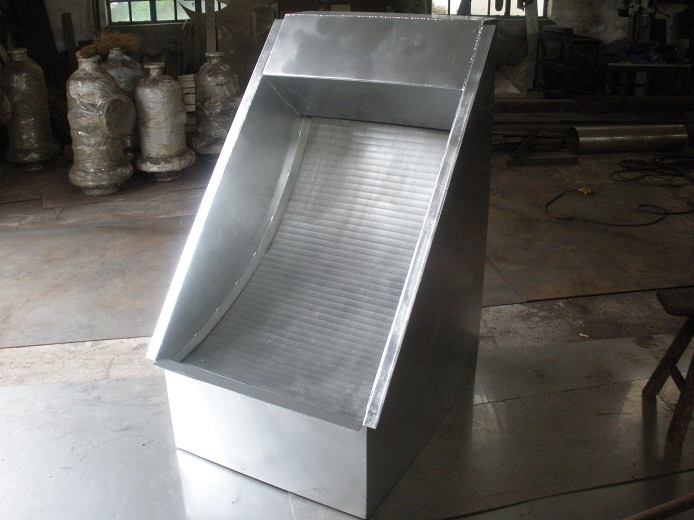

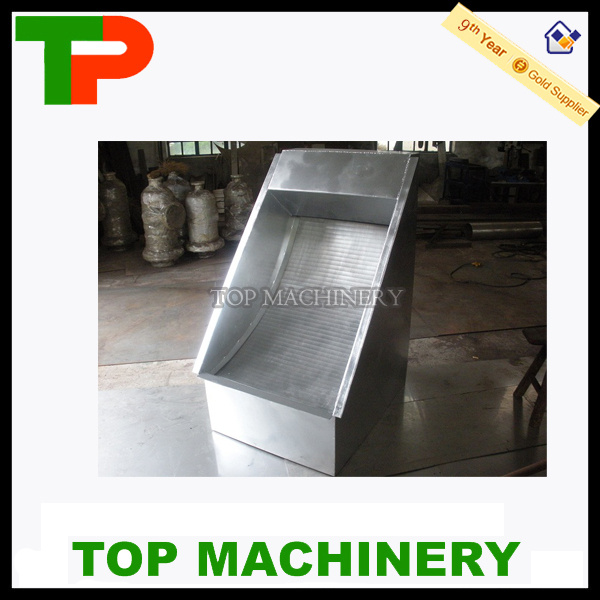

Sieve bend screen
Sieve plate is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.
Application: mining, coal separation, drilling, fertilizer, food, environmental protection, metallurgy, medicine and other industries.
Specifications
Diameter (mm) |
Φ20, Φ50, Φ53, Φ57, Φ60, Φ65, Φ70, Φ75, Φ80, Φ100, Φ125, Φ200, Φ245, Φ300, Φ320, Φ360, Φ400, Φ450, Φ500, Φ550, Φ600, max. 1200 |
Slot (mm) |
0.010, 0.015, 0.02, 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5......15 ... |
Length (mm) |
50~6000 |
Material |
stainless steel (AISI 304, 316, 316L...), low carbon steel, low carbon steel galvanized zinc, steel treated with plastic spraying |
Note |
Non-standard offer, can be produced as per request |
Advantages :
1. High opening rate, big filter area, fast filtering speed.
2. Good corrosion resistance and wear resistance.
3. Low using cost and long life span
4.Homogeneous slot size, smooth surface, strong permeability, minimum gap precision can be up to 8 microns.
Specification:
1. Material: Carbon steel, Low carbon steel, Stainless steel (304,316L,1Cr18Ni9Ti,0Cr18Ni9,00Cr17Ni14Mo2,321) Duplex stainless steel,Hastelloy, Titanium alloy,etc
2. Minimum slot size: can be up to 8 microns.
3. Wrap and support rod: Wrap type: V1,V2,V3,V4; Rod type: V4,V5,V6,T1,T2,U1,U2
4. Note: The length and width can be customized.
Pressure bend sieve is a kind of high efficient sieve, relying on pressure screening the wet, which is composed of screen surface, sieve box, feeding device and outlet. The screen surface is the key component. It is made of stainless steel shape screen. When operating the wet material ejected from the nozzle under pressure from 0.2 to 0.4 Mpa, high ejection speed produces tangential force, triangular mesh wedge forms blade to scrap the material into a thin layer, then the water and fine material evenly dispersed,and the entire screen surface get essential self-cleaning. The material on the sieve discharged from the taphole,The material under the sieve get into the stock inlet. As it adopted the multistage countercurrent washing process, it can effectively improve powder extraction rate and starch quality, having an obvious economic benefits. It becomes an replacement of the screening process in starch industry.
Application: germ washing and fiber separation in starch industry.Arc vibrating screen(sieve bend) is a certain curvature radius and angle of slotted screen. As required, it can be made of different radii and different angles. Common angle 45 °, 60 °, 90 °, 180 ° and 270°.Mainly used for coal preparation plants, iron ore mines, food processing and other industries.
Top, founded in 2002, is a professional manufacturer and supplier of environmental protection, RAS equipment, livestock manure treatment equipment, water treatment and screen pipes, etc. Our products include micro-nano technology equipment, volute screw sludge dewatering machine, DAF, sludge scraper, mechanical screen, hydrocyclone, self-cleaning filter, inward/outward water micro filter, dosing device, sand filter, softener, RAS equipment and other equipment. The products widely used in municipal and industrial sewage, such as textile and dyeing, tannery, paper&pulp, food processing, diary, slaughterhouse, animal husbandry, pharmaceutical, plastic recovery, petrochemical, fish farm, etc.
With the introduction of advanced technology concepts at home and abroad, TOP has a professional solution team integrating technology R&D and technical consultation. And with our consistent effort, by virtue of excellent quality, competitive price and good after-sales service, our products are very popular and supplied to more than 40 countries.
Business Type: Manufacturer/Factory
Business Range: Agriculture & Food,Industrial Equipment & Components,Manufacturing & Processing Machinery,Metallurgy, Mineral & Energy,Packaging & Printing,Service,Textile
Management System Certification: ISO 9001,ISO 9000
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Average Lead Time: Peak season lead time: one monthOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 21~50 People
Export Year: 2001-01-06
Export Percentage: 51%~70%
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: Add: No.146 of Konggang 2nd Road, Southwest Airport Economic Development Zone, Shuangliu, Chengdu, Sichuan, China
R&D Capacity: OEM, ODM
No. of R&D Staff: 11-20 People
No. of Production Lines: 5
Annual Output Value: US$2.5 Million - US$5 Million
