Product Specifications
Prod Model: |
ACR38T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dimension: |
67.6mm (L) X 23.0mm (W) X 8.0mm (H) |
Interface: |
USB 2.0 Full Speed |
Mtbf: |
500,000 Hours |
Smart Card Interface Support: |
ISO-7816 Class a, B and C ( 5V, 3V, 1.8V ) |
Product Description

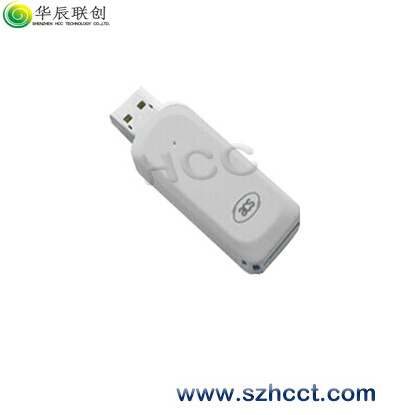

SIM Sized Smart Card Reader--ACR38T
Feature
*Supports SIM-sized cards
*Supports ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ) cards
*Performs read and write operations on all microprocessor cards with T=0, T=1 protocols
*Supports most of the popular memory card types in the market:
*Cards following the I2C bus protocol (free memory cards) such as:
*Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
*SGS-Thomson: ST14C02C, ST14C04C
*Gem plus: GFM1K, GFM2K, GFM4K, GFM8K
*Cards with intelligent 256 bytes EEPROM and write protect function: SLE4432, SLE4442, SLE5532, SLE5542
*Cards with intelligent 1K bytes EEPROM and write-protect function: SLE4418, SLE4428, SLE5518, SLE5528
*Cards with '104' type of EEPROM (non-reloadable token counter cards): SLE4406, SLE4436, SLE5536, SLE6636
*Cards with secure memory IC with password and authentication: AT88SC153, AT88SC1608
*Cards with Intelligent 416-Bit EEPROM with internal PIN check: SLE4404
*Cards with Security Logic with Application Zone: AT88SC101, AT88SC102, AT88SC1003
*Supports PPS (Protocol and Parameters Selection)
*Short Circuit Protection
*USB Full Speed
*RoHS Compliant
Dimension | 67.6mm (L) x 23.0mm (W) x 8.0mm (H) |
Interface | USB 2.0 full speed |
Supply Voltage | Regulated 5V DC |
Supply Current | Max. 50mA |
Operating Temperature | 0-50ºC |
CLK Frequency | 4 MHz |
MTBF | 500,000 hours |
Smart Card Interface Support | ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ) |
Compliance/Certifications | EN 60950/IEC 60950, PC/SC, CCID, CE, FCC, RoHS Compliant, USB Full Speed, Microsoft WHQL: 2000, 2003, XP, VISTA, 2008, 2008 R2, 7 |
Operating System Support | Win98, Win ME, Win NT 4.0, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7 Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64 Mac Linux |
