Product Specifications
| Prod Model: |
HP395D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Single channel H. 264 IP to SDI decoder
Outline

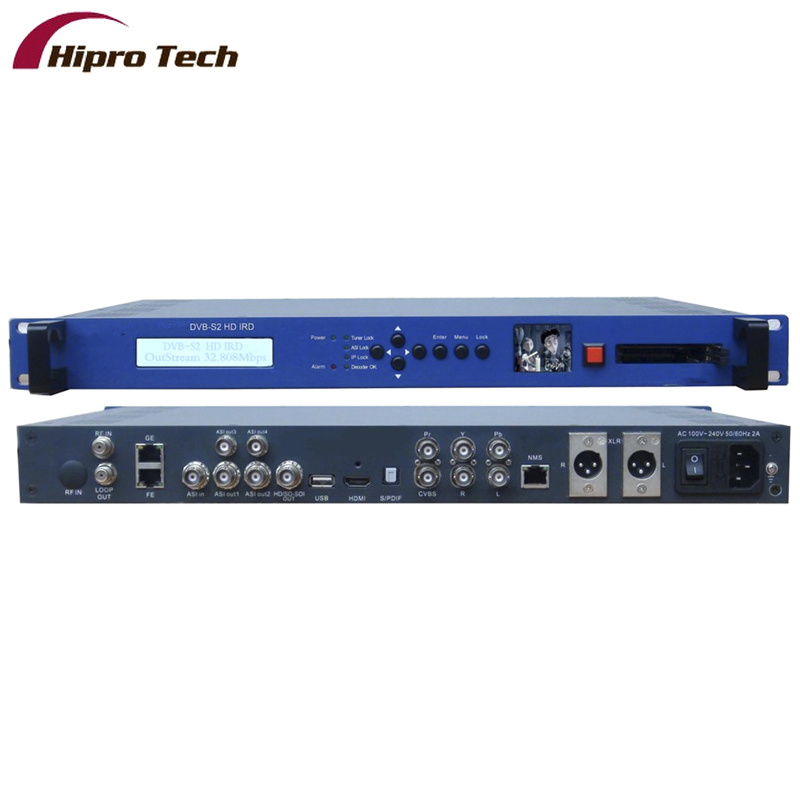

HP395D DVB-S2 HD IRD is HIPRO new design IRD with video monitor LCD equipped on the front panel. It can receive TS signals from tuner (DVB-S/S2/C/T/ISDB-T/ATSC optional), ASI and IP sources. After multiplexing and de-encryption with CAM module, then give it to ASI, IP as well as various interface video/audio output at the same time. Its video/audio outputs support professional HD/SD-SDI, YPbPr, HDMI, XLR balanced audio, and S/PDIF digital audio and CVBS, which can greatly satisfy the professional users' needs. With the CAM slot (CI/CI+) support, The HP395D can support one channel (Tuner, ASI or IP) de-scrambling and give transparent signal output. User can operate the device by using front panel LCD or NMS software. Moreover, users can choose to have an optional ASI output interface which can pass through the encryption data source directly from tuner.
Features
Real-time video Monitor LCD in the front panel
DVB-S2 tuner input
MPEG-2 & MPEG-4 video decoding
HE-AAC, LC-AAC, AC3, MPEG2 audio decoding
Support AC3 pass through
Support automatic FEC
Re-multiplexer embedded
Support Tuner, IP, ASI Input at the same time
Support IP, ASI, Decoding output at the same time
Support 8 X SPTS output
Support CAM card insert (CI/CI+)
Support CC (Closed Caption)
Support Front Panel, SNMP and Web-page Operation
Specifications
|
Input |
Tuner |
1 tuner DVB-S2 |
|
ASI |
1 ASI IN |
|
IP |
1 IP |
|
Output |
ASI |
2 separate groups of output ports (each group has 2 channels) |
|
Video |
Decoding |
MPEG-2 & MPEG-4 |
|
Interface |
1*CVBS, 1*YPbPr, 1*HD/SD-SDI, 1* HDMI |
|
Audio |
Decoding |
HE-AAC, LC-AAC, AC3, MPEG2 |
|
Interface |
XLR, L/R |
|
SPDIF |
1 SPDIF |
|
Input Level |
-65~-25dBm |
|
Input Frequency |
950~2150MHz |
|
Symbol Rate |
2-45M symbols |
|
Constellation |
QPSK, 8PSK |
|
FEC Rate |
1/2, 3/5, 2/3, 3/4,4/5, 5/6, 8/9,9/10 |
|
NMS Port |
Ethernet Port |
10/100M |
|
Protocols |
TS Over IP : UDP, NMS : UDP |
|
Miscellaneous |
Dimensions ( L×W×H) |
482mm*360mm*44mm |
|
Approx weight |
3.2kg |
|
Power |
<20W(Max) |
|
Temperature |
0~45(Operating),-20~80(Storage) |
|
