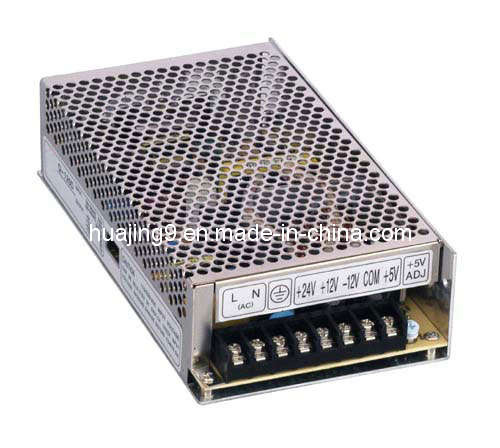

Single Output AC/DC Power Supply 150w

Name: Single Output AC/DC Power Supply 150w
Brand: China-Manufacturer-Directory.com
SKU: 668673015
Availability: InStock
Rating: 4.8 (72 reviews)

Supplier:	Zhejiang Huajing Rectifier Co., Ltd.
Price:	Negotiable
Min Order:	50/Piece
Quantity::
Trade Terms:	Sea Shipping or Air Shipping

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	101 - 200W

Product Description

Single output switching power supply 150W
With CE Approval
2 years quality gurantee

Competitived price and high reliability
105C Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effect
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave

Model Performance	S-150-5	S-150-7.5	S-150-9	S-150-12	S-150-13.5	S-150-15	S-150-24	S-150-27	S-150-48
DC output voltage	5V	7.5V	9V	12V	13.5V	15V	24V	27V	48V
Output Voltage Tolerance (Note 2)	±2%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	30A	20A	16.7A	12.5A	11.2A	10A	6.5A	5.6A	3.2A
Output Current Range	0-30A	0-20A	0-16.7A	0-12.5A	0-11.2A	0-10A	0-6.5A	0-5.6A	0-3.2A
Ripple and noise (Note 3)	150mVp-p	150mVp-p	180mV	180mV	180mV	180mV	240mV	240mV	240mV
Into the line of stability (Note 4)	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
Load stability (Note 5)	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
DC output power	150W	150W	150.3W	150W	151.2W	150W	156W	151.2W	153.6W
Efficiency	70%	80%	80%	82%	83%	84%	85%	86%	87%
DC voltage adjustable range	4.5-5.5V	6-8.3V	8-10.4V	10.6-13.2V	12-15V	13.5-16.5V	21-28V	24-30V	43-53V
Input Voltage Range	85 - 132VAC/170 - 264VAC SELECTED BY SWITCH 47 - 63Hz
Input Current	3.2A/115V 1.6A/230V
Inrush Current	Current 35A/115V 60A/230V cold start
Leakage	<3.5mA/240VAC
Overload	105% ~ 150% Type: PULSING HICCUP SHUTDOWN RESET: Automatic recovery
