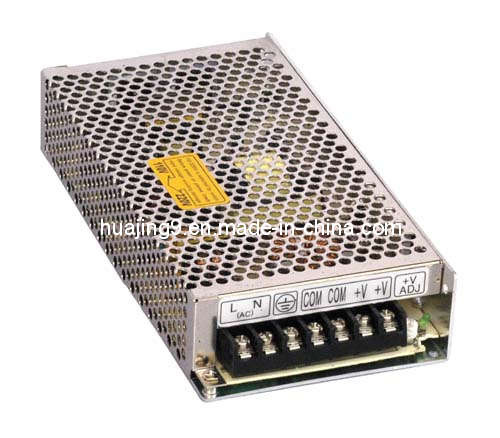

Single Output Switching Power Supply 120w (s120)

Name: Single Output Switching Power Supply 120w (s120)
Brand: china-manufacturer-directory.com
SKU: 668671685
Availability: InStock
Rating: 4.6 (128 reviews)

Supplier:	Zhejiang Huajing Rectifier Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	others

Product Specifications

Prod Model:	s120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	101 - 200W

Product Description

Single output switching power supply 120W
With CE Approval
2 years quality gurantee

Competitived price and high reliability
105C Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effect
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave

Model Performance	S-120-3	S-120-5	S-120-7.5	S-120-12	S-120-15	S-120-24	S-120-27	S-120-48
DC output voltage	3V	5V	7.5V	12V	15V	24V	27V	48V
Output Voltage Tolerance (Note 2)	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	22A	20A	16A	10A	8A	5A	4.4A	2.5A
Output Current Range	0 -22A	0 -20A	0 -16A	0 -10A	0 -8A	0 -5A	0 -4.4A	0 -2.5A
Ripple and noise (Note 3)	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Into the line of stability (Note 4)	±0.5%	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
Load stability (Note 5)	±0.5%	±1%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
DC output power	66W	120W	120W	120W	120W	120W	119W	120W
Efficiency	70%	78%	80%	81%	81%	84%	84%	84%
DC voltage adjustable range	2.85-3V	4.75-5.5V	6.75-8.25V	10.8-13.2V	13.5-16.5V	21.6-26.4V	26-32V	43.2-52.8V
Input Voltage Range	85 ~ 132VAC/180 ~ 264VAC by switch 47 ~ 63Hz
Input Current	2.4A /115V,1.2A /230V
Inrush Current	Cole-start Current 30/115V 60A/230V
Leakage	<1mA/240VAC
Overload protection	105%-150%	150%-200%				105%-150%
Overload protection	Type: Cutting Output reset: Automatic restore
