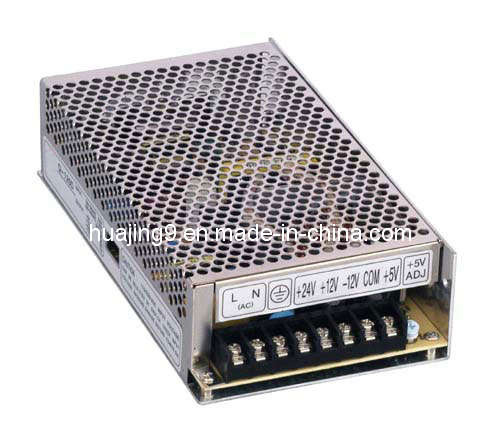

Single Output Switching Power Supply 150w (s150)

Name: Single Output Switching Power Supply 150w (s150)
Brand: china-manufacturer-directory.com
SKU: 668672865
Availability: InStock
Rating: 4.3 (123 reviews)

Supplier:	Zhejiang Huajing Rectifier Co., Ltd.
Price:	Negotiable
Min Order:	50/Piece
Quantity::
Trade Terms:	Sea Shipping or Air Shipping

Product Specifications

Prod Model:	s150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	101 - 200W

Product Description

Single output switching power supply 150W
With CE Approval
2 years quality gurantee

Competitived price and high reliability
105C Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effect
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave

Model Performance	S-150-5	S-150-7.5	S-150-9	S-150-12	S-150-13.5	S-150-15	S-150-24	S-150-27	S-150-48
DC output voltage	5V	7.5V	9V	12V	13.5V	15V	24V	27V	48V
Output Voltage Tolerance (Note 2)	±2%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	30A	20A	16.7A	12.5A	11.2A	10A	6.5A	5.6A	3.2A
Output Current Range	0-30A	0-20A	0-16.7A	0-12.5A	0-11.2A	0-10A	0-6.5A	0-5.6A	0-3.2A
Ripple and noise (Note 3)	150mVp-p	150mVp-p	180mV	180mV	180mV	180mV	240mV	240mV	240mV
Into the line of stability (Note 4)	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
Load stability (Note 5)	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
DC output power	150W	150W	150.3W	150W	151.2W	150W	156W	151.2W	153.6W
Efficiency	70%	80%	80%	82%	83%	84%	85%	86%	87%
DC voltage adjustable range	4.5-5.5V	6-8.3V	8-10.4V	10.6-13.2V	12-15V	13.5-16.5V	21-28V	24-30V	43-53V
Input Voltage Range	85 - 132VAC/170 - 264VAC SELECTED BY SWITCH 47 - 63Hz
Input Current	3.2A/115V 1.6A/230V
Inrush Current	Current 35A/115V 60A/230V cold start
Leakage	<3.5mA/240VAC
Overload	105% ~ 150% Type: PULSING HICCUP SHUTDOWN RESET: Automatic recovery

Zhejiang Huajing Rectifier Co., Ltd. Established in 1992, is specialized in production of electric power semiconductor components, complete silicon rectifying equipment and instrument&LED panel meter, and possesses reinforced technical force, excellent equipment, advanced workmanship, and complete inspection measure. The product has obtained national industrial production permit and been certified according to ISO9001 and CE.

HUAJING company has main products: Silicond controlled rectifier(SCR), phase control thyristor, fast switching thyristor, bi-directional thyristor, thyristor/diode module, solid state relay. Shunt, switching power supply, heatsinks, LED products, instrument&panel meter, and many low volatge electrical products etc.

Welcome your kind attention and inquiry. We are appreciated your supporting. If you have any questions, please feel free to contact us.
