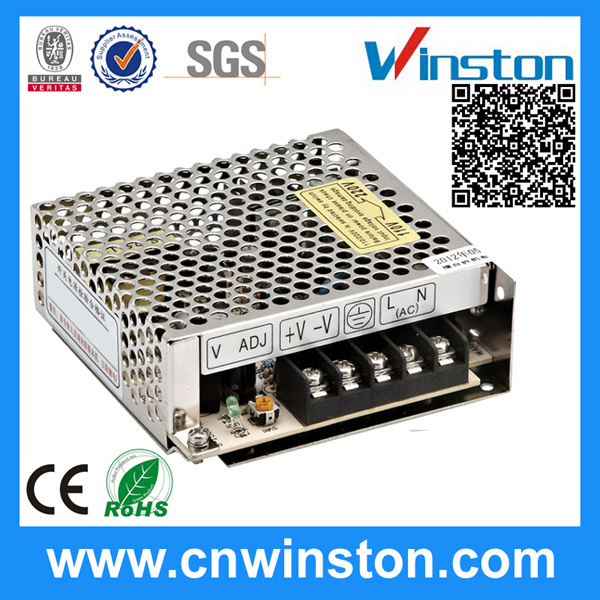

Single Output Switching Power Supply with CE

Name: Single Output Switching Power Supply with CE
Brand: china-manufacturer-directory.com
SKU: 716572135
Availability: InStock
Rating: 4.9 (42 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 4.5-5.5/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S-15-5, S-15-12, S-15-15, S-15-24
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Output Frequency:	50/60Hz
Output Current:	3A,1.3A,0.7A
Certificate:	CE,RoHS
Weight:	310g
Product Size:	999735mm
Enclosure Material:	Aluminum
Protection:	Over Load
Frequency:	47-63Hz
Quality Guarantee:	2 Years
Output:	Single Output
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Winston

Product Description

15W Single Output Switching Power Supply

Features:
1) AC Input range selectable by switch
2) Input side chassis plug
3) Protections:short circuit/overload/over voltage
4) Forced air cooling by built-in DC FAN
5) PWM control and regulated
6) Built-in cooling fan ON-OFF control
7) 100% full load burn-in test
8) Fixed switching frequency at 25KHZ

Specificatinon

Model		S-15-5	S-15-12	S-15-15	S-15-24
Output	DC Voltage	5V	12V	15V	24V
	Current Range	0~3A	0~1.3A	0~1A	0~0.7A
	Rated Power	15W	15.6W	15W	16.8W
	Wave & Noise	50mVp-p	100mVp-p	100mVp-p	100mVp-p
	Voltage Adj. Range	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
	Line Wire Regulation	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±1.0%	±0.5%	±0.5%	±0.5%
	Setup, Rise Time	300ms,50ms/230VAC 800ms,50ms/115VAC at full load
	Hold Up Time (Typ.)	90ms/230VAC 12ms/115VAC at full load
Input	Voltage Range	85-264VAC 120-370VDC
	Frequency Range	47-63HZ
	Efficiency (Typ.)	65%	68%	68%	72%
	AC Current (Typ.)	0.5A/115VAC 0.25A/230VAC
	Inrush Current	COLD START 15A/115VAC 30A/230VAC
	Leakage Current	0.5mA/240VAC
Protection	Overload	105-150% RATED OUTPUT POWER
	Overload	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage	5.75V-6.75V	13.8V-16.2V	17.2V-20.25V	27.6V-32.4V
	Over Voltage	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Working Temp &Humidity	-10~+60°C , 20-90%RH non-condesing
	Storage Temp & Humidity	-20~+85°C,10-95%RH
	Temperature Coefficient	±0.03%°C(0-50°C)
	Vibration	10-500HZ
Safety	Safety Standard	CE RoHS
	Withstand Voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
	Isolation Resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
	EMC Standard	Design refer to GB9254,EN55022 Class A
	Dimension	989735mm
	Packing	4332.524CM/60pcs/18kg

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
