Product Specifications
Prod Model: |
DK-220AC40 D30 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Housing Material: |
Aluminum Shell |
Way Of Connecting Terminal: |
5 Pin |
Protection Mode: |
L-PE, N-PE |
Dimension(Mm): |
140x205x85 |
Weight(Kg): |
1.99 |
Production Standard: |
Iec61643-1 |
Lightning Protection Class: |
C+D |
Rated Working Currents: |
30A |
Maximum Discharge Currents (8/20) Us: |
40ka |
Maximum Continuous Running Voltage: |
385V AC |
Product Description

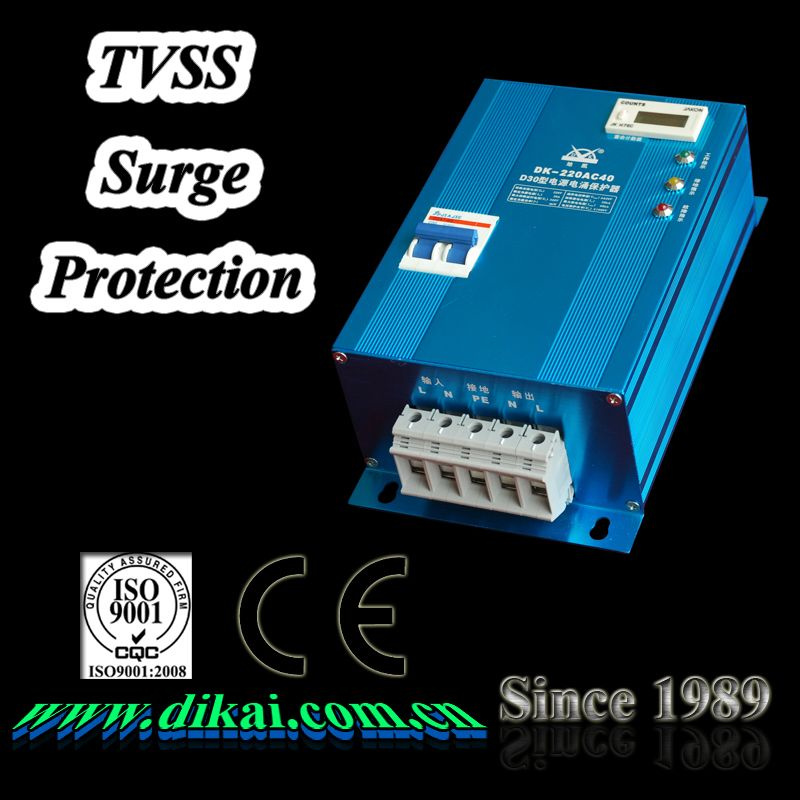

Single Phase 220V TVSS (DK-220AC40 D30)
Applicable Scope
1. UPS or Voltage Regulator's input terminal of Computer Room, Communication Room, Monitoring Room, and Control Room
2. Places need tow classes lightning protection
3. Power input terminal of Equipment Cabinet or other equipments need protection
4. Automatic(unmanned) base station
5. Power lightning protection of Distribution Cabinet
Character
1. Dedicated Power SPD for small machine room
2. Power SPD with Two ports, low residual voltage
3. C+D classes (grades) linked function
4. Thunder strike counter
5. Function of lightning protective status indicator
Brief Instruction
Single Phase 220V TVSS with two ports and thunder strike counter is designed according to the IEC standard. It is assembled with Power Working Indicator, Malfunction Indicator and thunder strike counter.
Power SPD with tow ports can realize tow classes (grades) lightning protection, low residual voltage and easy installation. It is adapted to the 220V Power Distribution System and places require stable electrical load, low limiting currents or other places need tow classes (grades) lightning protection. It can be installed connecting with the power input terminal of UPS in computer room, monitoring room, UPS in control room, PLC cabinet, control cabinet, equipment cabinet etc.
8/20μ S maximum discharging currents Imax could be 40kA/line, working currents is 10-30A
Key Words: Surge protector, surge protection, surge protective device, SPD, surge suppressor, TVSS, Transient Voltage Surge Suppression, surge suppression, surge protection, surge arrester, lightning protection, lightning surge, thunder strike, thunder protection, lightning rod, lightning conductor, lightning arrester, DC surge protector, AC surge protector, 110V surge, 220V surge, 380V surge, single phase, three phases, CCTV, camera, antenna feeder, AF surge, coaxial cable, coaxial line, coaxial, grounding rod, grounding conductor, earthing rod, earthing conductor, earthing, grounding, RJ11, phone line surge, RJ45, PoE, 8/20μ S, 10/350μ S
Type |
DK-220AC40 Type D30 |
Material of Outer Shell |
Aluminum Shell |
Protection Class of Outer Shell |
IP20 |
Color |
Blue |
Way of Installation |
Wall Mounted |
Way of Connecting Terminal |
5 PIN |
Working Temperature |
-40~+85ºC |
Relative Humidity |
≤95% |
Damaged Condition |
Presenting Breaker Status |
Protection Mode |
L-PE, N-PE |
Dimension(mm) |
140X205X85 |
Weight(kg) |
1.99 |
Display Function |
Working/Malfunction Indicator
Thunder Strike Counter |
Production Standard |
IEC61643-1 and GB18802.1-2002 |
Lightning Protection Class |
C+D Grade |
Type of SPD |
Tow Ports |
Type of Applicable Power Supply System |
TT,TN,IT |
Rated Voltage |
220V AC |
Rated Working Currents |
30A |
Maximum Continuous Running Voltage |
385V AC |
Active Voltage |
620V DC |
Rated Working Frequency |
50Hz(60Hz) |
Drain Currents |
≤30µA |
Nominal Discharge Currents (8/20)µs |
20kA |
Maximum Discharge Currents (8/20)µs |
40kA |
Voltage Protection (8/20)µs (In) Up |
≤1.2kV |
Respond Time (L/N-PE) |
<25ns |
Connecting Parameter of Trunk Circuit |
Type of Connector |
Screw Stationary Terminal |
Specification of Screw |
M5 |
Minimum Section Surface of Connecting Wire |
BVR-10sq.mm |
Maximum Section Surface of Connecting Wire |
BVR-35sq.mm |
Connecting Parameter of Remot Alert Circuit |
Type of Connector |
Screw Stationary Terminal |
Specification of Screw |
M2 |
Maximum Section Surface of Connecting Wire |
BVR-1.5sq.mm |
Maximum Working Voltage |
125V DC |
Maximum Working Currents |
0.5A(DC) |
Maximum Load Power |
12.5W |
Art. No. |
100602001 |
