Product Specifications
| Prod Model: |
DDS1088 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Meter Case: |
ABS |
| Type: |
Power Meter |
| Display: |
Digital |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Installation: |
Direct Connected |
| Usage: |
Standard Electric Energy Meter |
| Power Meter Connection: |
Terminal |
Product Description
DESCRIPTION

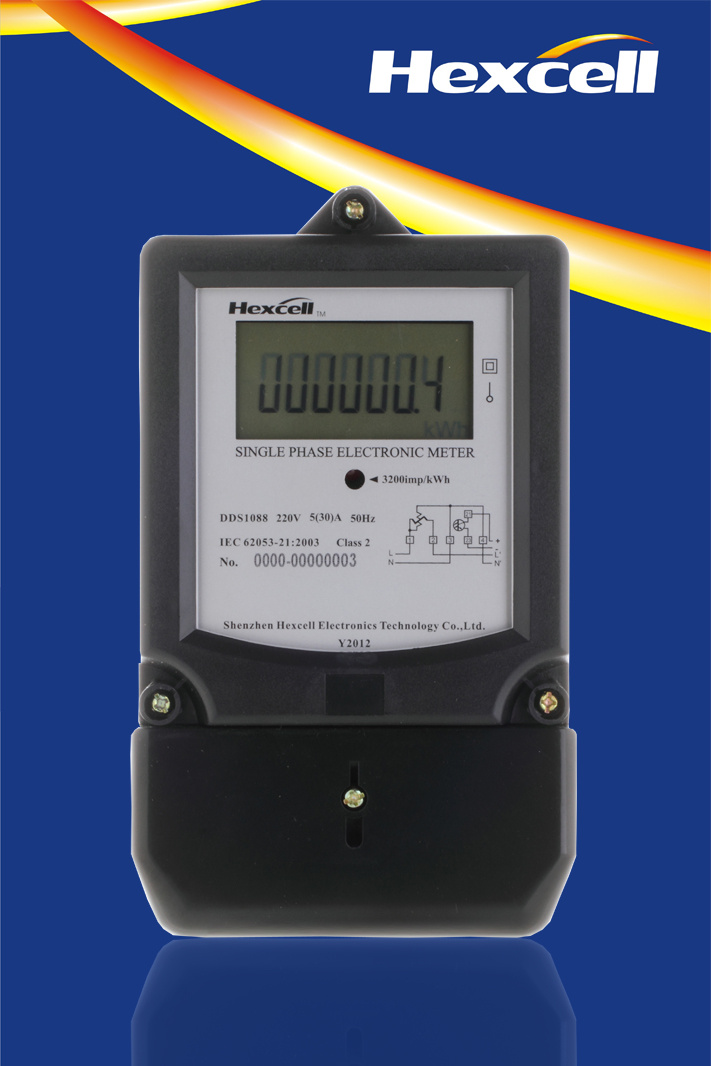

The DDS1088M is an affordable single phase energy Meter which made of high quality optimized components and designed by advanced SMT technology, with good performances on reliability, accuracy and load ranges.
It complies with the standards of IEC62052-11, IEC62053-21, IEC62053-61, IEC62054-21, IEC62059-11, and IEC62059-21.
FEATURES
1. Measures active energy precisely and no need to frequent calibrations.
2. Optional register or LCD display.
3. Stable metering which maintains flat error linearity at 5%Ib to Imax.
4. Wide working temperature range during -30° C to 70° C.
5. Ultrasonic welding sealing structure.
6. Optional transparent top cover and terminal cover.
7. Optional a variety of communications for meter reading such as infrared, RS485 and GPRS.
SPECIFICATIONS
|
Current |
1.5(6)A, 2.5(10)A,
5(40)A, 10(60)A,
20(80)A, 10(100)A |
Voltage |
120V
240V |
Frequency |
50/60Hz |
|
Accuracy |
Class 1.0
Class 2.0 |
Display |
Register
LCD |
Impulse: |
As required |
|
Starting Current |
0.4%Ib(Class 1.0)
0.5%Ib(Class 2.0) |
Burden |
<2.0W, 10VA |
Relative Humidity |
≤85% |
|
Temperature |
-30°C~70°C |
Digits |
4+1
5+0
5+1
6+0
6+1 |
Communication |
Infrared
RS485
GPRS |
|
Wiring |
1P2W
1P3W |
Weight |
≈0.6Kg |
- |
- |
