Shenzhen Hexcell Electronics Technology Co., Ltd. >> Three Phase Smart Power Meter

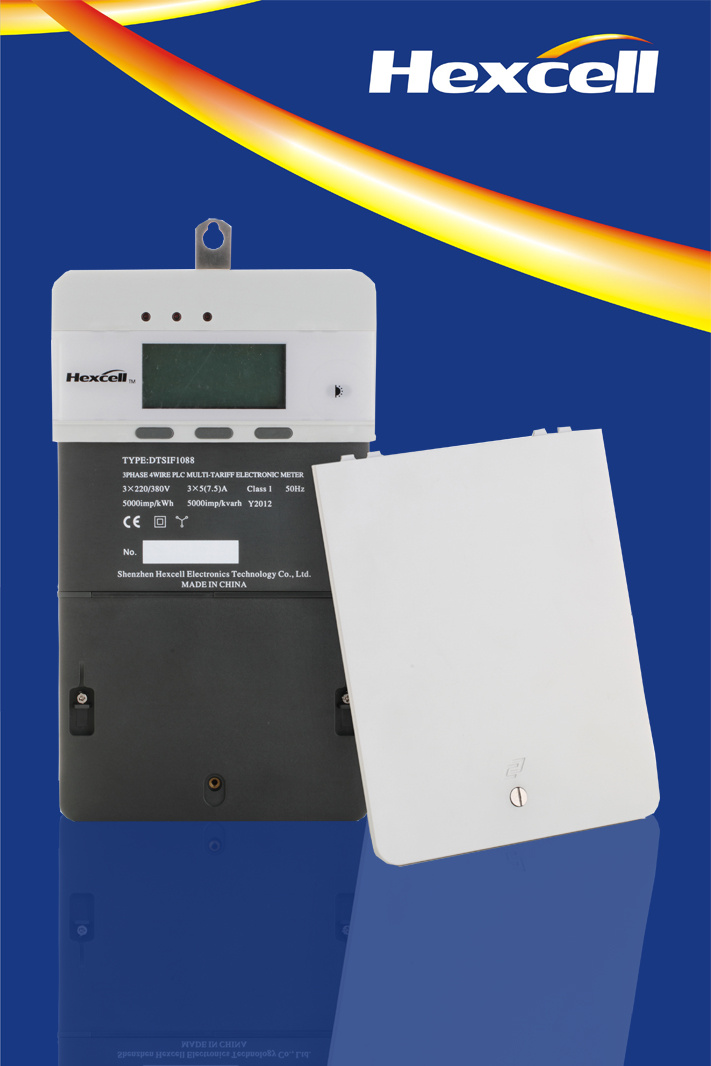

Three Phase Smart Power Meter

Name: Three Phase Smart Power Meter
Brand: China-Manufacturer-Directory.com
SKU: 708429765
Availability: InStock
Rating: 4.7 (127 reviews)

Supplier:	Shenzhen Hexcell Electronics Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	DTSD1088
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cover Material:	ABS/PC
Type:	Energy Meter
Display:	Digital
Electric Equipment:	Three-phase Four-wire
Installation:	Direct Connected
Theory:	Electronic Meter
Usage:	Multi-Functional Energy Meter

Product Description

DESCRIPTION
The DTSIF1088 is an advanced multifunction meter to support EN Standards 50470-1, 3 and Other EN Standards.It provides a variety of metering requirements and communications such as GPRS,PLC,485 and IR.
FEATURES
1. Easy operation of LCD displays (menu driven, scrolling function, IR remote control mode).
2. Event log and Load curve recording.
3. External relay, relay output could be up to AC250V/5A or DC30V/5A (optional)
4. Remote control.
5. Switch-off protection. Switch off signal output when load exceeds the specified value.(optional)
6. Built-in RTC clock, broadcast time synchronization via communication interface.
7. Optional/exchangeable communication modules for the same power meter housing:
a) PLC
b) GPRS/GSM
c) RS485
d) Integrated M-Bus Input module.
SPECIFICATIONS

Voltage	3 x 230/400 V	Current	10 (60) A
Frequency	50 Hz±5%	Accuracy	Active Class 1.0, Reactive Class 2.0
Impulse	1600imps/kWh	Protection cla ss	IP52
Temperature	-40°C to +70°C	Humidity	≤95%
Burden	Voltage circuit: < 2VA Current circuit:< 0.1VA	Weight	2.2Kg

Founded in 2003, Hexcell Electronics, formerly named as Holley South, was established as a R&D and production entity of Holley Metering dedicating itself on electronic meters' development. Based upon the sufficient resources and technologies of electronic products geographically in Shenzhen, China, Hexcell has rapidly developed and successfully supplied its meter products to customers both in China and overseas under brand Holley in the past years.

With the heritance of Holley spirit, Hexcell continues focusing on providing our customers the excellent products and satisfying services as we start now running our own business independently. Having our not-long-winded but meet-your-demand products line, we supply meters complying with from IEC to ANSI and from BS to DIN across the continents! Learn more please visit us.
