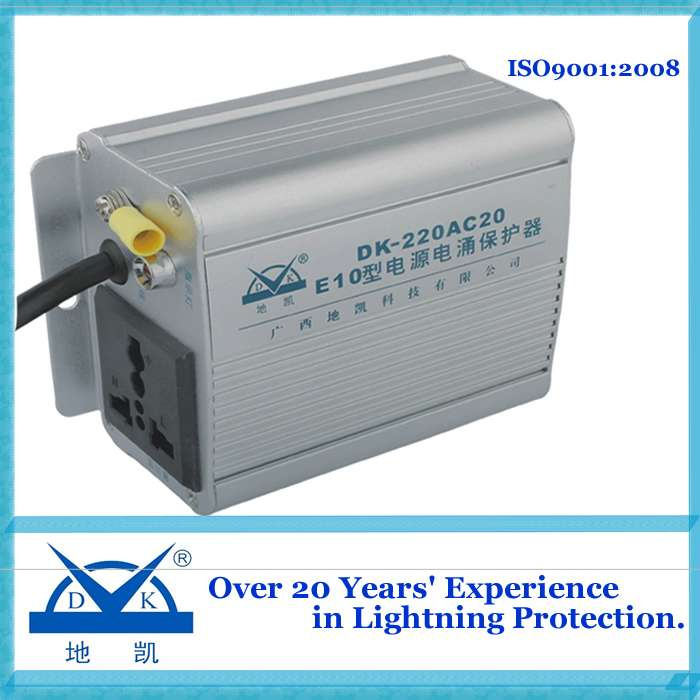

Single Phase Surge Protective Device Lightning Protection

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material Of Outershell:	Aluminum Shell
Protection Class Of Outer Shell:	IP20
Way Of Installation:	Wall Mounted
Way Of Connection Terminal:	5pins
Protection Model:	L-PE, N-PE
Lightning Protection Class:	C+D Grade
Rated Working Currents:	30A
Nominal Discharging Currents(8/20us):	20ka
Maximum Discharging Currents(8/20us):	40ka
Production Standard:	Iec61643

Product Description

Single Phase Surge Protective Device Lightning Protection
1. Experience: 22years
2. CE Approved
3. Small size
About us:

Guangxi Dikai Lightning Protection Engineering Co., Ltd and Guangxi Dikai Sci & Tech Co., Ltd. (be called for short as DK Company) was established in June 1989. It has been specialized in producing lightning protective products, researching development of lightning protective technology, consulting lightning protection service, and engineering lightning protection cases for over 20 years.

Applicable Scope

1. UPS or Voltage Regulators input terminal of Computer Room, Communication Room, Monitoring Room, and Control Room
2. Places need tow classes lightning protection

3. Power input terminal of Equipment Cabinet or other equipments need protection

4. Automatic(unmanned) base station

5. Power lightning protection of Distribution Cabinet

Character

1. Small Power SPD with two ports

2. Fine protection for Terminal equipments

3. C+D grade linked function

4. Multi grade protection, low residual Voltage

5. Easy installation, plug input and 3 Pin socket output

Brief Introduction

Single phase TVSS for UPS with two ports is designed according to the IEC standard. It is combined with Working Indicator, Malfunction Indicator.

Single phase TVSS for UPS can realize two grades lightning protection, low residual Voltage, easy installation. It is suitable for 220V Power Distribution System, and other places need two grades lightning protection or places require low limiting Voltage and stable electrical load. It is can be installed on small power UPS, power of Voltage regulator, Power case of Monitoring System, Equipment Cabinet and other power input of the communication equipments
Supply Capacity:

We can produce 3000PCS Box-Type SPD, surge protective device 220V 380V AC Imax 25kA~120kA with high quality per month.
