Product Specifications
| Markets: |
North America,South America,Mid East,Eastern Asia |
| Electric Equipment: |
Single-phase |
| Power Source: |
AC Meter |
| Theory: |
Electronic Meter |
| Usage: |
Watt-Hour Meter |
| Installation: |
Socket Installed |
Product Description
Functions and features

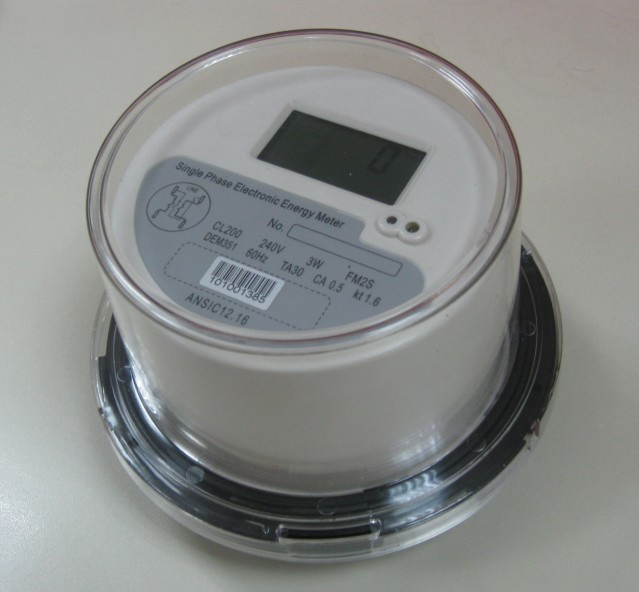

Socket installed, the cover is made of PC material which is transparent and anti-UV molded overall, the terminal is made of black glass fiber which can fire-retardant and enhanced PC material. It has following features: Good weatherability, anti-impact, specious appearance, etc. Complying with standard ANSI C12.10-1997.
8 digits LCD display, may select 6+2 digits display (999999.91kWh, default) or 7+1 digits display, can be set by the port of far infrared communication by users.
There is a port of far infrared pulse output, use for checking conveniently.
There is a port of far infrared state communication, standard configuration communication agreement complying with standard DL/T645-1997, may select other configuration communication agreement.
LED instructions signal of energy impulse (red).
Automatic detection of the flow of load current, and display on LCD (when display, that is meaning the direction of the flow of load current reverse).
Single direction single component measure single phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
Directly connect operation, type 2S wiring, may select single phase two wire, Directly connect operation, type 1S wiring (Product Configuration code is PA).
Qingdao Techen Enterprise is a hi-tech company specialized in R&D and manufacturing, and also providing the OEM/ODM service for electronic metering products. Our enterprise consists of three branch companies: Qingdao Techen Electronic Technology Co., Ltd., Qingdao Aif Electronic Co., Ltd. And Qingdao Aif Measurement Co., Ltd. Qingdao Techen Electronic engages in R&D and sales, and Qingdao Aif Electronic and Qingdao Aif Measurement are responsible for manufacturing.
We take research and development as the top work. Every year, we continuously re-invest 5% of our annual revenue back in our R&D and innovation center to create the ext generation of technology and solutions for our valued customers. Our factory is with modernized production workshop and configured with advanced manufacture equipments, the inspection facilities as well as the perfect production technology. We have 10 imported SMT production lines, the automatic wave weld production line, the international leading aging laboratory and the test and calibration benches.
The international leading automatic production lines, the complete supply chain management system and the professional QC team form the core competitiveness of our company, and provide strong support and motivation for the development of our company, and provide strong support and motivation for the development of our company.
Your satisfaction is our eternal target. Welcome to visit our factory and research centre at any time!
