Yueqing Heyi Electrical Co., Ltd. >> Single Phase Two Wire Three Wire Socket Electrical Meter

Single Phase Two Wire Three Wire Socket Electrical Meter

Name: Single Phase Two Wire Three Wire Socket Electrical Meter
Brand: china-manufacturer-directory.com
SKU: 702280042
Availability: InStock
Rating: 4.8 (73 reviews)

Supplier:	Yueqing Heyi Electrical Co., Ltd.
Price:	US $ 16-16.5/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YY450
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	Digital
Installation:	Direct Connected
Usage:	Maximum Demand Meter
Electric Equipment:	Single-phase
Theory:	Electronic Meter
Power Meter Connection:	Terminal
Measured Signal:	Pulse Peak
Type:	Energy Meter

Product Description

1.electrical type and good accurate
2.PC anti-fire meter case

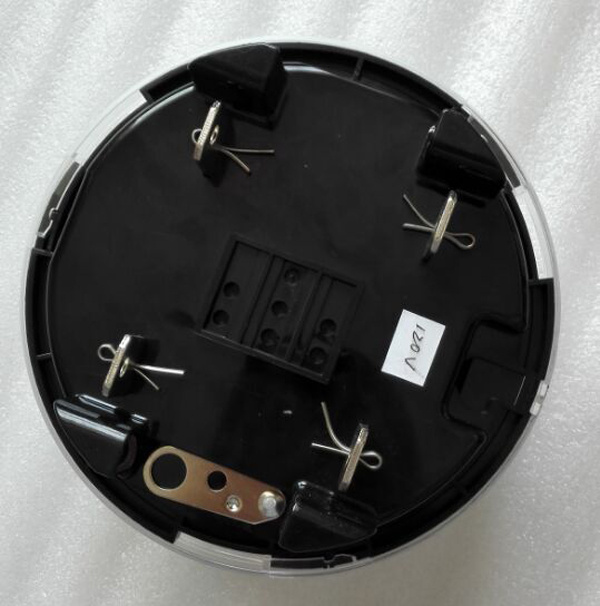

3.ANSI socket type connection
4.save energy consumption

Basic Function

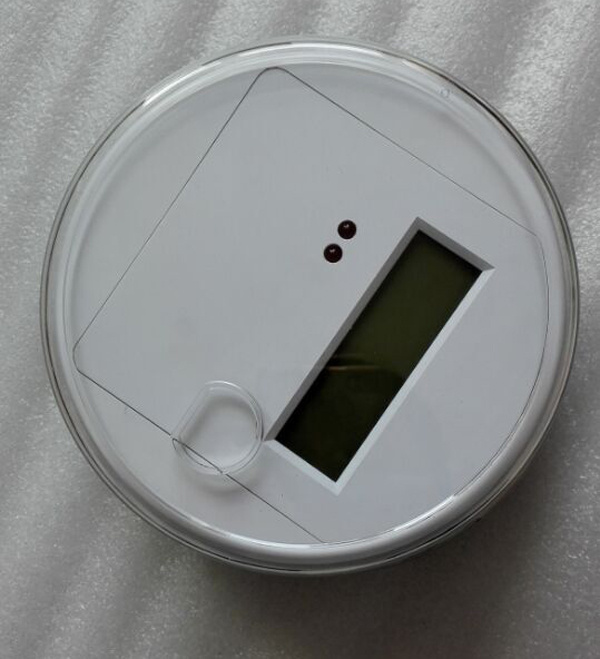

LCD display 5 digit no decimal (default) or 5+1,

Bi-directional total active energy measurement ,reverse active energy measure in the total active energy

Pulse LED indicates working of meter,Pulse output with optical coupling isolation

low starting watts captures energy consumption at leves typically not registered by electrical meter

Two type of cases (protective-class I and II) are available

Optional Function

battery for display when power off

Technical Data

Rate voltage	110V,120V,240V
Working voltage range	0.8~1.2Un
Rate Current	10(60)A,15(60)A,15(100)A CL100
Frequency	60Hz
Connection mode	Direct type
Display	LCD
Accuracy class	1.0
Power consumption	<2W/10VA
Start current	0.004Ib
Constant	555~1600 imp/kWh
Pulse output	Passive pulse, pulse width is 80+5 ms
Executive standard	IEC61036,IEC62053-21,IEC62052-11 ,ANSI
Work temperature	-30ºC~70ºC
Outline dimension LXMXH	176.5X140X120mm
Weight	Approx 0.55kg

We are the professional manufacturing the 0.5-35 KV outdoor indoor, dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

We are the first one who been granted the transformer production license by National technical supervise bureau, Machinery industry Dept, national electrician committee.

The company holds the registered capital of RMB1 0, 000, 000.00, and her importing & exporting amount each year exceeds USD 1, 000, 000.00, The company is provided with the Management Dept, Marketing Dept, Engineering & Technology Dept, Quality Control Dept, Material Supply Dept, Production Planning Dept, Financial Dept and so on. Currently it has 309employees, including 6 engineers and 10 technicians. The company has a strong technical force, advanced production and test equipment and the world latest manufacturing process and technology to adequately meet the customer needs for quality.

Our products are not only largely meet with the demand of domestic customers, but also widely exported the markets of North and South America, Southeast Asia, Middle-east, Latin America, Africa, and Europe with a very good reputation.

Some products have been approved by CE and IEC certificates.
