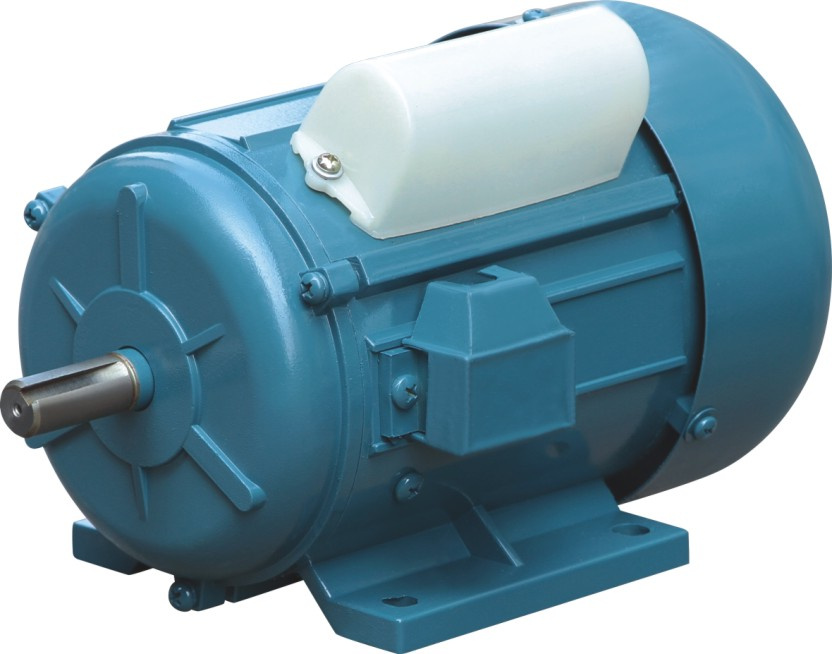

Single Phase Yy Asynchronous Motor (Capacitor Run Motor)

Name: Single Phase Yy Asynchronous Motor (Capacitor Run Motor)
Brand: china-manufacturer-directory.com
SKU: 722089555
Availability: InStock
Rating: 4.9 (79 reviews)

Supplier:	Zhejiang Yinda Machine Electricity Co., Ltd.
Price:	US $ 36/Piece
Min Order:	30/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YY
Markets:	South America,Southeast Asia,Eastern Asia
Voltage:	Special Voltages Available
Number Of Stator:	Single-Phase
Operating Speed:	Low Speed
Application:	Power Tools
Casing Protection:	Closed Type
Rotor Structure:	Squirrel-Cage
Starting Mode:	Capacitor-Run Single Phase Asynchronous Motor

Product Description

Capacitor Run Single-phase Asynchronous motor

Standard features:

Single-phase, II and IV pole, 50Hz
Squirrel cage rotor / Aluminum die cast
IEC dimensions
B3 Mounting
Continous duty: S1
Protection grade: IP44
Insulation class: B
Voltage: 220V

Optical features:
Aluminum Housing

Special Voltages and frequency
Mounting type: B5/B14/B34

APPLICATIONS:
Home appliances, fans, pumps, food and medical machinery etc.

Type	Rated Output	Speed	Voltage	Frequency	Efficiency	Power factor	In	Is	Ts	Nosie
	kW	r/min	V	Hz	%	Cos Φ	A	A	Tn	Lw dB(A)
YY561-2	0.09	2800	220	50	56	0.92	0.8	2.5	0.5	70
YY562-2	0.12	2800	220	50	60	0.92	0.99	3.5	0.5	70
YY631-2	0.18	2800	220	50	65	0.92	1.4	5	0.4	70
YY632-2	0.25	2800	220	50	66	0.92	1.9	7	0.4	70
YY711-2	0.37	2800	220	50	67	0.92	2.7	10	0.35	75
YY712-2	0.55	2800	220	50	70	0.92	3.9	15	0.35	75
YY801-2	0.75	2800	220	50	72	0.92	5.2	20	0.33	75
YY802-2	1.1	2800	220	50	75	0.95	7.1	30	0.33	78
YY90S-2	1.5	2800	220	50	76	0.95	9.5	45	0.3	83
YY90L-2	2.2	2800	220	50	77	0.95	13.7	65	0.3	83
YY561-4	0.06	1400	220	50	50	0.9	0.61	2	0.45	65
YY562-4	0.09	1400	220	50	52	0.9	0.86	2.5	0.45	65
YY631-4	0.12	1400	220	50	57	0.9	1.1	3.5	0.4	65
YY632-4	0.18	1400	220	50	59	0.9	1.5	5	0.4	65
YY711-4	0.25	1400	220	50	61	0.92	2	7	0.35	65
YY712-4	0.37	1400	220	50	62	0.92	3	10	0.35	70
YY801-4	0.55	1400	220	50	64	0.92	4.3	15	0.35	70
YY802-4	0.75	1400	220	50	68	0.92	5.5	20	0.32	70
YY90S-4	1.1	1400	220	50	71	0.95	7.5	30	0.32	73
YY90L-4	1.5	1400	220	50	73	0.95	9.9	45	0.3	78
