Single-Side Flexible Printed Circuit Board

Name: Single-Side Flexible Printed Circuit Board
Brand: China-Manufacturer-Directory.com
SKU: 724945885
Availability: InStock
Rating: 4.4 (63 reviews)

Supplier:	Xiamen Bolion Circuit Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S8501
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	46.45*47.5mm
Line Width/Space:	0.1mm/0.1mm

Product Description

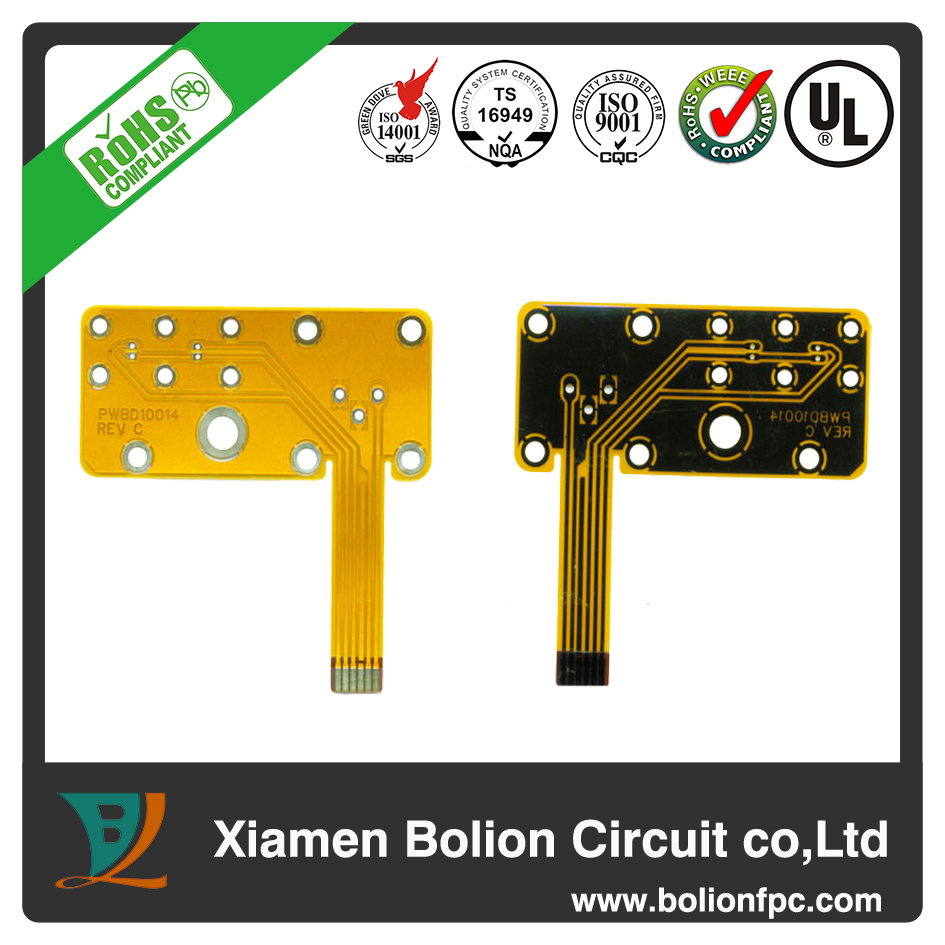

Single-Side Flexible Printed Circuit

Type: Single Side Flexible PCB
Layer: 1L
Dimension: 46.45*47.5mm
Line Width/Space: 0.1mm/0.1mm
Material: 1oz Cu/0.8MIL ADH/1MIL PI
Coverlay: 1mil PI/1mil ADH1
Surface: ENIG (Au: 0.03~0.09um, Ni: 2~6um)
Coverlay Tolerance: +/-0.3
General Tolerance: +/-0.127

Advantage:

1. Over 10 years' manufacturing experience
2. Assembly provided
3. 100% quality tested before shipment
4. Certificate of UL, ISO9001, ISO14001 and ISO/TS16949.
5. Our Products meet the RoHS & WEEE lead-free requirement.
6. Small Order accepted
7. 3 weeks for massive production; 10 days for sample since material prepared
Urgent case or spread delivery schedule will be updated per negociation then

FPC Apply:

medical apparatus
automobiles
aerospace
industrial equipment
detecting instruments
smart-home controller
consumer electronics, etc

Main Technique Index
Description	Parameters
Description	Polyimide	Polyester
Base film Thickness (um)	12.5,25,35,50	12.5,25,35,50
Copper Thickness (um)	12,17.5,35,50,70,105
Min. Line Width/Line Space (mm)	0.075/0.075
Min. Hole Size (mm)	0.15
Tolerance (mm)	Outline:+/-0.05; Coverlay: +/-0.2
Peel Strength (kgf/cm)	Above 1.0	Above 0.8
Solder Resistance	260C 10 seconds	204C 5 seconds

Surface Treatment
Content	Normal coating thickness	Normal PNL size
Plating nickel gold (In house)	Ni:2-9um;Au:0.03-0.09um	300mm×400 MM
Plating hard gold (In house)	Ni:2-9um;Au:0.1-1.0um	300mm×400 MM
Plating soft gold (In house)	Ni:2-9um;Au:0.03-0.09um	300mm×400 MM
Plating pure tin (In house)	2.0-8.0um	300mm×400 MM
Immersion Tin (In house)	0.3-0.6um	300mm×400 MM
OSP (In house)	N/A	300mm×400 MM
ENIG (Hard Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
ENIG (Soft Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
ENEPIG (Hard Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
HASL (Outsource)	Cover the pads with min thickness 1~2 um	300mm×400 MM
Immersion silver (Outsource)	Per standand creteria	300mm×400 MM
