Product Specifications
| Prod Model: |
JLD4580A-O1Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Emission Wavelength: |
440nm~460nm |
| Output Power: |
80MW |
| Light Color: |
Blue |
| Can Type: |
To18-3.8mm |
| Operating Current: |
145mA |
| Operating Voltage: |
7V |
| Reverse Voltage: |
2V |
| Life Time: |
10000 Hours |
| Operating Temperature: |
+10~+70 Degree |
| Storage Temperature: |
-40~+85 Degree |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Laser Diode |
| Package: |
Through Hole |
| Application: |
Projection, Metrology, Biomedical Application |
| Model: |
Pl 450b |
| Brand: |
Osram |
Product Description
Features:

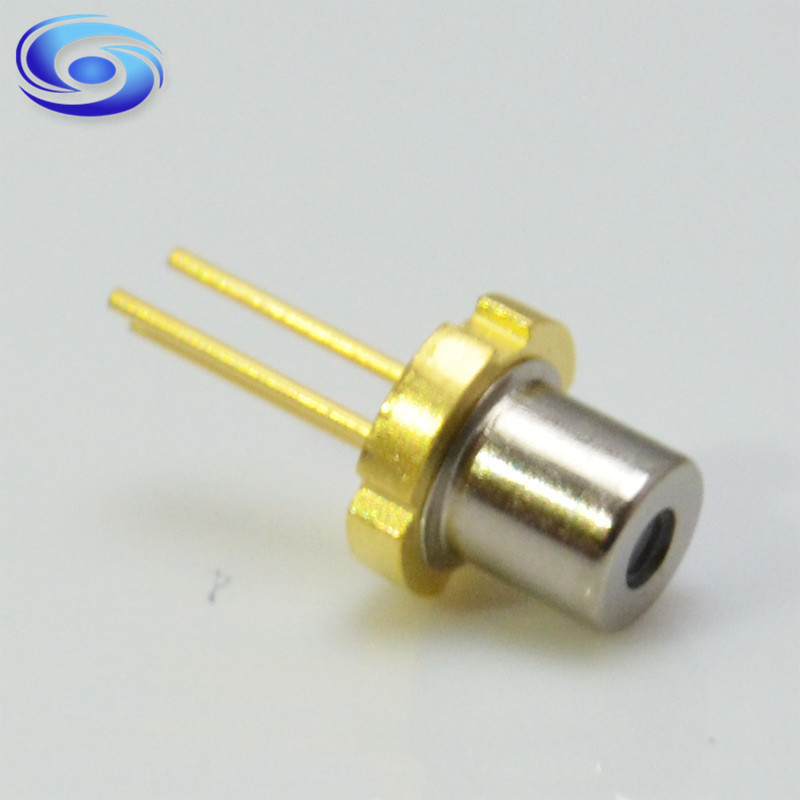

1. blue laser diode 450nm 80mw
2. osram laser diode PL 450B
3. TO38 package
A. Product Description
Absolute Maximum Ratings (Tc=25ºC)
Parameter | Symbol | Min. | Typ | Max. | Unit |
| Optical Output Power | Po | - | - | 100 | mW |
| Operating Current | Iop | - | - | 165 | mA |
| Reverse Voltage | VR | - | - | 2 | V |
| Operating Case Temperature | Tc | +10 | -- | +70 | ºC |
| Storage Temperature | Tstg | -40 | - | +85 | ºC |
| Soldering Temperature max. 10 sec. | Tsolder | - | - | 260 | ºC |
| Emission Wavelength | λ | 440 | 450 | 460 | nm |
| Threshold Current | Ith | - | 30 | 60 | mA |
| Operating Current | Iop | - | 100 | 145 | mA |
| Operating Voltage | Vop | - | 5.8 | 7.0 | V |
| Beam Divergence (FWHM) | θ//×θ⊥ | 4×18 | - | 11×25 | deg |
B. Packaging & Shipping
1. Plastic box, standard and normal package
2. Delivered by DHL, FedEx, Post Service, Aramex, GLE, etc, or any other special way you like
3. Delivery time will be usually 3~5 working days
