Product Specifications
| Prod Model: |
FSE10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mechanical Travel: |
8mm |
| Electrical Travel: |
6.4mm |
| Slide Torque: |
200 Gf Max. |
| Push Pull Strength Of Lever: |
Push:5kg Min ; Pull : 2kg Min . |
| Stopper Strength: |
3kg Min, 5sec. |
| Storage Temperature: |
-40°c to +105°c |
| Operating Temperature: |
-40°c to +105°c |
| Life Cycles: |
200, 000 Cycles Min |
| Heat Resistance: |
+105±2°c, 96h |
| Cold Resistance: |
-40 ±3°c, 96h |
Product Description
FSE10 Series

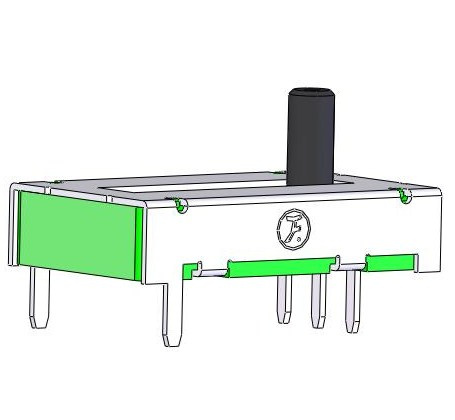

Slide Position Sensor
Feature
1. High reliability
2. Simple construction (only 4 component parts)
3. RoHS compliant and lead free wave soldering.
4. Long life, over 300, 000 Cycles.
FSE10 Series Position Sensor
Electrical characteristics
Resistance Range: 1 K~100K
Total Resistance Tolerance: +/-20%
Taper Style"B taper
Power Rated: 0.2W @50° C
Independent Linearity: +1/-2%
Max. Voltage: DC30V
Contact Roise: Within 10%TR
Mechanical characteristics
Mechanical Travel: 8mm
Electrical Travel: 6.4mm
Slide Torque: 200 gf Max.
Push Pull Strength of Lever: Push: 5Kg Min; Pull: 2Kg Min.
Stopper Strength: 3Kg Min, 5Sec.
Typical Applications
Automotive Seat Position Memory.
Automotive Headlamp Levelling Position Sensors.
Automotive Rear-view Mirror Position Sensors.
Environmental characteristics
Storage Temperature: -40° C to +105° C
Operating Temperature: -40° C to +105° C
Life Cycles: 200, 000 Cycles Min
Heat Resistance: +105± 2° C, 96H TR: ± 2%, Linearity: ± 3%
Cold Resistance: -40 ± 3° C, 96H TR: ± 20%, Linearity: ± 3%
Humidity Resistance: +60 ± 20° C, 90~95RH, 100H TR: ± 20%, Linearity: ± 3%
Temperature Cycles: -40° C~+105° C, 5cycles TR: ± 20%, Linearity: ± 3%
