Product Specifications
| Prod Model: |
FXX45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Total Resistance: |
1k Ohms ~1m Ohms |
| Total Resistance Tolerance: |
20% |
| Resistance Taper: |
a, B, C |
| Withstand Voltage: |
1 Minute at AC 300V |
| Insulated Resistance: |
More Than 100m Ohms at DC 250V |
| Sliding Noise: |
Less Than 100mv |
| Residual Resistance: |
Less Than 10 Ohms |
| Gang Error (Dual Unit): |
-40dB~0dB±3dB |
| Rated Voltage: |
Linear Taper B:15mm:AC 100V |
| Level Push-Pull Strength: |
3.0kgf Min at 10sec. |
| Resistance: |
Variable Resistor |
| Type: |
Slide Potentiometer |
| Installation: |
DIP Resistor |
| Function For Resistance: |
Sampling Resistor |
| Material: |
Carbon Film Resistor |
| Package Type: |
Throught Hole |
Product Description

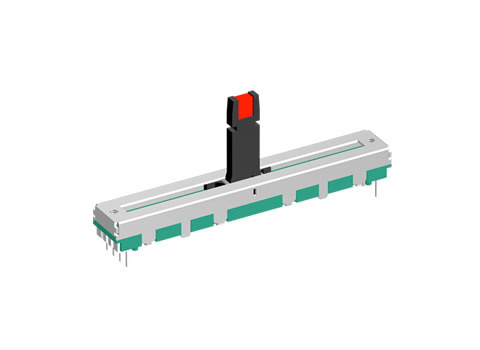

Fxx45 Series
Slide Potentiometer
Feature
1. Metal housing.
2. Dust cover option.
3. Available in red, green and yellow LED colors.
4. Center detent option.
5. Long Life Type Available.
Electrical characteristics
Total Resistance: 1KOhms~1MOhms
Total Resistance Tolerance: 500 Ohms < R< 1MOhms: ± 20%: R< 500Ohms or R> 1M Ohms: ± 30%
Resistance Taper: A, B, C
Withstand Voltage: 1 minute at AC 300V
Insulated Resistance: More than 100MOhms at DC 250V
Sliding Noise: Less than 100mV
Residual Resistance: 20mm: Term. 1~2: Less than 10Ohms; Term. 2~3: Less than 20Ohms
30mm, 45mm, 60mm: Term. 1~2: Less than 10Ohms; Term. 2~3: Less than 30Ohms
Gang Error (Dual Unit): -40dB~0dB± 3dB
Rated Voltage: Linear Taper B: 15mm: AC 100V; 20mm, 30mm, 45mm, 60mm: AC 200V; Other Tapers: 15mm: AC 50V; 20mm, 30mm, 45mm, 60mm: AC150V
Rated Power (Single Unit/Dual gangs): Linear B Taper: 15mm: 0.05W/0.025W, 20mm: 0.1W/0.05W, 30mm: 0.2W/0.1W, 45mm: 0.25W/0.125W, 60mm: 0.2W/0.2W; Other Tapers: 15mm, 0.025W/0.012W, 20mm: 0.05W/0.025W, 30mm: 0.1W/0.05W, 45mm: 0.125W/0.06W, 60mm: 0.1W/0.1W
Mechanical characteristics
Level push-pull strength: 3.0Kgf Min at 10Sec.
Slide torque: 10gf~100gf
Stopper Strength: 5.0Kgf Min (from the base level to a point of 2mm)
Detent Torque (only center click): 50gf~200gf
Level Wobble: 2(2xL)/20mm Max. (L: Level length both sides)
Durability
Sliding Life: Standard life: 15, 000 Cycles Min.; Long life: 100, 000 Cycles Min.
