Product Specifications

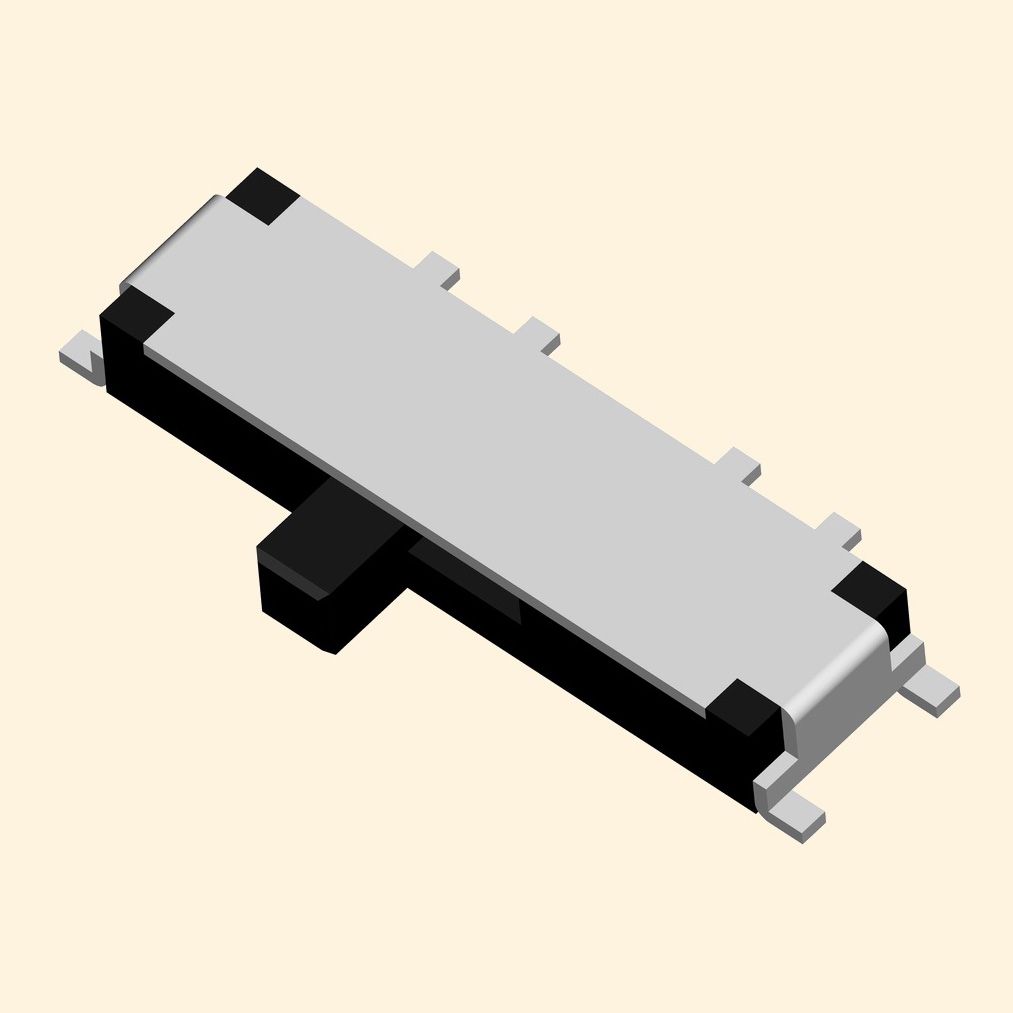

| Prod Model: |
SL661409S04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Control Button |
Product Description
Features:
1. All kinds of variable levels design;
2. Assembling ways: DIP and SMT;
3. The switch operating force equality, good feeling:
4. The terminals state can be design according to requirements.
Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature profile
Material
1. Keystoke: Nylon Black
2. Shell: Stainless Steel Natural
3. Fixed Plate: Phosphor bronze Natural
4. Base: Nylon Black
5. Terminal: Brass Plating Silver
Applications
They can operate household appliances, office equipment, TV, VCR, MP3 etc
|
Basic specfication Parameter |
|
|
|
Electrical Characteristics |
Rating |
See detail spec |
|
Contact Resistance |
≤50mΩ |
|
Insulation Resistanc |
≥100m Ω |
|
Withstand Voltage |
AC500V 1 Minute |
|
Electrical Life |
10,000Cycles above(Load) |
|
Mechanical/Reliability Characteristics |
Operating Force Range |
see detail spec |
|
Mechanical Life |
10,000Cycles (NO Load) |
|
Operating Temperature Range |
"-25+ 80 |
|
Ambient Humidity Used |
≤85%RH |
|
Solder Ability |
245 |
|
Withstand Soldering Temperature |
260 ±5 3S |
