Small Wheel Loaders W136 for Sale

Name: Small Wheel Loaders W136 for Sale
Brand: china-manufacturer-directory.com
SKU: 775003285
Availability: InStock
Rating: 4.4 (43 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 35000-40000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	W136
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dumping Height:	3060mm
Machine Type:	3ton Loader
Applications:	Loading Machine, Earth Moving
Rated Load:	3200kg
Operation Weight:	10500kg
Engine:	Cummins
Gearbox:	Zl50
Tyre Size:	17.5-25
Cabin:	with A/C
Warranty:	One Year
Type:	Medium-sized Loader
Walking Mode:	Wheeled
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New

Product Description

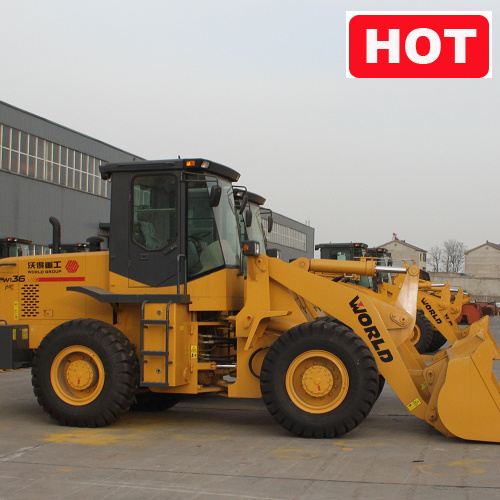

Small Wheel Loaders W136 For Sale

W136II wheel loader is an improved model of W136. It uses ZL50 planet type gearbox which is same as W156. The bigger gearbox provides stronger power. Meanwhile, the rear frame is strengthened. So W136II is better for heavy duty.

Specifications:

Basic Data
Bucket Capacity	1.8m³
Rated Load	3200kg
Travelling Speed
Forward 1st	0-12km/h
Forward 2nd	0-40km/h
Reverse 1st:	0-17km/h
Max.Traction	97kN
Max.Break Out Force	100kN
Min.Turn Radius (outside tyre)	5376mm
Max. Dumping Height	3060mm
Max. Reach	1008mm
Total Hydraulic Cycle Time	≤10.3s
Full Bucket Lifting Time	≤5.6s
Wheel Base	2750mm
Dimensions (LxWxH)	6970x2450x3286mm
Min. Clearance Over Ground	360mm
Operating Weight	10500kg
Diesel Engine
Model	Cummins 6BT5.9 or Yuchai YC6B125
Type	Direct injection, water cooling, 4 strokes
Rated Output	97/92kW
Rated Speed	2200rpm
Max. Torque	560N.m/460N.m
Transmission
Hydraulic Torque Converter Model	Single stage, two phase, four components
Transmission Type	2 forward and 1 reverse gears/hydraulic power shift, planet type
Max. Permissible Temp.	120
Transaxle & Tyre
Drive System	4 wheel drive
Type of main Reducer	Spiral bevel gear, single stage
Type of hub Reducer	Planet gear
Tyre Size	17.5-25
Pressure Of Tyre	0.28-0.32MPa
Working Hydraulic System
Working Pump Type	Gear Pump
System Working Pressure	16MPa
Lifting Cylinder Bore x Stroke	125x816mm
Tilting Cylinder Bore x Stroke	140x553 mm
Steering System
Type	full hydraulic power steering system
Steering Pump Type	Gear Pump
Max. Working Pressure	10MPa
Steering Cylinder Bore x Stroke	80x380mm
Max. Steering Angle	±36 º
Brake System
Type	Caliper disc brake, air over oil activate, 4 wheel brake
Drive Brake System Pressure	0.71-0.784MPa
Parking Brake	Hand brake, drum type
Oil Injection Capacity
Fuel Tank	170L
Engine Oil	15L
Transmission	30L
Hydraulic Oil Tank	170L
Transaxle	30L

World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.

We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.

Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.

Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.

Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
