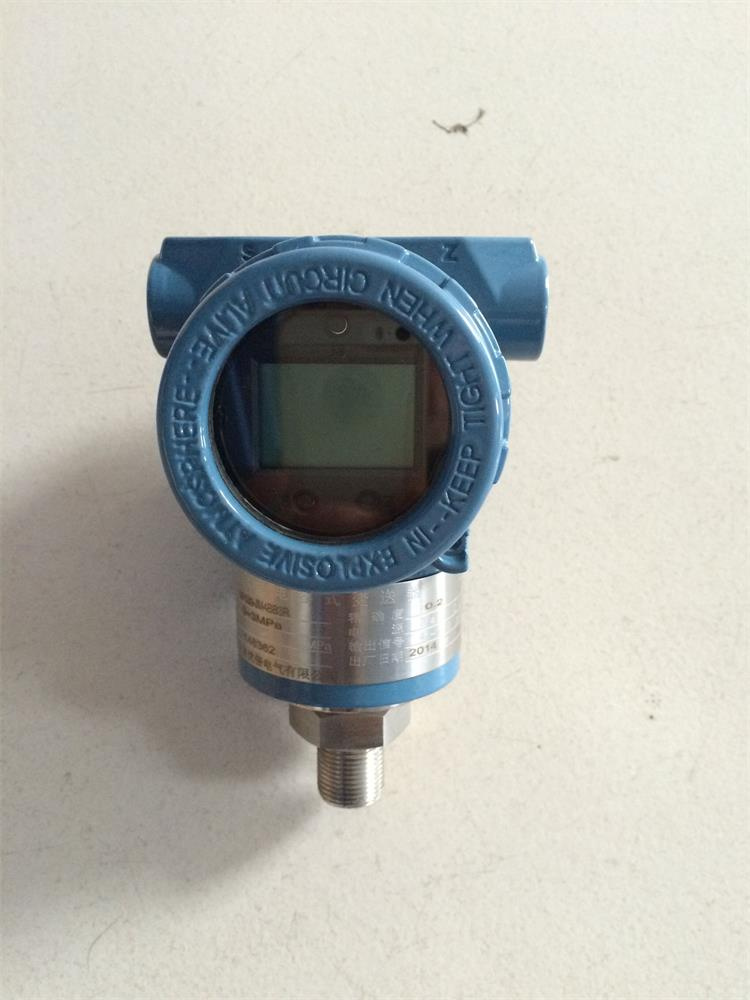

Product Specifications
| Prod Model: |
HG2088 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 4-20mA Pressure Transmitter: |
0-10V Pressure Transmitter |
Product Description
1. High accuracy, good stability.
2. All series have unified structure.
3. Strong interchangeability of parts, strong resist.
Features:
1. Employing hi-quality sensor and exclusive V/I integrated circuit, little peripheral device, high simple and easy maintenance.
2. Little volume, slight weight, convenient installation and debugging
3. Overall and sound design, respectively provide ordinary type, corrosion-proof, intrinsically safe explosionproof type and isolation explosion-proof type.
4. Aluminum die casting outer shell, tri-terminal isolation, hi-temperature baking lacquer protective cover, firm and durable.
5. 4-20mA DC two-wire system, strong interference -resistance ability, long transmitting distance.
6. LED, LCD, pointer, the three kinds of indicating gauge head; Convenient local reading
7. Can be applied to measure viscous, crystallized and corrosive mediums
| Model | A1 | B1 |
| Accuracy | 0.075% 0.1% F@ S 0.25% F@ S 0.5% F@ S |
| Measuring range | -95kPa~60MPa |
| Medium | Liquid, gas and vapor |
| Storing temperature | -40C ~125C |
| Operation temperature | -10C~80C | -40C ~80C |
| Corrosion-proof material | 316 SS | ceramics |
| Effect of temperature | < 0.02%/C | < 0.015%/C |
| Loading resistance | < 750 Ohm |
| Overload ability | Triple span | double span |
| Mechanical protection | IP65 |
| Humidity | < =95% RH |
| Output | Two wire 4~20mA DC four wire 0~10mA DC |
| Related equipment | EXZ231B safety grid |
| Weight | 2.5 Kg |
Jiangsu Hongguang Instrument Factory Co., Ltd. Was established in 1972, originally a state-owned company, a Subsidiary of Suyi Group.
Suyi Group is a group company of Jiangsu Hongguang Instrument Factory Co., Ltd., Jinhu Suyi S&C Co., Ltd., Shanghai Yitena Automation Engineering Co., Ltd., Jinhu Suyi C & T Co., Ltd., Jiangsu Maiteer Metals Manufacturing Co., Ltd., & Jiangsu Huarun Cables Co., Ltd.It is "Jiangsu Spark leading" Enterprise and "Jiangsu Province instrument cable brand development base". Suyi Group is a manufacturer of industrial automation control devices, industrial automation instrumentation, industrial wireless control systems and wireless sensors.
