SMD LED PCB Circuit Board with Black Solder Mask

Name: SMD LED PCB Circuit Board with Black Solder Mask
Brand: china-manufacturer-directory.com
SKU: 732050495
Availability: InStock
Rating: 4.4 (148 reviews)

Supplier:	Wells Electronic Technology Ltd.
Price:	US $ 2-10/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CIF,DDP

Product Specifications

Prod Model:	smd led circuit board
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electronic Test:	100%
Certification:	RoHS, UL, SGS, ISO, Ipc, CE
Finished Board Thickness:	0.2mm ~ 7.0mm(8mil-276mil)
Max. PCB Size:	410mm X 600mm(16.2" X 23.6")
Min Line Width/Spacing:	4/4mil(0.1/0.1mm)
Min Through Hole:	10mil(0.25mm)
Soldermask Color:	Green, White, Black, Red, Yellow, Blue,
Silkscreen Color:	White, Black, Yellow, Blue
Foot Pin:	So, Sop, Soj, Tsop, Tssop, Qfp, BGA
Min Component:	0201
Material:	Aluminum
Type:	Rigid Circuit Board
Dielectric:	FR-4
Flame Retardant Properties:	V0

Product Description

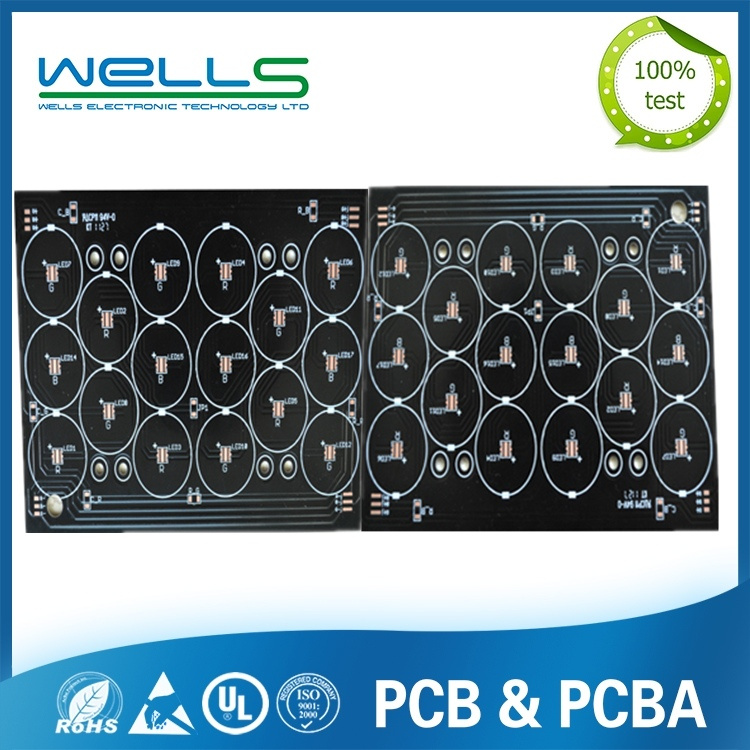

FR4 or aluminum material, Taiyo black solder mask, full board and LEDs test.
With 14 years experience, Wells offer you PCB copy, PCB manufacturing, PCB assembly, wire harness assembly, IC programming, components sourcing, PCBA Functional test, etc.

Our service
1. Your inquiry related to our products or prices will be responded within 24 hours.
2. Well-trained and experienced staffs to answer all your enquiries professional.

Incoming Quality Control
Make inspection according to International Standard and customer requirements.

In-Process Quality Control
Standard manufacturing process and detailed work instructions for each operation station in production line to make sure that operation standard are implemented correctly.

Outgoing Quality Control
We inspect and control strictly the outgoing products quality according to the international standards and customer standards, follow up the quality performance of products after sales and take rapid and effective improvement actions when there are any abnormal quality feedbacks.

Product Return Process
1. Contact us about the defect within 2 weeks upon receiving the products
2. Send detailed digital photos and description of the defect.
3. Wells engineers will review your request and if the products are non-conforming per customer specifications or correlative standard, we will process your request.
4. Upon your approval, we will address the problem and re-run your order based on the original order request. There will be no additional charge.
5. If you quality for a refund, we will refund 100% of your order amount, not including shipping costs.

PCB Assembly Capability
	Items	Capability
1	Min. IC Pitch	0.30mm(12mil)
2	Foot Pin	SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA
3	Min. Chip Placement	01005
4	Max. PCB Size	410mm x 600mm(16.2" x 23.6")
5	Min. PCB Thickness	0.35mm(13.8mil)
6	Maximum BGA Size	74mm x 74mm(2.9" x 2.9")
7	BGA Ball Pitch	1mm ~ 3mm(4mil ~ 12mil)
8	BGA Ball Diameter	0.4mm ~ 1mm(16mil ~ 40mil)
9	QFP Lead Pitch	0.38mm ~ 2.54mm(15mil ~ 100mil)
10	Package	Anti-static Bubble Bag & Carton

PCB Capability
	Items	Capability
1	Layers	1 ~ 30 layers
2	Base Material	FR4, High Tg FR4, Halogen Free, Isola, Rogers, Aluminium
3	Finished Board Thickness	0.2mm ~ 7.0mm(8mil-276mil)
4	Aspect Ratio	10:1
5	Copper Thickness	1/3oz ~ 7oz
6	Surface Finishing	HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, Carbon, etc.
7	Max gold plating thickness	50 microinch
8	Min. Trace Width/Space	0.075/0.075mm(3/3mil)
9	Min. Finish Holes Size	0.1mm(4mil) for laser holes; 0.2mm(8mil) for mechanical holes
10	Max.Finshed Size	600mm x 900mm (23.6" x 35.43")
11	Hole Tolerance	PTH:±0.076mm(+/-3mil), NTPH:±0.05mm(+/-2mil)
12	Soldermask Color	Green, White, Black, Red, Yellow, Blue,
13	Silkscreen Color	White, Black, Yellow, Blue
14	Impedance Control	+/-10%
15	Profiling Punching	Routing, V-CUT, Chamfer
16	Hole tolerance	PTH:±0.076,NTPH:±0.05
17	Special Holes	Blind/Buried holes, Countersunk holes
18	Reference Standard	IPC-A-600H Class 2, Class 3, TS16949
19	Certificate	UL, ISO9001, ROHS, SGS
20	Package	Vacuum & Carton

FPC Capability
	Items	Capability
1	Types	Single-sided, Double-sided, Multi-layers (max 6 layers) and Flex-Rigid PCB
2	Surface Finishing	HASL(LF), Gold plating, Electroless nickel immersion gold,Immersion Tin, OSP(Entek)
3	Base Material	Polyimide(Kapton), Polyester(PET), FR4
4	Copper Foil	ED/RA
5	Min. Line Width	0.05mm(2 mil)
6	Min. Line Spacing	0.05mm(2 mil)
7	Min. Hole Size	0.2mm(8mil)
8	Max. Board Size	400mm x 800mm(15.8" x 31.5")
9	Min. Board Thickness	0.1mm(4mil)
10	Min. Solder Mask Thickness	10um(0.4mil)
11	Solder Mask Types	Green, Yellow, Black, White, Blue, Red, Clear
12	Profiling	Punching, Routing, V-cut
13	Soldering Thermal Resistance	300°C/10 seconds
14	Peeling Strength	≥1.4kg/cm
15	Surface Resistance	105mΩ
16	Insulation Resistance	105mΩ
17	Dielectric Strength	9.8x105v/cm
18	Flammability	UL-94V-0
19	Performance Test	100% electrical and electricity performance test

Welcome to contact us, all your inquiry will be replied within 24 hours.

Wells Electronic Technology Ltd. Established in 2000, located in the largest electronic market-Shenzhen, is a professional PCB & PCBA manufacturer with One-stop Service. With 13 years experience, Wells Electronic can provie you PCB design, PCB manufacture, components procurement and PCB assembly services.

PCB Manufacture:

Wells is a leader in the manufacture of high-tech printed circuit boards. We specialize in fabricating high precision, high density and high reliability PCB from 2 to 30 layers. We are certified with ISO9001: 2000 and UL approval. All products will be RoHS compliance.

PCB Assembly:

Wells has professional purchasers who are on the component market. Our factory is equipped with MPM solder paste printer, Siemens D-series high-speed chip shooters, YAMAHA high-speed chip shooters, BTU reflow furnaces and a full set of lead-free equipments. We can deal with all kinds of integrated circuits such as SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA.

PCB Design:

Wells has gathered a large number of engineers who are outstanding in the domestic circuit design industry and have over 10 years of experience in design. We have specially set up LED products design, mobile phone design project group, notebook design project group, backplane design project group and communication products project group, etc.

No order is too small or too large. Welcome you to require a quote!
