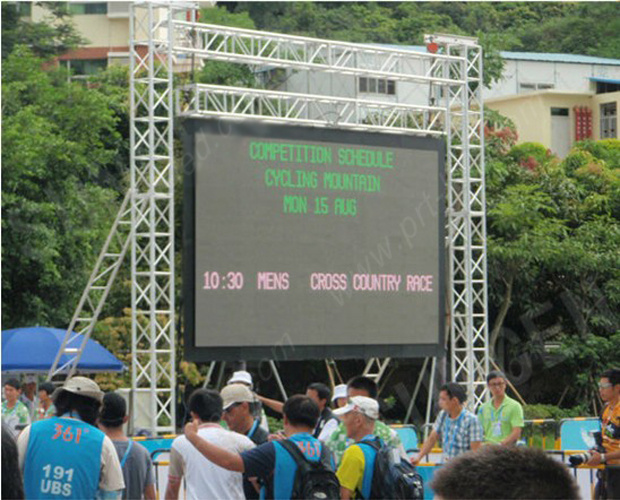

SMD P8 Outdoor Full Color LED Display with Panel 640X640mm
Product Specifications
| Prod Model: |
P8-outdoor 640 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Type: |
SMD3535 |
| Module Size: |
320X320mm |
| Cabinet Size: |
640X640mm |
| Cabinet Material: |
Die-Casting Aluminum |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Display Type: |
LED Video Display |
| Certification: |
FCC |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625dots Per Sqm |
| Scanning Mode: |
1/5scan |
| Application: |
Stage Performance, Advertising |
Product Description
SMD P8 Outdoor Full Color LED Display with panel size of 640x640mm die-casting aluminum, strong and durable, long life span and antirust, good performance
Product Features:
1. SMD3535 led encapsulation confirm the wide view angle and good uniformity
2. Only with 60mm thickness, super slim, small panel size of 640X640mm
3. Made with Die-casting Aluminum, light weight and portable
4. High Definition and high brightness
5. Good Waterproof, good for outdoor rental
6. The cabinet design and size are suit to outdoor SMD P8, SMDP10, P6.67
| P8 Outdoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 8.0 |
| Pixel Density | Dots/sq.m | 15625 |
| Pixel Configuration |
| SMD3535 |
| Cabinet Resolution | dots | 80×80 |
| Refresh Rate | Hz | ≥1920 |
| View Angle(H/V) | ° | 140/140 |
| Brightness | nits | ≥5500 |
| Gray Scale | Bit | 16 |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 1200/400 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 640×640 |
| Cabinet Material |
| Die-cast Aluminum/Iron |
| Cabinet Weight | Kg | 10 |
| Module Size(W×H) | mm | 320×320 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/4 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
