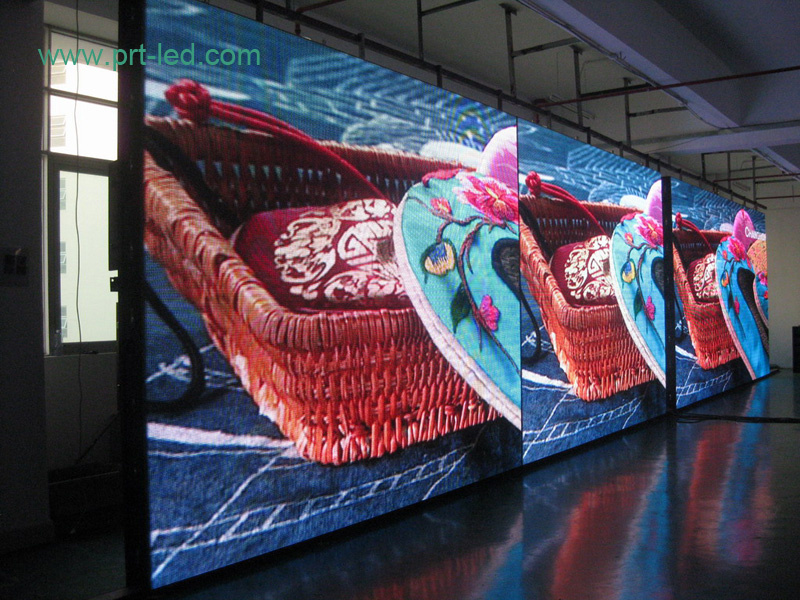

SMD3535 Outdoor LED Display P10 with IP65
Product Specifications
| Prod Model: |
P10-outdoor SMD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD3535 |
| Module Size: |
320X160mm |
| Module Resolution: |
32X16dots |
| Cabinet Size: |
960X960mm |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
350W / m² |
| Application: |
Advertising, Stage Performance, Rental |
Product Description
SMD3535 outdoor led display p10 with good waterproof ,good performance
Product Features:
1. SMD led encapsulation confirm wide view distance and high brightness
2. Good waterproof IP65, long life span>100000Hours
3. High pixel density, High definition, Good uniformity
4. With Rental design Cabinet, easy and quick to assemble without tools in short time
5. Low power consumption, low noise created, low transportation costs, and low installation costs.
6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.
7. Widely used for commercial led display, advertising led display, stage led display, mobile led display. Traffic led display, rental led display, sports led display etc.
| P10 Outdoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 10.0 |
| Pixel Density | Dots/sq.m | 10000 |
| Pixel Configuration |
| SMD3535 |
| Cabinet Resolution | dots | 64×64 |
| Refresh Rate | Hz | ≥1800 |
| View Angle(H/V) | ° | 150/120 |
| Brightness | nits | ≥5000 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 1200/400 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 640×640 |
| Cabinet Material |
| Aluminum |
| Cabinet Weight | Kg | 15 |
| Module Size(W×H) | mm | 320×160 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/4 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
