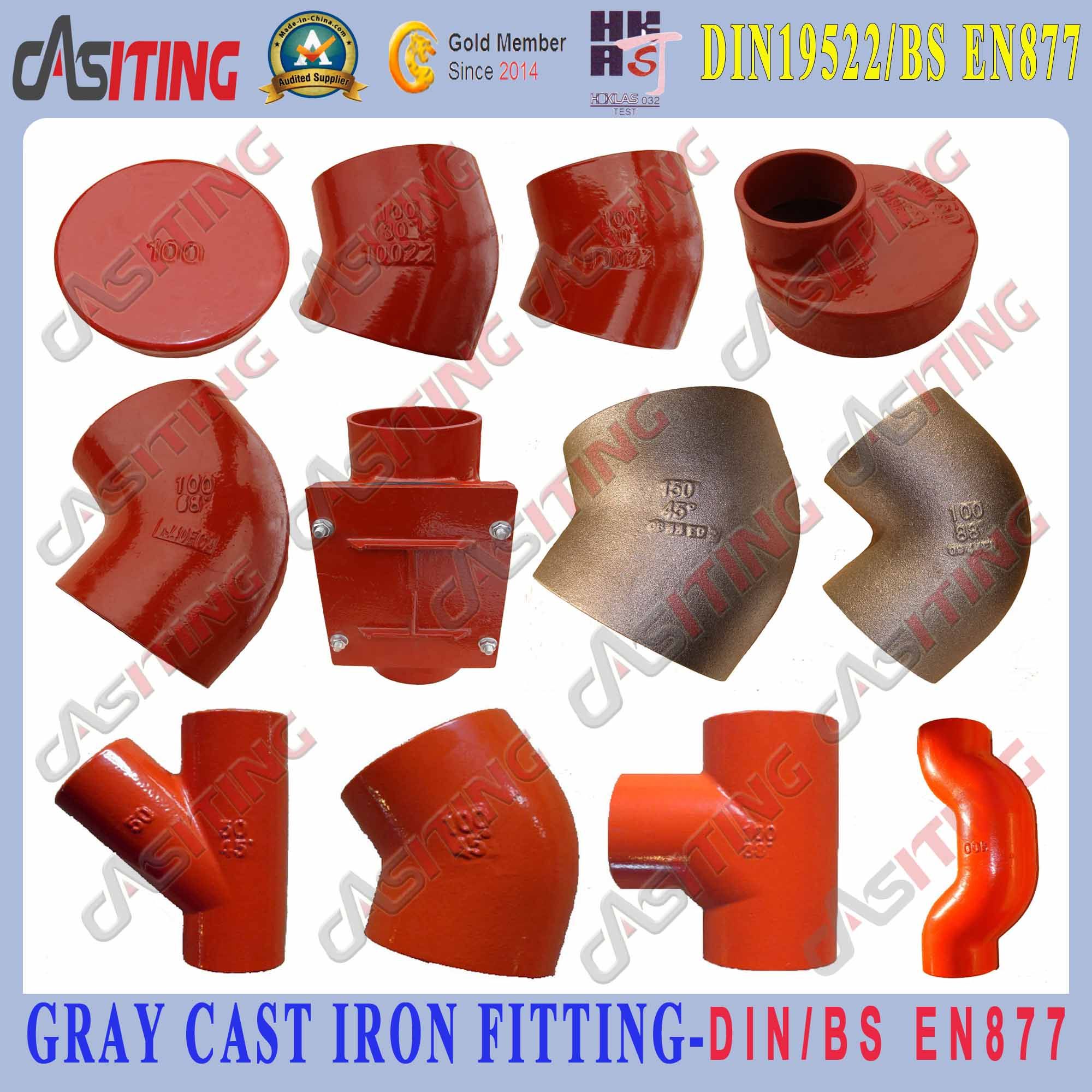

SML EN877 Gray Cast Iron Fitting
Product Specifications
| Prod Model: |
DIN EN877 FITTING |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Standard: |
DIN En877 |
| Place Of Origin: |
Hebei, China |
| Application: |
Water Drainage, Sewer Water, Sanitary Drainage |
| Material: |
Grey/Gray Cast Iron |
| Coating: |
Epoxy Paints Baking, Epoxy Resin Powder Coating |
| Size: |
Dn50 to Dn300 |
| Connection: |
Stainless Steel Coupling |
| Type: |
Cast Iron Pipes |
| Joint Type: |
Flexible Joint |
| Section Shape: |
Round |
| Shape: |
Round |
| Customized: |
Customized |
| Gasket Material: |
EPDM |
| Usage: |
Water Drainage |
| Certification: |
DIN En877 BS En877 |
Product Description
1. EN877 is the European standard which difine the materials, dimensions, coatings etc. of gray cast iron pipes and fittings which can be used for non-pressure and pressure pipe lines-of building drainage system as well as connecting drains. Our pipes and fittings comply with the standard and surpassed the standard of DIN 19522, ISO6594
2. Material features of the pipes and fittings
the pipe and fitting is manufactured from gray cast iron which means an iron and carbon alloy with high graphite content is existing in lamella form and finely distributed within the metallic base compound so that the materials is having the proformance of high strength, wear and temperature resistance, excellent corrosion resistance, very high damping capacity, and this make the pipes and fittings durability, fire resistance, silent operation-even without special insulation or sound proofing.
3. SML Coating
For the pipes, the outside surface are coated with a reddish brown base coating, the inside surface are coated with a permanent cross-linked epoxy resin coating which highly resists against chemical and machanical influences.
For the fitting, we have two coatings: high quality cross-linked epoxy resin paints dip baking coating on outside and inside; epoxy resin powder electrostatic spraying coating on the outside and inside surface.
4. All of our pipes and fittings has passed the test of Resistance to Temperature Cycling of Internal Coating for Cast Iron Pipes and Fittings[BS EN877:1999+A1:2006 Clause 5.7.2.7]
5. Characteristic of Pipes and Fittings:
a. Non-Combustible
b. Noise Reduction
c. 100% Recyclable, No Waste of Resource
d. Simple in Design
e. Easy Access for Maintenance
f. Not Sensitive to Heat and Cold
g. Permanently Perfect Appearance
h. Optimum Corrosion Protection
i. High Durability
j. High Abrasion Resistance
6. DIMENSIONS of PIPES and FITTINGS unit:mm | DN | External Diameter DE | | |
| | Norminal Value | Tolerance | Norminal Value | Minimum Value |
| 40 | 48 | +2 -1 | 3.0 | 2.5 |
| 50 | 58 | +2 -1 | 3.5 | 3.0 |
| 70 | 78 | +2 -1 | 3.5 | 3.0 |
| 75/80 | 83 | +2 -1 | 3.5 | 3.0 |
| 100 | 110 | +2 -1 | 3.5 | 3.0 |
| 125 | 135 | +2 -2 | 4.0 | 3.5 |
| 150 | 160 | +2.5 -2.5 | 4.0 | 3.5 |
| 200 | 210 | +2.5 -2.5 | 5.0 | 4.0 |
| 250 | 274 | +2.5 -2.5 | 5.5 | 4.5 |
| 300 | 326 | +2.5 -2.5 | 6.0 | 5.0 |
| Straightness of pipes: 4.5mm for DN40~DN70 66mm for DN75~DN300 |
| Pipe Length: 3000mm±20mm |
| Fitting Length Tolerance:±5mm |
7. Sealing Zone of Fittings unit:mm | DN | Length T of Sealing Zone | Lower Deviation on T |
| 40 | 30 | -5 |
| 50 | 30 |
| 70 | 35 |
| 75/80 | 35 |
| 100 | 40 |
| 125 | 45 |
| 150 | 50 |
| 200 | 60 | -4 |
| 250 | 70 |
| 300 | 80 |
Shijiazhuang Casiting Trading Compay, founded in 2013 and organized by professional team consisting of international trade, cast engineer, machinery designing engineer, quality control&inspesion, is a new style&comprehensive modern company which is specialized in manfacturing and supplying gray cast iron pipes, fittings, stainless steel couplings, concrete pipe making machine, culvert pipe making machine, cage welding machine, concrete utility pole making machine. Our team have been cooperating with two pipe factories, 3 fitting foundries, 2 coupling factories, 3 machine&machinery companies for many years. The price we are offering is original factory price. In the past years, our factories has been specialized in manufacturing&supplying decades thousands tons of cast iron pipes&fittings, hundreds sets of machineries for many customer from the world such as Europe, Asia, Africa, Middle East, America, Australia.
We can guarantee you the followings:
1. Supplying complete products range and sizes from DN40 to DN300, including the DE75, DN70 special for Europen market
2. Cast iron pipes, fittings, stainless steel couplings are manufactured completely according to DIN EN877/BS EN877/ISO6594/ASTM A888
4. Supplying concrete pipe making machine, culvert pipe making machine, concrete pole making machine, vertical extrusion concrete pipe making machine(packer head concrete pipe making machine)
5. Production shall be executed strictly by ISO9001: 2008
6. Products is not only checked by our own quality checking system, but also tesed an approval by the independent institue additionally.
7. Besides the above main products, we also provides other products such as probiotics.
EQUOLITY, HONESTY, FAITHFULNESS, MUTUAL BENEFIT is our persistent tenet.
Sincerely looking forward to cooperating with you!
