Product Specifications
| Prod Model: |
PW-509S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Pw-509s |
| Material: |
ABS |
| Color: |
White |
| Size: |
102*35mm (with Base) |
| Weight: |
105g(with Battery) |
| Power Source: |
9V Block Battery/PP3 |
| Alarm Sound: |
85db at 10 Feet(3m) |
| Certificate: |
CE, RoHS, En 14604 |
| Quality Guarantee: |
5 Years |
| Type: |
Smoke Alarm |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Active |
| Certification: |
En14604 NF292 |
| Application: |
Indoor |
| Working Principle: |
Electro-Optical Type |
| Transmission Mode: |
Wireless |
| Alarm Volume (',within 1m): |
≥80dB |
| Usage: |
Smoke |
| Sensor Type: |
Electrochemical |
| Receive Frequency: |
85db at 3m |
Product Description

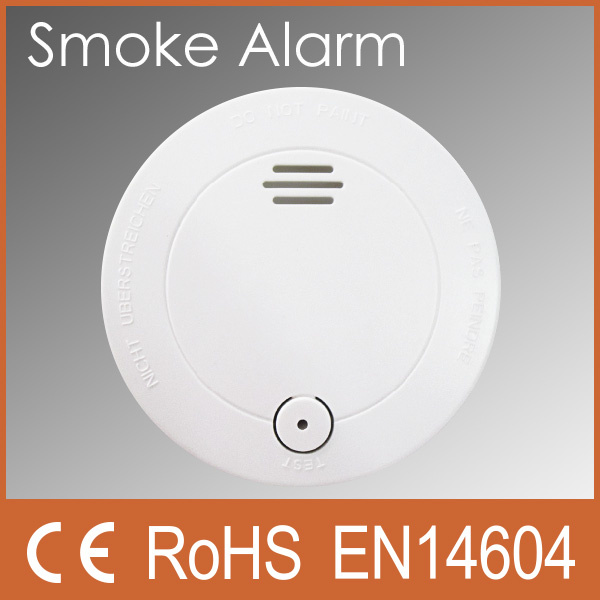

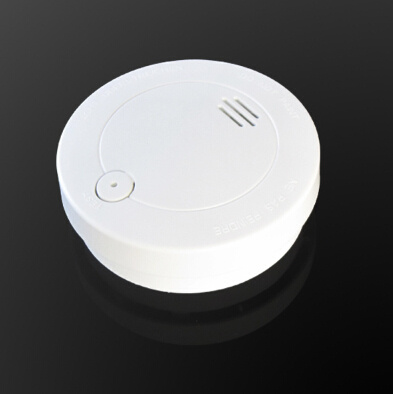

smoke alarm en 14604 approved PW-509S
This is a battery powered smoke detector, equipped with photoelectric sensor to alert you and your family to the dangers of smoke and fire.
It is EN 14604 approved, and can conform to UL and NF Standards. It features UL-approved Photoelectric sensing components with precise smoke detection.This smoke detector is well suited to effectively respond to a wide spectrum of fires including slow smoldering fires, often generated in households. TEST button allows you to test the alarm's electronic circuitry, horn and battery function.

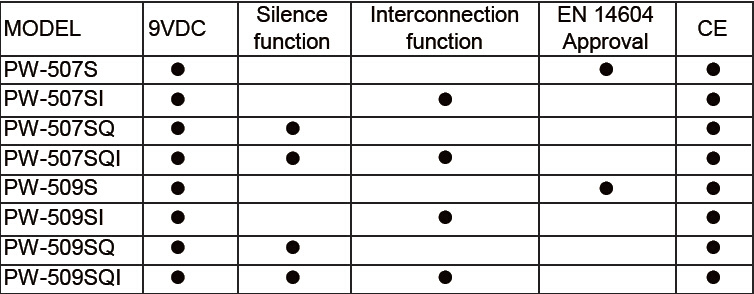

different models:
technical specification:Photoelectric Smoke Alarm
1) Material: ABS plastic
2) Assembly no wiring, size: Dia.104xH35mm
3) Power supply:9V carbon zinc battery/PP3(battery included)
4) Standby current: 8μA, Alarm current: 16mA
5) Environment temperature: -10°C ~ +50°C
6) Environment humidity: 0 to 95%(40±2°C)
7) Alarm decibel: louder than 85dB at 10feet(3 meters)
8) Tamper Resist locking pin
9) Test button:To verify the proper functioning of the detector
11)Smoke sensitivity: conform to en 14604 standard
12)CE, ROHS, EN 14604

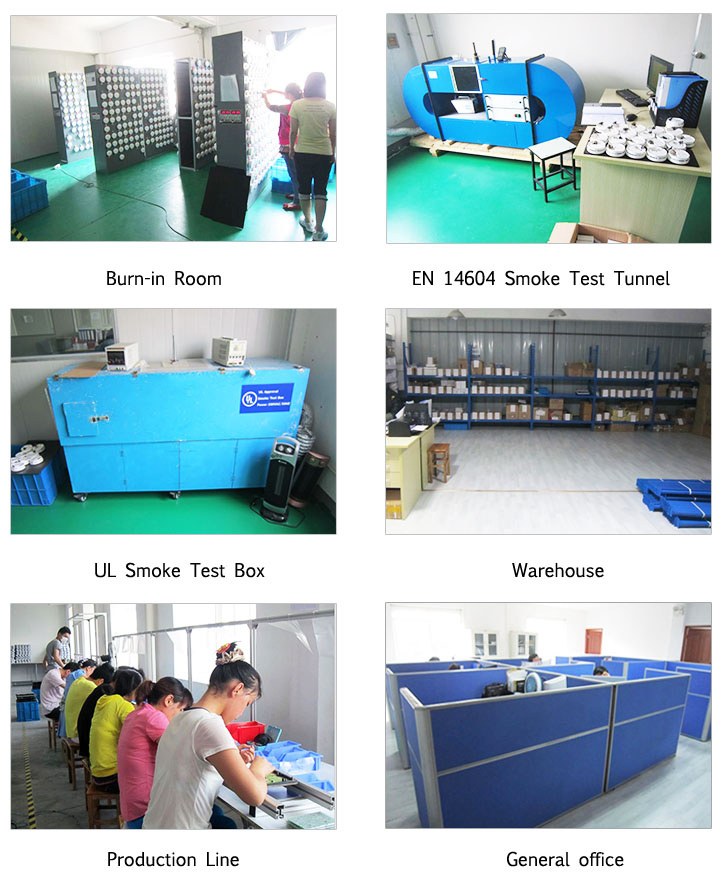

13)5 years quality guarantee our factory:
FAQ:1. Are you a factory or trading company?
A: We are a factory. We are a professional factory producing smoke alarms, gas alarms, co alarms, water alarms, etc...
2. Where is your factory? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 2 hours train from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Ningbo Hi-Tech Park Peasway Electronic Technology Co., Ltd. is a professional design and manufacturing company of fire and security alarm products, with years of experience in developing and manufacturing high quality smoke, fire, toxic gas detection and air quality related products.
Our products cover smoke detectors, heat detectors, carbon monoxide detectors, gas detectors, water detectors. In addition, system detectors, wireless RF detectors, and various accessories are coming up at the end of year 2011.
Many of our products have obtained CE, RoHS certificates, some have EN14604, NF, UL certificates. With years of good business operation and services instructed by strict production management and quality control under ISO9001, we have established good relationships with customers from Europe, North American, South America, Australia and other countries.
We offer engineering and manufacturing services for the best return of investment on your projects in fire, security and safety applications. With strong production capacity, we are confident to meet various demands from our clients. We have independent testing laboratory and technical R&D department for continuous development and updating of our products. We also offer OEM, ODM and EMS services for some famous electric product companies and manufacturers from Europe and Australia.
Warmly welcome customers from allover the world to visit our factory and establish business relationship with us.
