| Supplier: | Zhejiang Sicher Imp. & Exp. Co., Ltd. |
|---|---|
| Price: | US $ 12000-30000/Set |
| Min Order: | 1/Roll |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | GRF10B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: | Brand New |
| Rated Capacity: | 1000kgs, 2000kgs, 3000kgs |
| Car Door: | Telescopic Opening |
| Car Ceiling: | Painted Steel |
| Car Wall: | Painted Steel |
| C. O. P: | Hairline Stainless Steel |
| Car Floor: | Chequer Steel |
| Sill: | Alloyed Hard Aluminum Reinforced Iron |
| Load Capacity: | 1000kg |
| Drive Mode: | AC |
| Open & Close Type: | Automatic |
| Type: | Goods Elevator |
| Speed: | 0.5m/S |
| Standard Function | ||
| Travel Function | Collective selective controll | Collective selective controlling without the presence of operator |
| Reopen with hall call | In the door shutting process,press reopen with hall call button can restart the door | |
| Car stops and door open | The lift decelerates and levels,the door only opens after the lift comes to a complete stop | |
| Automactic returning to the base station | When the traffic flow is low, elevator without receiving commanding signals will automatically return to the base floor and standby with the door closed | |
| Directly running | Under the operator's control, after the direct running button is pressed, the elevator only runs directly according to the directives from inside the car and does not respond to any calls from outside. | |
| Automatic pass without stop | When the car is crowded with the passenger or the load is close to preset value,the car will automatically pass the calling landing in order to keep maimum travel efficiency | |
| Safety function | Repeated door closing | If the lift can not close the door due to certain obstacle or interference, the lift will reopen or re-shut the door until sundries results in more safe and reliable lift travel |
| Power on re-leveling | A power failure might cause the elevator to stop between two floors. However, upon recovery of the power, the car automatically moves to the nearest leveling floor. | |
| Overload holding stop | When the car is overload,the buzzer rings and stops the lift in the same floor | |
| Anti-stall timer protection | The lift stops operation due to slippery traction wire rope | |
| Start protection control | If the lift does not leave door zone within the designated time after it gets started,it will stop the operation | |
| Inspection operation | When the lift enters into inspection operation,the car travels at inching running | |
| Up/down over-run and final limit protection | The device can effectively prevent from the lift's surging to the top or knocking the bottom when it is out of control.It results in more safe and reliable lift travel | |
| Down over-speed protection device | When the lift downs 1.2 times higher than the rated speed, this device will automatically cut off control mains,stop the motor running so as to stop lift down at over-speed. If the lift continues to down at over-speed, and the speed is 1.4 times higher than rated speed, safety tongs act to force the lift stop in order to ensure the safety | |
| Upward over-speed protection device | When the lift up speed is 1.2 times higher than rated speed, the device will automatically decelerate or brake the lift | |
| Photocell protection | In the door open and close period, infrared light that covers the whole door height is used to probe the door protection device of both the passengers and objects. | |
| Emergency function | Emergency car lighting | Emergency car lighting automatically activated once power failure |
| Five way intercom | Communication amid car,car top,lift machine room,well pit and rescue duty room through walkie-talkie | |
| Fire emergency return | If you start key switch in main landing or monitor screen,all the callings will be cancelled.The lift directly and immediately drives to the designated rescue landing and automatically opens the door | |
| Man-machine interface | Micro-touch button for car call and hall call | Novel micro-touch button is used for operation panel command button in the car and landing calling button |

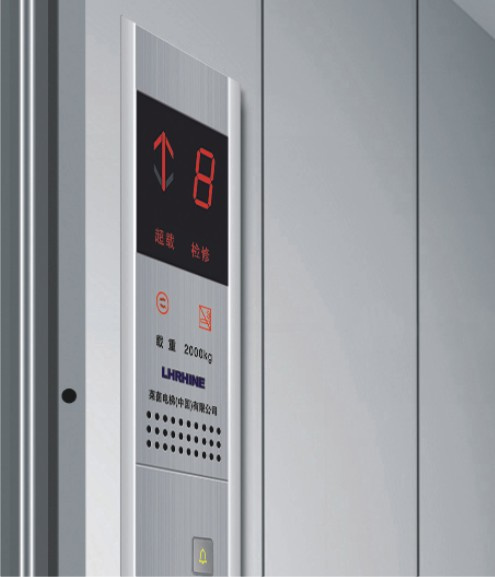

| Floor and direction indicatior inside car | The car shows the lift floor location and current travel direction | |
| Floor and direction indicator in hall | The landing shows the lift floor location and current travel direction | |
| Energy-saving function | Car ventilation, light automatic shut off | If there is no calling or command signal within the stipulated time, the car fan and lighting will be automatically closed in order to save the energy |
| Remote shut-off | The lift can be called to main landing(after finishing the service) through the key switch and automatically exists the service | |
| Optional Function | ||
| Travel Function | Operation control at stations | Through turning the key switch insatalled on a specific floor( optional), the elevator can e arranged to stop service for a certain floors. |
| Door open time extending | Press special button in the car, the lift door keeps open for certain period of time | |
| Bell | In emergency conditions,if bell button above car operation panel is continuously pressed,electric bell rings on top of the car | |
