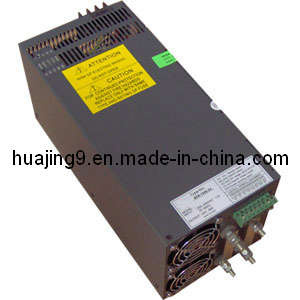

Single output switching power supply 1500W
With CE Approval
2 years quality gurantee
Competitived price and high reliability
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effect
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave
| Model Performance | SCN-1500-12 | SCN-1500-15 | SCN-1500-24 | SCN1500-48 |
| DC output voltage | 12V | 15V | 24V | 48V |
| Output Voltage Tolerance (Note 2) | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated output current | 125A | 100A | 62. 5A | 32A |
| Output Current Range | 0 -125A | 0 -100A | 0-62. 5A | 0 -32A |
| Ripple and noise (Note 3) | 360MVp-p | 360mVp-p | 360mVp-p | 300mVp-p |
| Into the line of stability (Note 4) | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Load stability (Note 5) | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| DC output power | 1500W | 1500W | 1500W | 1500W |
| Efficiency | 83% | 84% | 85% | 87% |
| DC voltage adjustable range | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V |
| Input Voltage Range | 190V-240VAC 47-63Hz |
| Input Current | 7A /220VAC |
| Inrush Current | 50A 230VAC |
| Leakage | <3.5mA/240VAC |
| Overload | 105% -135% Type: Cutting Output Reset: Automatic restore |
