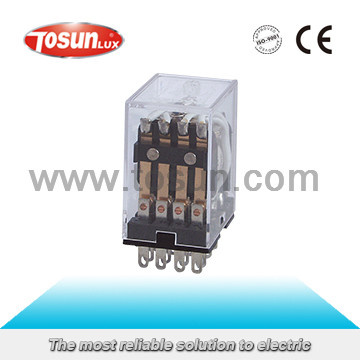

Socket Mounting PCB General Relay

Name: Socket Mounting PCB General Relay
Brand: china-manufacturer-directory.com
SKU: 755517335
Availability: InStock
Rating: 4.6 (54 reviews)

Supplier:	Wenzhou Tosun Electric Co., Ltd.
Price:	US $ 0.6-1.3/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	MY-2, MY-3, MY-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Mounting Method:	Printed Circuit Board, Outlet
Terminal Layout:	2z, 3z or 4z
Contact Capacity AC:	5A 250V
Contact Capacity DC:	5A 30V
Contact Resistance:	≤50m Ohm
Insulation Resistance:	≥100m Ohm
Mechanical Life:	10^5 Operations
Electrical Life:	10^7 Operations
Operating Temperature:	-40°c~+60°c

Product Description

Specification

Model		MY-2	MY-3	MY-4
Terminal Layout		2Z	3Z	4Z
Contact Capacity	AC	5A 250V	5A 250V	3A 250V
Contact Capacity	DC	5A 30V	5A 30V	3A 30V
Contact Resistance(m)		<=50m	<=50m	<=50m
Insulation Resistance(m)		>=100m	>=100m	>=100m
Dielectric strength	BOC	1000VAC	1000VAC	1000VAC
Dielectric strength	BCC	1500VAC	1500VAC	1500VAC
Coil nominal voltage	AC	6 to 240V	6 to 240V	6 to 240V
Coil nominal voltage	DC	6 to 220V	6 to 220V	6 to 220V
Coil nominal power	AC	0.9VA to 1.2VA	0.9VA to 1.2VA	0.9VA to 1.2VA
Coil nominal power	DC	≤0.9W	≤0.9W	≤0.9W
Electrical Life(OPS)		10^5	10^5	10^5
Mechanical Life(OPS)		10^7	10^7	10^7
Operating Temperature		-40~+60	-40~+60	-40~+60
Weight(g)		<=35	<=35	<=35
Mounting Methods		Printed-circuit board, Outlet	Printed-circuit board, Outlet	Printed-circuit board, Outlet

Why us?
1. 24 years' experience. We have been in this field since 1994.

2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m².

3. Reliable quality. Professional inspectors supervisng the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates.

4. Favorable service. Experienced salesmen to handle business for you specially.

5. Attractive packing. Particular designers in charge of packing material in a unique style.

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
