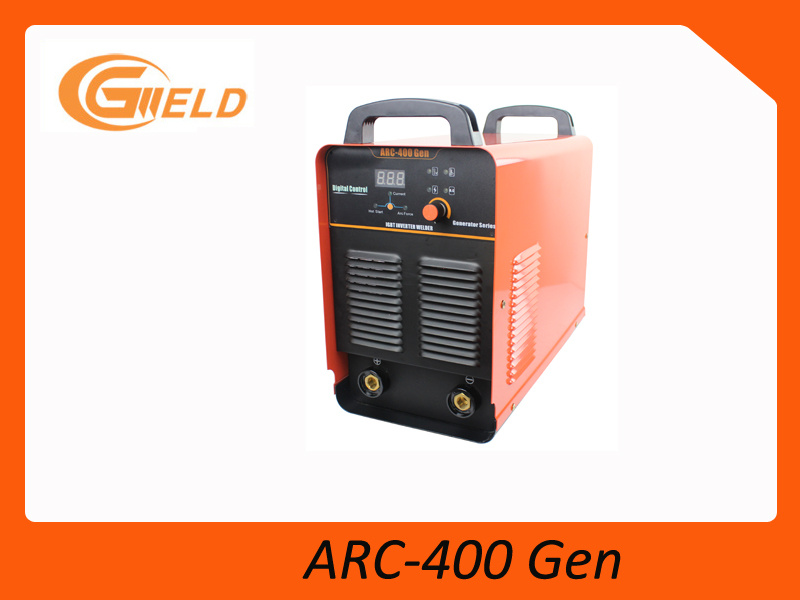

Software Control MMA Series
| Price: |
US $ 450/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T |
Features:
1. Using Digital MCU technology to confirm the machine can be working very
well in the poor voltage situation or generator (working voltage from 270V-460V, normal hardware machine has been breakdown below 340V).
2. Using high performance MCU, speedy, excellent real-time response;
3. Adopt IGBT & advanced PWM Inverter technology;
4. High duty cycle, high efficiency;
5. Anti-sticking, arc force, hot start;
6. Compact, light weight, portable;
Compatible POWER GENERATOR, VRD, EMC, LIFT TIG, CEL (Cellulose
electrode: E6010, E7018) function;
(Add different function module, the parameter and weight will change,and
also will be extra charged.)
7. Intelligent Protection: over-voltage, low-voltage, over-current, over-heat;
Application:
1. Suitable for most industrial metals and alloys welding;
2. Applicable electrode diameter: ¢1.6- 6.0mm;
Parameters:| Item | ARC400Gen |
| Rated Input Voltage(V) | AC400±15%(3PH) |
| Input Frequency(Hz) | 50/60 |
| Rated Input Power(KVA) | 17.0 |
| Rated Input Current(A) | 25 |
| Welding Current Range(A) | 10 ~350 |
| Arc Force Current Range(A) | 0-100 |
| Rated Output Voltage(V) | 36 |
| No-load Voltage(V) | 65 |
| Duty Cycle Imax(25ºC) | 60% |
| Duty Cycle 60%(25ºC) | 350A |
| Efficiency(%) | 88 |
| Protection Class | IP21 |
| Insulation Class | F |
| Electrode Diameter (mm) | 1.6~60 |
| Weight(Kg) | 17.8 |
| Dimension(mm) | 460*230*410 |
| Prod Model: |
ARC400Gen |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Welding Machine, MMA Welder: |
Inverter Welding, DIY Welding |
| Type: |
ARC Welders |
| Current: |
Inverter Current |
| Application: |
Inverter Welding Machine |
Established in 2000, Shenzhen G-Weld Electrical Appliance Co., Ltd, is one of the leading manufactures and exporters, specializing in R& D, production and selling of inverter welding machines, air plasma cutting equipment, stud-welding machines and accessories. Our company is situated in Shenzhen Special Economic Zone, close to Hongkong and Macau, and very convenient for transportation by Sea, Land and Air.
Using the latest inverter technology including hardware & software, our products have three major advantages: Smallest size, light weight and perfect performance. Currently, we possess 13 series of product categories with more than 50 models, including Inverter MMA, TIG, MIG, CUT & STUD-Welding series etc.
Our company has obtained CE, CCC and ISO9001: 2000 certificate. The reliability and stability of our products is what concerns most. We offer quality warranty to protect customers? Profit and try to maximize customers? Satisfaction. With excellent quality, competitive price and optimal service, our products are popular in the international market, such as, China, Southeast Asia, Europe, South Africa, Middle East and America etc.
With the development of more than ten years, our company has formed its own business philosophy---Technology Innovation, Excellent Quality, Prompt Response, and Customer Appreciation, and we will try our best to meet the requirement of customers & market. Meanwhile, we sincerely hope we are going to head into a better future together with you.
