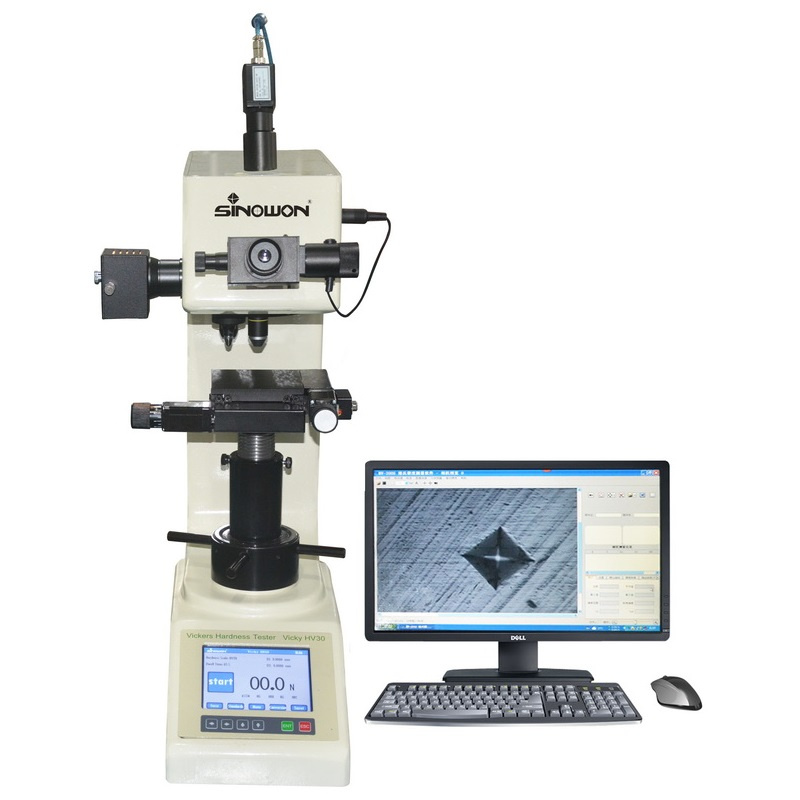

Software Control Semi-Automatic Vickers Hardness Test Instrument with Touch Screen

Software Control Semi-Automatic Vickers Hardness Test Instrument with Touch Screen
Supplier: Dongguan Sinowon Precision Instrument Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: ZHV-30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motorized X-Y Platform: Dimension: 110X110mm; Travel: 25mm; Resolution: 1u
Vision System: High Definition USB Camera, 1X Camera Adapter
Measurement Software: Auto Vickers Measurement Software Mv500
Dwell Time: Adjustable 1-60s
Hardness Indication: 5.2" Color Touch Screen, Resolution 640*480
Resolution: 1hv
Max. Height Of Specimen: 150mm
Instrument Throat: 125mm
Packing Dimension: 610*450*770mm
Gross/Net Weight: 50/45kg
Type: Vickers Hardness Tester
Measuring Range: HV
Application: Metal
Standard: ISO

Product Description

Software Control Semi-Automatic Vickers Hardness Test Instrument with Touch Screen, which equips with motorized X-Y platform, automatic control and measuring software MV-500 and high definition USB camera, to realize automatic vickers measurement.


Features:

1,Close-loop Control: Equips with close loop loading sensor, ensure loading force more precision, MV-500 control Software realize auto loading, dwell and unloading.

2, Auto Turret: Indenter and objectives switch by MV-500 control software

3, Motorized platform: Precision X-Y movement to realize specific position hardness measurement.

4, Auto Focus: Apply high resolution optic system and auto focus technology, MV-500 can realize auto focus and auto hardness evaluation only the specimen surface Ra<=0.8um.
Auto Measurement Software: MV-500 can control hardness tester and data communication, includes objectives and indenter switch, auto focus, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate depth and hardness curve, depth curve, error statistics, test times group statistics, generate EXCELL and WORD report.

5, Hardness Conversion: MV-500 has built in hardness conversion table by different standards, like ASTM E140, ISO18265, DIN50150, GB/T1172, can convert from HV to HRC, HRA, HBW, etc. ,

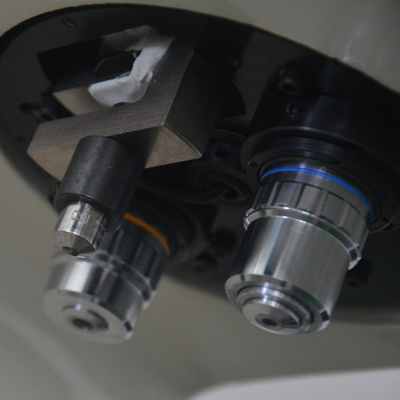

Motorized Turret

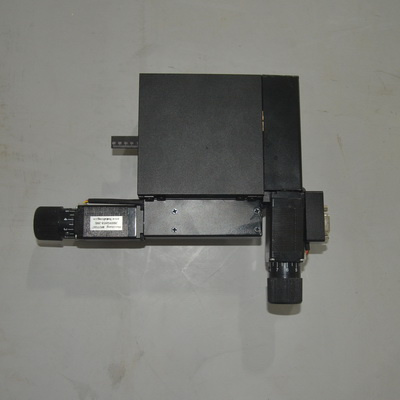

X-Y Motorized Turret


Application range:

1, Testing very thin materials like foils, thin pieces, coatings layers, etc;

2, Measuring hardness of the surface of a part, small parts or small areas;

3, Measuring individual micro-structures;

4, Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.


Technical Data:

NameAutomatic Vickers Hardness Tester
ModelAuto Vicky ZHV-10Auto Vicky ZHV-30Auto Vicky ZHV-50
Code#821-240A821-260A821-280A
Test ForceN2.94,4.9,9.8,
19.6,24.5,29.4,
49.098.0
4.9,9.8,19.6,
24.5,29.4,49.0,
98.0,
196,294
9.8,19.6,24.5,
29.4,49.0,98.0,
196,294,490
Kgf0.3,0.5,1,2,
2.5,3,5,10
0.5,1,2,2.5,3,
5,10,20,30
1,2,2.5,3,5,
10,20,30,50
TurretAuto Turret
Hardness MeasurementDigital eyepiece or Software MV-500
Data TransferringBlue Tooth, (Optional RS232)
Hardness Resolution1HV
Hardness Range8HV~2967HV
Loading ControlClose Loop Control (Auto Loading, Dwell, Unloading)
Magnification of Objectives10X/40X or 10X/20X
Hardness ConversionHRCHVHBSHBWHKHRAHRDHR15NHR30N,
HR45NHSHRFHR15THR30THR45THRB
Motorized X-Y PlatformDimension110x110mm; Travel25mmResolution1um
Control Software MV-500
Vision SystemHigh Definition USB Camera, 1X Camera Adapter
Computer ConfigurationP4:2.4G,80G Hard Disc,USB 2.0,PCI Slot,RS232
Measurement SoftwareAuto Vickers Measurement Software MV500
Digital Eyepiece10x Digital Eyepiece
Dwell Time1~60s Adjustable
LCD Screen5.2" Color Touch Screen, Resolution 640*480
Conversion StandardsASTM E140, ISO18265, DIN50150, GB/T1172
LanguageEnglish, Chinese
IlluminationHalogen lamp, brightness adjustable
Vertical Space150mm
Horizontal Space125mm
Power supplyAC220V/50Hz;AC110V/60Hz;
Dimension535*190*585mm
Packing Dimension610*450*770mm
Gross/Net Weight47Kg/43Kg
Executive StandardsGB/T4340,JIS Z2245,ASTM-E92,ISO6507
