Product Specifications
| Prod Model: |
X1505 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbide |
| Diameter: |
3-12mm |
| Type: |
Taper End Mill |
| Overall Length: |
35-45mm |
| Usage: |
Metal Machining |
| Precision: |
High Precision |
| Machine Type: |
Milling Machine |
| Flutes: |
2/4 Flutes |
| Suitable For: |
Wood, Plastic, Aluminum |
| Performance Classification: |
High-End CNC Machine Tools |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Numerical Control: |
CNC/MNC |
| Movement Method: |
Point to Point Control |
| Control Method: |
Closed-Loop Control |
Product Description

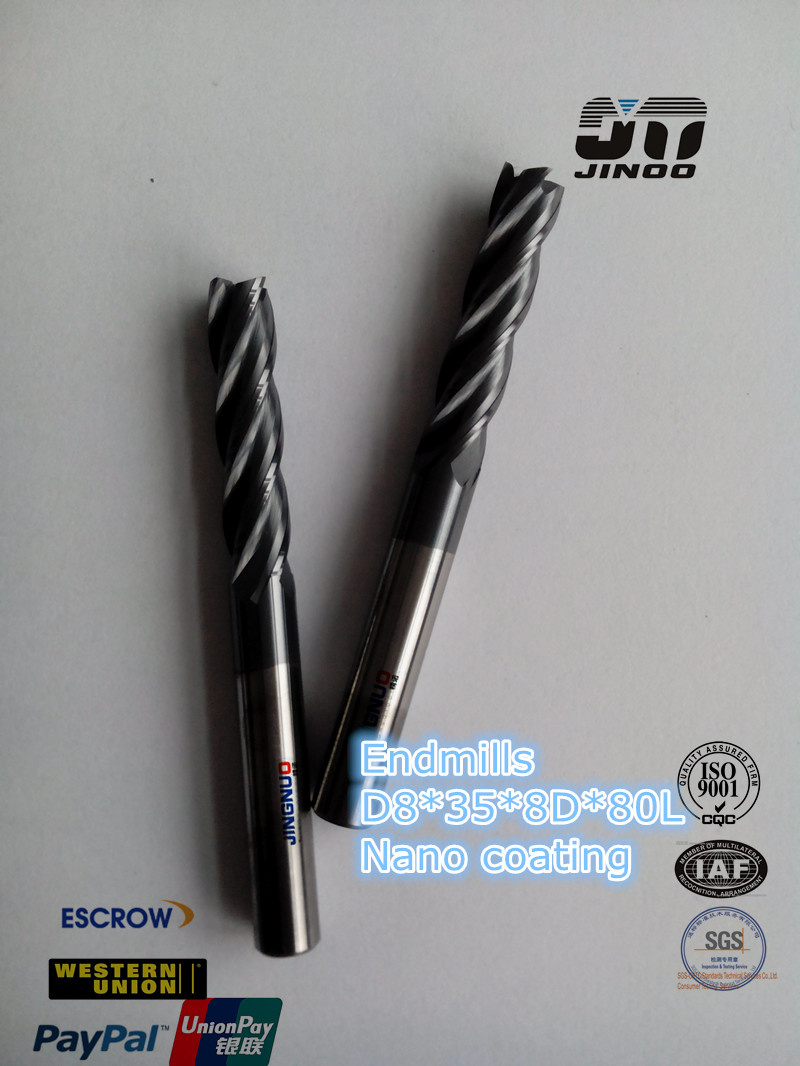

Solid Carbide Four Flute CNC Milling Tools Extra Long End Mills Milling Machine Tool
1. Our advantages:
1. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high -wearing feature.
2. Reduce the rudding coefficient & save the processing time, Specializing in high speed cutting of CNC milling machine.
3. Wide range of application: Suitable for copper, castiron, carbon steel, stainlees steel, Non-ferrous material and Heat-treated steel processing.
4. The shank and helix angle can be customized according to customers' requirements.
2. Speciafication & Preformance:
1. Chemical composition: 10%-12%Co-WC
2. Physical and machinal properties:
Density: 14.10-14.45g/cm3
Hardness: 91.5-92.5HRA
Flexaral strength: 3500-4000N/mm2
3. Organizational structure: WC mean Grain size: 0.5-0.6 um
4. ISO: K20-K40
3. Quality Assure
1. Best materials:
Our materials are the oriental materials at China and World.
China:
Zhuzhou, Nanchang, Zi gong, CB of Taiwan.
World:
Teagutec of Korea
Kennametal of America.
Guhring of Germany
2. The processing equipments:
1. Walter CNC machine from Germany
2. ANVA CNC machine from Australia
3. Strict Test:
Strict test is carried out on every procceduce during the whole course of the production. Each product inspected by precision inspected machine.
Advanced equipments:
1. Guhring detecting instrument from Germany.
2. Mitutoyo detecting instrument from Japan.
3. PARLEC tool presetter from America.
4. Passed ISO 9001: 2000 the quality authentication.
5. PACKING
1. One piece in a platic pipe. 10 pieces in a group.
2. Use the air bubble paper to encase the plastic pipe
3. Put the goods encased with air bubble paper in the carton
4. Other packing will be accpet accord your needs.
6. Delivery
According to the quantity. We are located in Changzhou city of Jiansu China. 5 km away formChangzhou Airport and 200 km away form Shanghai. The transportation is very convenient.
6. About us
We are the professional manufacturer of solid carbide tools. We have our own brand-JINOO. Our high quality and good service get many customer's high comments. All our staffs try our best to serve customers with high quality products and excellent after-sales service. Our purpose is that all the quality control and satisfying every customer.
By the way, we also supply non-standard end mills. If you are interested in our products, please kindly send the drawings, specification or detail size to us. We will try our best to offer you best services.
If you are interested in our products, please contact me at any time. Thanks!
| Diameter | Cutting Length | Shank Diameter | Overall Length |
| 1 | 3 | 4 | 50 |
| 1.5 | 4 | 4 | 50 |
| 2 | 6 | 4 | 50 |
| 2.5 | 7 | 4 | 50 |
| 3 | 8 | 3/4 | 50 |
| 3.5 | 10 | 4 | 50 |
| 4 | 11 | 4 | 50 |
| 4.5 | 13 | 6 | 50 |
| 5 | 13 | 5/6 | 50 |
| 6 | 15 | 6 | 50 |
| 8 | 20 | 8 | 60 |
| 10 | 25 | 10 | 75 |
| 12 | 30 | 12 | 75 |
| 14 | 45 | 14 | 100 |
| 16 | 45 | 16 | 100 |
| 18 | 45 | 18 | 100 |
| 20 | 45 | 20 | 100 |
| 22 | 45 | 22 | 100 |
| 25 | 45 | 25 | 100 |
Our factory is located at Xixiashu Town outside the West Gate of the Changzhou Wall to the Changzhou city, 5km distant to the airport to the Changzhou city, 3km distant to express highway between Shanghai city and Nanjing city and has the traffic facilities.
Our factory has imported several such as 5-axe numerical control grinder, from Walter of Germany. Use international high quality material. The quality of cutting tool reaches to international advanced level. The factory will provide the customer with high precision standard and nonstandard cutters. The solid carbide alloy cutlery, such as the drills, the milling cutters, the reamers, the boring cutters and the cuttersti process the holes are manufactured in the factory. And all sorts of the cutters whose mmanufacturing processes are very difficult. Can be designed and manufactured, the stainless steel wire. The cutters made in our factory are used to process the alloy steel, the stainless steel, the cast steel, the harden steel, ya suo ji, the nonferrous metals^etc.
The factory which manufactures the automobiles, the motorcycle engines, the carbuators and the mould industry are supplied with all sorts of the cutters made by our factory. The cutters made in our factory are mainly used in the processing centers to process the numerical control machine tools, the special machine and the high quality machine tool.
