Product Specifications
Prod Model: |
HHT3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty Period: |
1 and Half Year |
Material: |
ABS+Aluminum |
Operational Current: |
10 to 40 AMPS |
Operational Voltage: |
240V or 440V |
Dielectric Strength: |
1500VAC |
The Mode Of Transportation: |
Shipping, Air Freight |
Control Current: |
6-35mA |
Product Description
Product Description

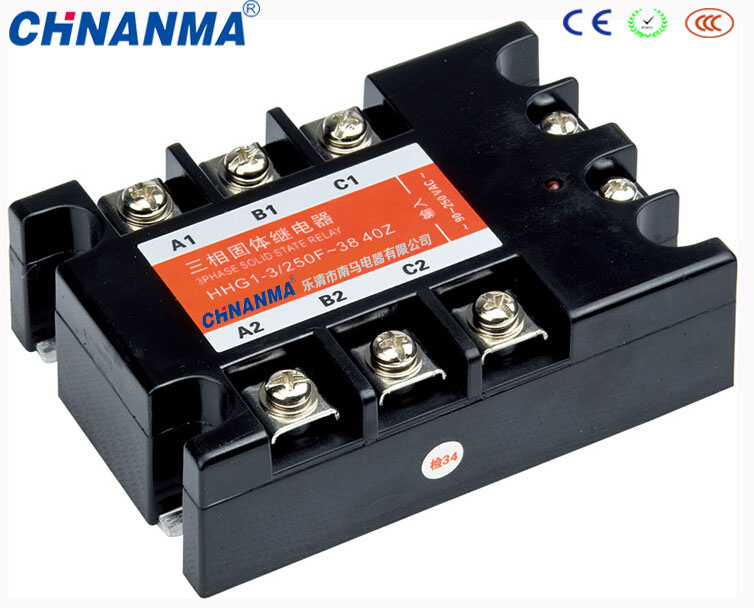

solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.
Model Explanation
Specification
Model | HHG5-1/032F-38 60-120A (SSR-DA) |
HHG5-1/032F-120 60-120A (SSR-DA) |
Control Voltage | 032:3-32VDC |
Control Current | 6-25mA |
Make-on Voltage | 3VDC |
Break-off Voltage | 1VDC |
Reverse Voltage | 32VDC |
Load Voltage | 38:40-440VAC;120V:40-1200VAC |
Load Current | 60,80,100,120A |
Instant Voltage | 38:1100VAC; 120:1600VAC |
Voltage Drop | <1.6VDC |
On-off Time | ≤10mS |
Leakage Current | ≤10mA |
Dielectric Strength | ≥2500VAC |
Insulation Resistance | 500MΩ,500VDC |
Ambient Temperature | minus30 to 80ºC |
Indicate Methods | LED |
Outline Dimension
Notes for Inquiry
Please specify the control voltage, load voltage, and load current so that we can quote for you soon.
