Product Specifications
| Prod Model: |
PNV-SH Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue |
| Control: |
AC-AC/DC-AC/AC-AC/DC-DC |
| Voltage: |
275V/690V |
| Size(W*L*H): |
45*58*29mm |
| Weight: |
110g |
| OEM: |
Available |
Product Description
PNV SSR-SH Series Solid State RelayFeaturesAll models the same compact dimensions;
Built-in MOV effectively absorbs extermal surges;
Operation indicaor (red LED) enables monitoring operation;
Protective cover for greater saftey;
Conform to IEC international electrical committee standard;
DC and AC, AC and AC, DC and DC, AC and DC input versions available.
Typical ApplicationsUniversal switch and thermal control,
Industrial automatic control,
Numerial-controlled machinery,
remote-control system.
MOQ: General product MOQ is one carton of packing. Please according the packing details, or please contact sales.
Delivery time: According your order 3-30 days for difference.
Payment: A. Full payment in advance by TT for less than 3000 USD order.
B: 30% advance payment, balance before shipment.
C: 80% advance payment, balance against the copy of B/L at sight.
D: None advance payment request if to be your agent in China, 2% commission of full order.
E: Negotiable.

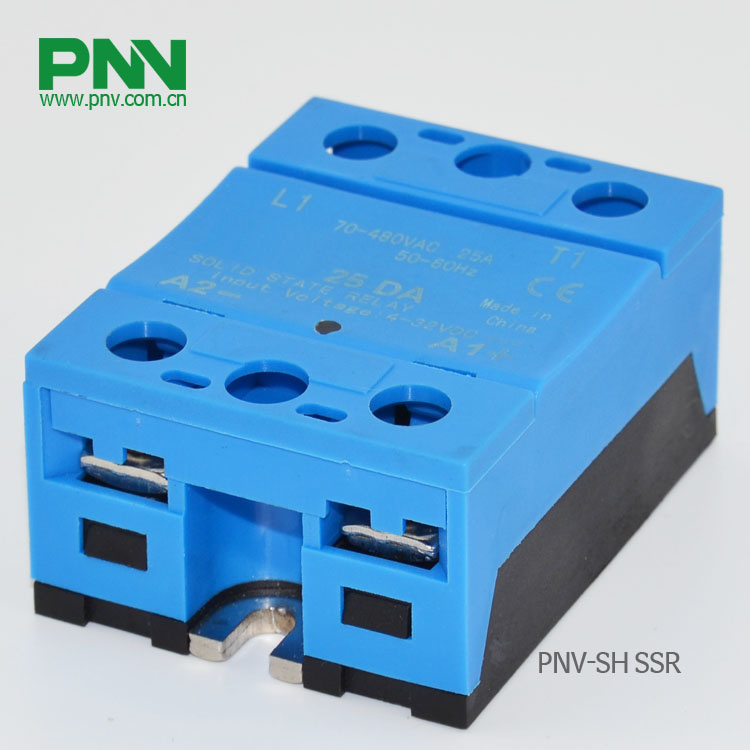

Product show:
Specifications sheet for order:
|
DC-AC 275 V SSR |
|
|
|
|
|
|
Reference |
Output
Current |
Output
Vpoltage |
Vpeak |
Control
Voltage |
Control
Current |
I2t |
|
DC-AC SH24D25 |
25A |
12-275VAC |
600V |
3.5-32V DC |
Ic<10mA |
600 A²S |
|
DC-AC SH24D35 |
35A |
12-275VAC |
600V |
3.5-32V DC |
Ic<10mA |
1250 A²S |
|
DC-AC SH24D50 |
50A |
12-275VAC |
600V |
3.5-32V DC |
Ic<10mA |
2500 A²S |
|
DC-AC SH24D75 |
75A |
12-275VAC |
600V |
3.5-32V DC |
Ic<10mA |
7200 A²S |
|
DC-AC SH24D95 |
95A |
12-275VAC |
600V |
3.5-32V DC |
Ic<10mA |
14400 A²S |
|
DC-AC SH24D125 |
125A |
12-275VAC |
600V |
3.5-32V DC |
Ic<10mA |
24000 A²S |
|
|
|
|
|
|
|
|
|
DC-AC 690 V SSR |
|
|
|
|
|
|
Reference |
Output
Current |
Output
Vpoltage |
Vpeak |
Control
Voltage |
Control
Current |
I2t |
|
DC-AC SH60D25 |
25A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
600 A²S |
|
DC-AC SH60D35 |
35A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
1250 A²S |
|
DC-AC SH60D50 |
50A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
2500 A²S |
|
DC-AC SH60D75 |
75A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
7200 A²S |
|
DC-AC SH60D95 |
95A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
14400 A²S |
|
DC-AC SH60D125 |
125A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
24000 A²S |
|
|
|
|
|
|
|
|
|
AC-AC 690 V SSR |
|
|
|
|
|
|
Reference |
Output
Current |
Output
Vpoltage |
Vpeak |
Control
Voltage |
Control
Current |
I2t |
|
AC-AC SH60D25 |
25A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
600 A²S |
|
AC-AC SH60D35 |
35A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
1250 A²S |
|
AC-AC SH60D50 |
50A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
2500 A²S |
|
AC-AC SH60D75 |
75A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
7200 A²S |
|
AC-AC SH60D95 |
95A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
14400 A²S |
|
AC-AC SH60D125 |
125A |
12-690VAC |
1600V |
3.5-32V DC |
Ic<10mA |
24000 A²S |
