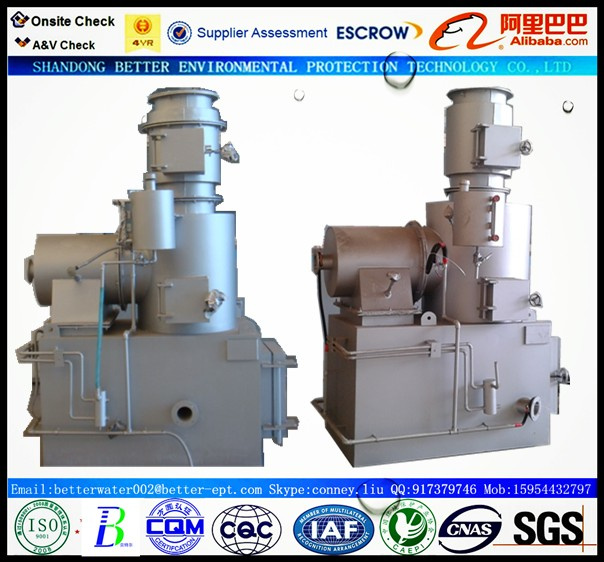

Waste Incinerator
1. Description
WFS Series Waste Incinerator is a kind of machine that was developed on the basis of Japanese technology, absorbs advantages of similar equipment both at home and abroad. It features unique and advanced merits with compact size, high burning effect, reasonable burning technology, high degree of non-harm etc. It is an ideal choice for waste treatment of hospitals, hotels and various areas.
2. Main Features
(1) Gasified pyrolysis incineration is used for burning many kinds of waste.
(2) Waste can be burned once everyday by gasified incineration.
(3) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust, dioxin etc.
(4) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
(5) Compact structure and small land occupation.
3.Technical Parameters:
WFS-30 Waste Incinerator
NO | Item | Spec. |
1 | Burning capacity | 20~30kg/time, 3~6 times per day |
2 | Incinerator size | 1.45m*0.95m*1.75m |
3 | Volume of incinerator | Gas room 0.5m³,Secondary burning room 0.3m³, Mixing combustion room 0.04m3 |
4 | Size of waste inlet hole | 480mm*600mm |
5 | Chimney | Outer diameter 280mm |
6 | Air blower | 0.37kw |
7 | Combustion burner | 0.11kw, fuel consumption 4-6kg/h |
8 | Re-combustion burner | 0.11kw, fuel consumption 4-6kg/h |
9 | Running-voltage | 220V or 380V |
10 | Weight | About 2300kg |
WFS-50 Waste Incinerator
NO | Item | Spec. |
1 | Burning capacity | 30-50kg/time, 3~6 times per day |
2 | Incinerator size | 1.8m*1.15m*3m |
3 | Volume of incinerator | Gas room 0.5m³,Secondary burning room 0.3m³, Mixing combustion room 0.04m3 |
4 | Size of waste inlet hole | 620mm*800mm |
5 | Chimney | Outer diameter 280mm |
6 | Air blower | 0.37kw |
7 | Combustion burner | 0.11kw, fuel consumption 4-10kg/h |
8 | Re-combustion burner | 0.11kw, fuel consumption 4-10kg/h |
9 | Running-voltage | 220V or 380V |
10 | Weight | About 4000kg |
WFS-150 Waste Incinerator
NO | Item | Spec. |
1 | Burning capacity | 100-150kg/time (3-6 times/day) |
2 | Incinerator size | 2m*1.4m*3.5m |
3 | Volume of incinerator | Gas room 1.4m³,Secondary burning room 0.7m³, Mixing combustion room 0.1m3 |
4 | Size of waste inlet hole | 760mm*960mm |
5 | Chimney | Outer diameter 300mm |
6 | Air blower | 0.5kw |
7 | Combustion burner | 0.11kw, fuel consumption 4-10kg/h |
8 | Re-combustion burner | 0.22kw, fuel consumption 7-14kg/h |
9 | Running-voltage | 220V or 380V |
10 | Weight | About 7000kg |
WFS-300 Waste Incinerator
NO | Item | Spec. |
1 | Burning capacity | 200-300kg/time (3-6 times/day) |
2 | Incinerator size | 2.2m*1.4m*3.8m |
3 | Volume of incinerator | Gas room 2.4m³,Secondary burning room 1.2m³, Mixing combustion room 0.16m3 |
4 | Size of waste inlet hole | 900mm*1100mm |
5 | Chimney | Outer diameter 400mm |
6 | Air blower | 1.1kw |
7 | Combustion burner | 0.22kw, fuel consumption 7-14kg/h |
8 | Re-combustion burner | 0.37kw, fuel consumption 10-20kg/h |
9 | Running-voltage | 220V or 380V |
10 | Weight | About 8000kg |
WFS-500 Medical Waste Incinerator
NO | Item | Spec. |
1 | Burning capacity | 300-500kg/time (3-6 times/day) |
2 | Incinerator size | 3m*2m*4.8m |
3 | Volume of incinerator | Gas room 3.5m³,Secondary burning room 1.5m³, Mixing combustion room 0.3m3 |
4 | Size of waste inlet hole | 1080mm*1280mm |
5 | Chimney | Outer diameter 460mm |
6 | Air blower | No.1: 1.1kw No.2: 0.55kw |
7 | Combustion burner | 0.22kw, fuel consumption 7-14kg/h |
8 | Re-combustion burner | 0.37kw, fuel consumption 15-26kg/h |
9 | Running-voltage | 220V or 380V |
10 | Weight | About 13000kg |
If you are interested in our products, pls feel free to contact me.
Warmly welcome to contact me :
* Mobile : 86-15954432797
I will answer to you in 24 hours. ^__^.
Shandong Better Environmental Protection Technology Co., Ltd. Facing the coastal city Qingdao on the east is ISO9000 Company, specialized in technical research, design, production, and construction with fixed asset 50 million RMB. The company covers an area of 33000 m2 with 186 employees.
Broad market has well confirmed the strength of "Better". The products are highly appreciated in industrial and municipal sewage treatment area for reliablequality. Now the products are not only widely used in domestic China but also exported to more than 30 countries, including Japan, Pakistan, South America, Africa and Southeast Asia.
Technology is No. 1 productive force. Better cooperate with Tsinghua University Environment Institute and other renowned domestic professional institutes with a strong ability of non-standard design, manufacture and service. It has been a member of Chinese Environmental Protection Industry.
Awards are our history which inspires BETTER to be better. The company was awarded of "China Patent Shandong Star Enterprise" "Provincial High-tech Enterprise" "The State Science and Technology Commission on Environmental Protection Project Technology Promotion Supporting Institution" "Quality Service Prestige AAA Enterprise" " Abiding by Contracts and Keeping Promises Enterprise" and other rewards. Besides, the company has got the brand "BETTER" as "China Famous Brand".
"There is no best, only Better" We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
