Product Specifications
| Prod Model: |
SP 50/8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturers: |
Yes |
| Type: |
Rotary Encoder |
| Working Principle: |
Incremental |
| Readout Mode: |
Contact |
Product Description
Fuction and use

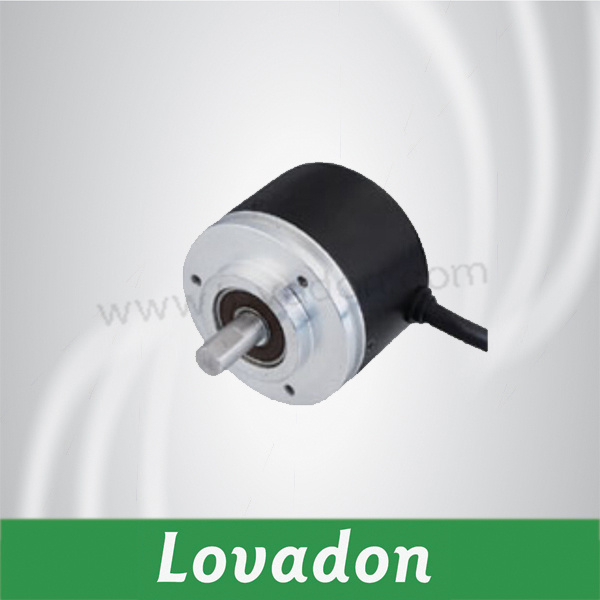

Outer diameter is 50mm, thinkness is only 38, axes diameter is 8mm.
Micromation and precision type, steady capability.
Many output circuit can select, out form is socket, cable side out and back out.
Apply for industry machine, automatic control and so on.
Type instruction
SP 50/8-100 BZ - 8~30 F G 2
Basis type - SP
Main diameter 50mm - 50
Axes diameter 8mm - 8
Pulse count - 100
Two-phase with positive base point - BZ
Power voltage: +8v~+30v - 8~30
Out circuit form F: Push-pull output - F
Out form G: Cable side out - G
Cable length 2m - 2
Pusle/ revolution (note: The plastic code plate with vibration resist and inrush-resist, metal code wheel with high temperture resist, and glass code wheel with high precisiom):
10 20 30 50 60 100 120 125 150 180 200 250 256 300 360 400 500 512 600 720 800 900 1000 1024 1200 1250 1500 1800 200 2048 2400 2500 3000 3600 or according customer request.
Cautions: (1) signals connect according to the cable color in the list, shield line had connected with encoder shell actual connection connect by encoder mark.
(2) stardard length of output cable is 1m, the longest could extend to 50m.
Machine parameter
Radial load - ≤ 40N
Axial load - ≤ 20N
Start torque - ≤ 3*10-3N. M
Tiptop rotate speed - 6000r/min
Running inertia - 30g/cm²
Allowable acceleration - 1*104rad/S²
Weight - About 0.2kg
Enviroment parameter
Concussion resist - 1000m/S² , 6ms
Vibration resist - 100m/s² , 10~200HZ
Working temperature - 20° C ~ 50° C
Storing temperature - -20° C~ + 80° C
Relatively humidity - ≤ RH85% No incing
Protect grade - IP50
| Electric parameter |
| Output circuit | Driver L, H | C, E, F | Driver T |
| Power voltage | +5v ±5% | +5V or +8V~30V | +5V or +8V~30V |
| Current consumption | ≤150mA | ≤60mA | ≤150mA |
| Allowable load | 20mA | 30mA | 20mA |
| Signal high waveform | ≥2.5V | ≥VCC*70%V | ≥VCC*70%V |
| Signal low waveform | ≤0.5V | ≤0.5V | ≤0.5V |
| Rise / fall time | ≤100ns | ≤1us | ≤100ns |
| Response frequency | 150KHz | 150KHz | 150KHz |
| Wire List |
| Output signal | CEF Type | LHT Type |
| Cable color | Seven core socket | Cable color | Seven core socket |
| +V | red | 1 | red | 1 |
| 0V | black | 4 | black | 4 |
| SIG A | green | 3 | green | 5 |
| SIG B | white | 5 | white | 3 |
| SIG Z | yellow | 2 | yellow | 2 |
| SIG A | - |
| brown | 7 |
| SIG B | - |
| grey | 6 |
| SIG Z | - |
| orange | 8 |
| G | Copper screen | 7 | Copper screen | 9 |
