Product Specifications
| Prod Model: |
B05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Type: |
CNC |
| Screen Size: |
6-10'' |
| Installation: |
Horizontal |
| Application: |
Industrial |
| Power Supply Type: |
ATX |
| Accessories: |
All-steel Chassis |
Product Description

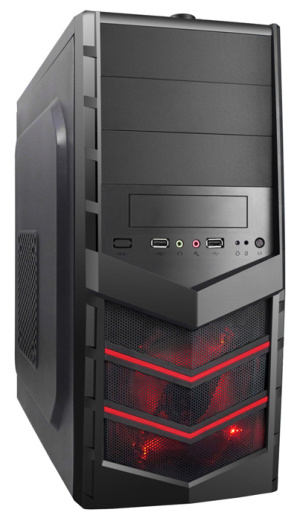

Basic model no.: B series type mid tower atx case with 3 CD doors
ATX structure size (LxWxH): 375*180*410mm
Case size (LxWxH): 405*196*420mm (with front panel & legs & side)
Package size (LxWxH): 455*225*462mm
5.25" CD position: 3
3.5" FDD position: 1
3.5" HDD position: 2 (if there is no FDD, there are 3*HDD positions)
2.5" SSD position: 2
PCI slot: 7
Front panel: USB2.0/USB1.0 USB1.0*2/HD audio 2*USB2.0 (optional)
USB 3.0: n/a optional
E-SATA: n/a
Reset button: yes
2-in-1 card reader depends on the design of front panel
Fan position front panel: 12cm fan (optional)
Rear panel: 8/12cm fan (optional)
Side panel: 12/14cm fan (optional)
Top: n/a
Bottom: n/a, other: n/a
Material of front panel: ABS
Intel TAC 2.0: n/a
Material: SPCC black
SSD position: yes
Transparent side panel: yes (optional)
G.W.: 3.6kg, N.W.: 2.9kg
Qty in a 40ft HQ: 1395pcs
