Product Specifications
| Prod Model: |
D03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Type: |
CNC |
| Screen Size: |
6-10'' |
| Installation: |
Horizontal |
| Application: |
Industrial |
| Power Supply Type: |
ATX |
| Accessories: |
All-steel Chassis |
Product Description

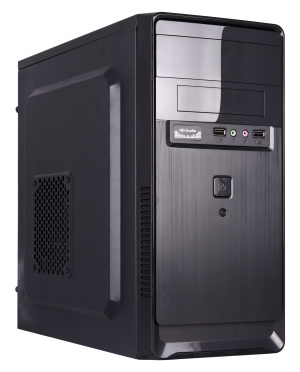

Basic model No.D series type: Mid tower Micro-ATX Case
Structure size (LxWxH mm) 350*165*355
Case size: 380*183*368 (LxWxH mm) (with front panel & legs & side)
Package size (LxWxH mm) 390*208*430
5.25"CD position: 1
3.5"FDD position: 1
3.5"HDD position: 2(If there is no FDD, there are 3*HDD positions.)
2.5"SSD position: 5
PCI Slot: 4
Front panel: USB2.0/USB1.0 USB1.0*2/HD audio 2*USB2.0 (optional)
USB3.0 n/a optional
E-SATA n/a
Reset button: yes
2-in-1 card reader depends on the design of front panel
Fan position:
Front panel 12cm fan (optional)
Rear panel 8/9cm fan (optional)
Side panel 12cm fan (optional)
Top n/a
Bottom n/a
Other n/a
Material of front panel: ABS
Intel TAC2.0 n/a
Material: SGCC/SPCC black(optional)
Transparent side panel yes(optional)
G.W.: 3.2KGS, N.W.: 2.5kgs
Q'ty in a 40'HQ: 1950 pcs
